BDS 19-24 RAM 3500 4WD,DIESEL,NO OVERLOAD,RADIUS 3" LIFT,SPRINGS,NITRO SHOCKS

BDS 19-24 RAM 3500 4WD,DIESEL,NO OVERLOAD,RADIUS 3" LIFT,SPRINGS,NITRO SHOCKS

STU BDS1655H

$1,840.60
$1,840.60
View full details

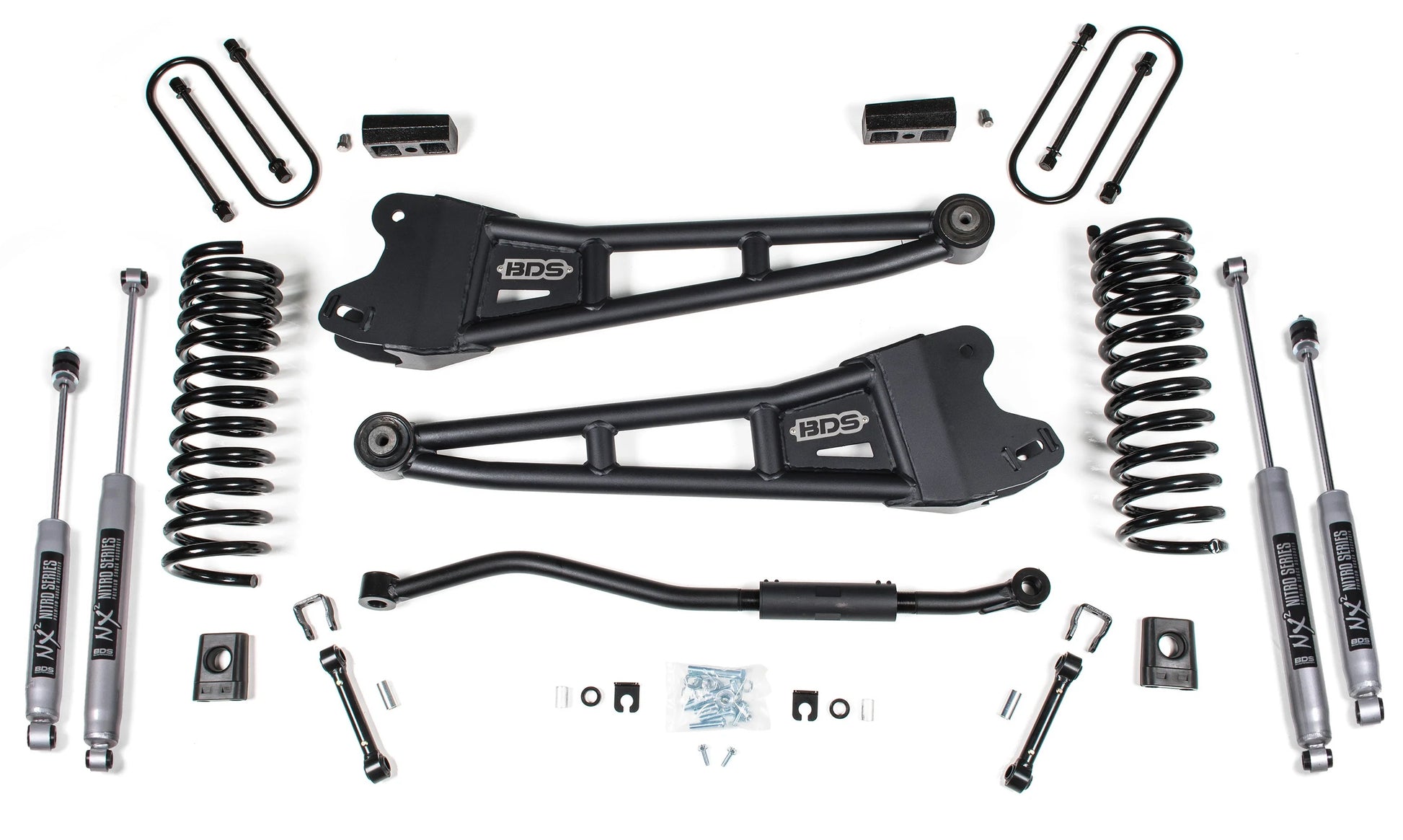

Brand New BDS Suspension 3" Radius Arm Lift Kit with Nitro Shocks & Coil Springs (Part #BDS1655H).

Level out and take your RAM 3500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel without Factory Rear Overload Leafs

Note:

  • Will not fit rear air-ride equipped models.
  • Diesel models only.
  • If you experience front driveline vibration, a T-case indexing ring is available for 6-bolt and 8-bolt equipped models. Be sure to select the correct one for your application.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5 in. Backspace or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength dual rate coil springs for a great ride on any terrain
  • Front adjustable track bar allows you to re-center axle
  • Front sway bar correction to maintain handling performance

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 3"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here and here.
