BDS 2013-2018 RAM 3500 4WD,AIR RIDE,DIESEL,6" LIFT,4-LINK,8-BOLT,NITRO SHOCKS

BDS 2013-2018 RAM 3500 4WD,AIR RIDE,DIESEL,6" LIFT,4-LINK,8-BOLT,NITRO SHOCKS

STU BDS1650H

$2,853.55
$2,853.55
View full details

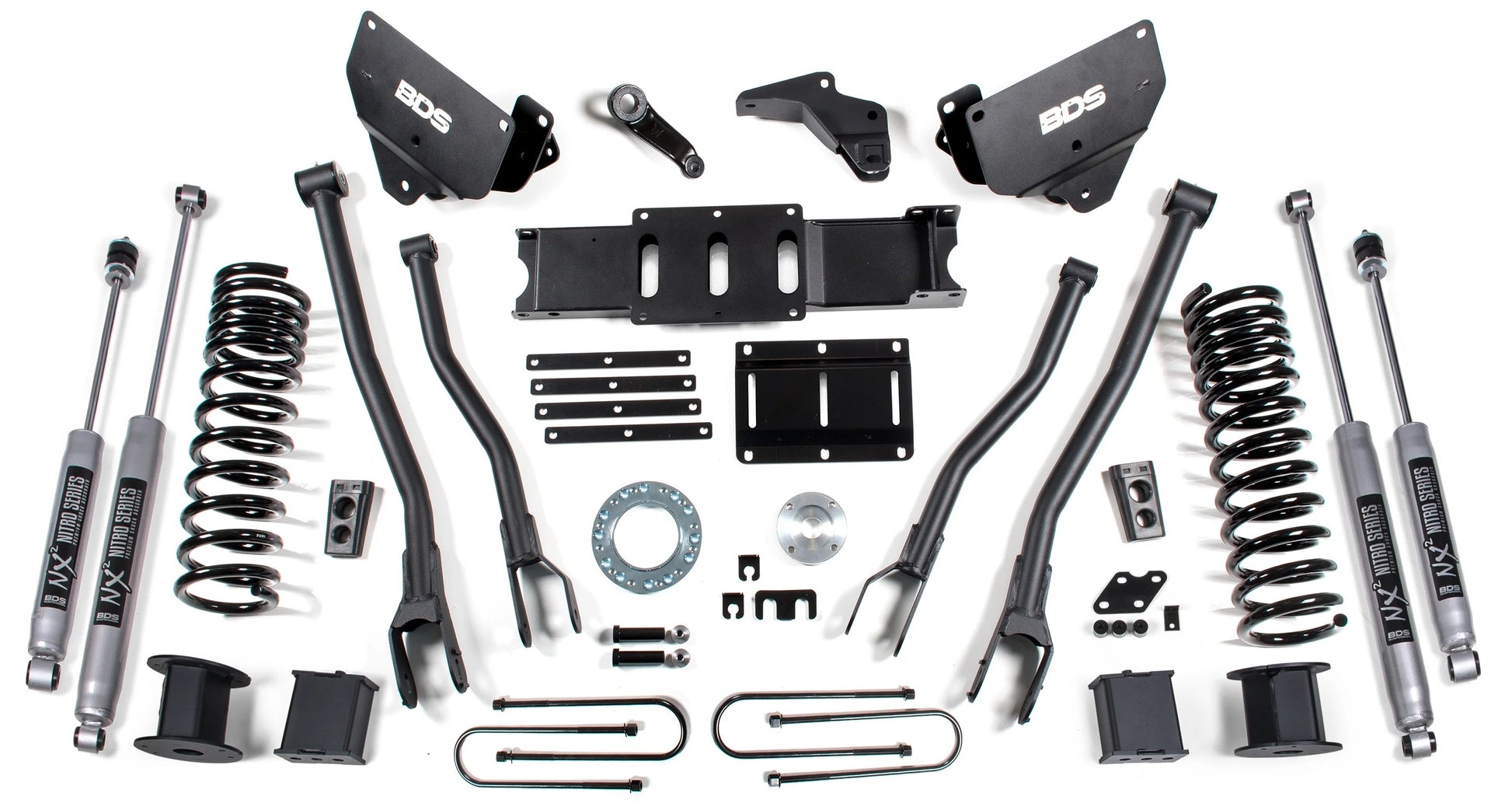

Brand New BDS Suspension 6" Lift Kit with Nitro Shocks, 4-Link, 8-Bolt Indexing Ring & Coil Spacers (Part #BDS1650H).

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Works only on trucks equipped with factory rear air ride. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel with Rear Air Ride

Notes:

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt) in this kit. Otherwise order the 6-bolt kit.
  • The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
  • Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  • DRW models fit inner wheel clearance to the upper U-bolt plate on 6" kits
  • Fits OE equipped air ride systems only
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 17 x 9 and 5.625 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spacer
  • Front Lift Height: 6"
  • Rear Lift Method: Coil Spacer
  • Rear Lift Height: 6"
You can view and download the assembly instruction booklet here and here.
