BDS 2013-2018 RAM 3500 4WD,AIR RIDE,DIESEL,6" LIFT,4-LINK,8-BOLT,FOX 2.0 SHOCKS

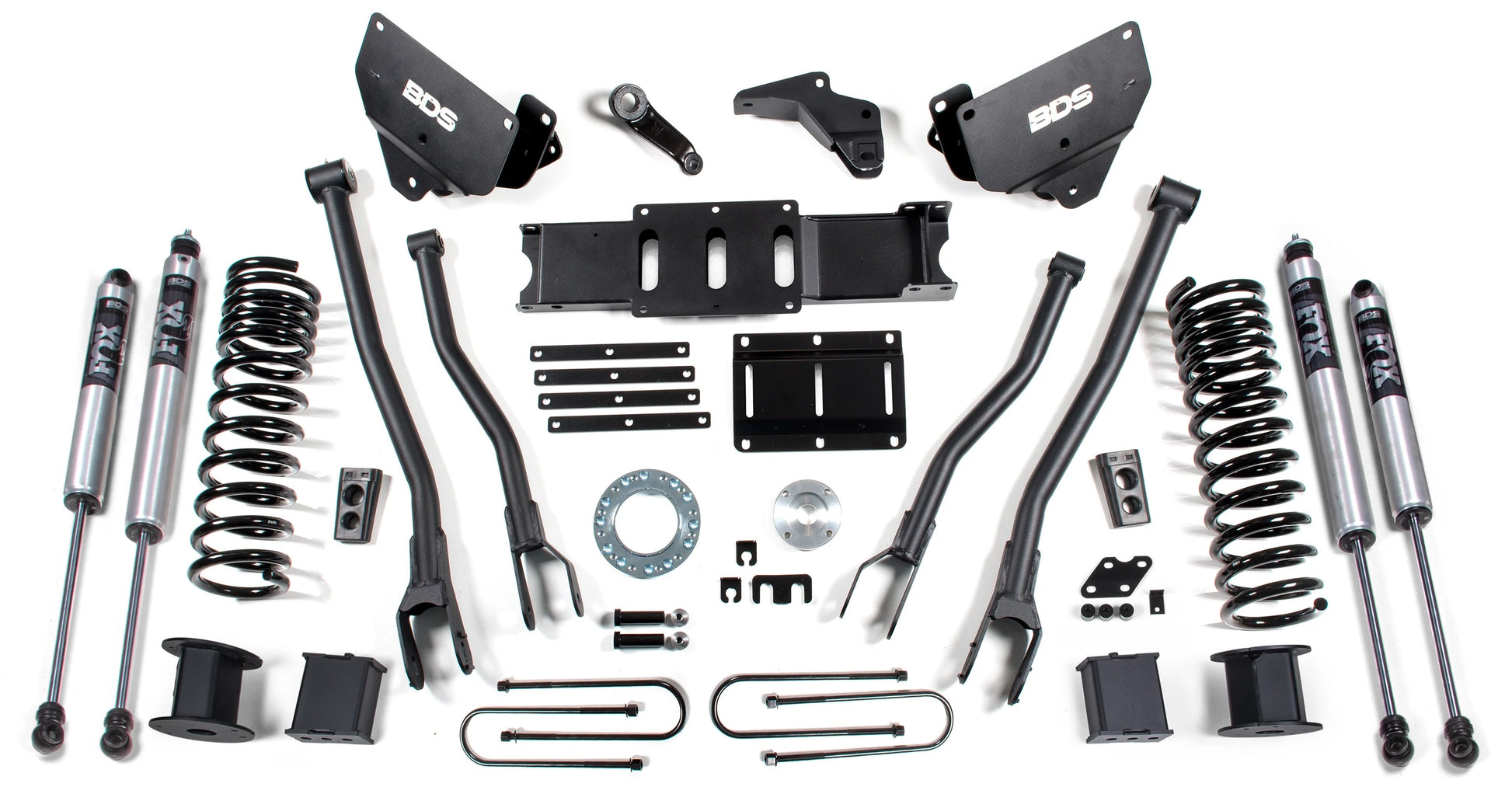

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Performance Shocks, 4-Link, 8-Bolt Indexing Ring & Coil Spacers (Part #BDS1650FS).

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Works only on trucks equipped with factory rear air ride. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of shocks.

Fits:

• Ram:
• 2013-2018 3500 4WD Diesel with Rear Air Ride

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt) in this kit. Otherwise order the 6-bolt kit.
• The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
• Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
• DRW models fit inner wheel clearance to the upper U-bolt plate on 6" kits
• Fits OE equipped air ride systems only
• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 17 x 9 and 5.625 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
