BDS 2013-2018 RAM 3500 4WD,REAR AIR RIDE,GAS,4" LIFT KIT,SPRINGS,NITRO SHOCKS

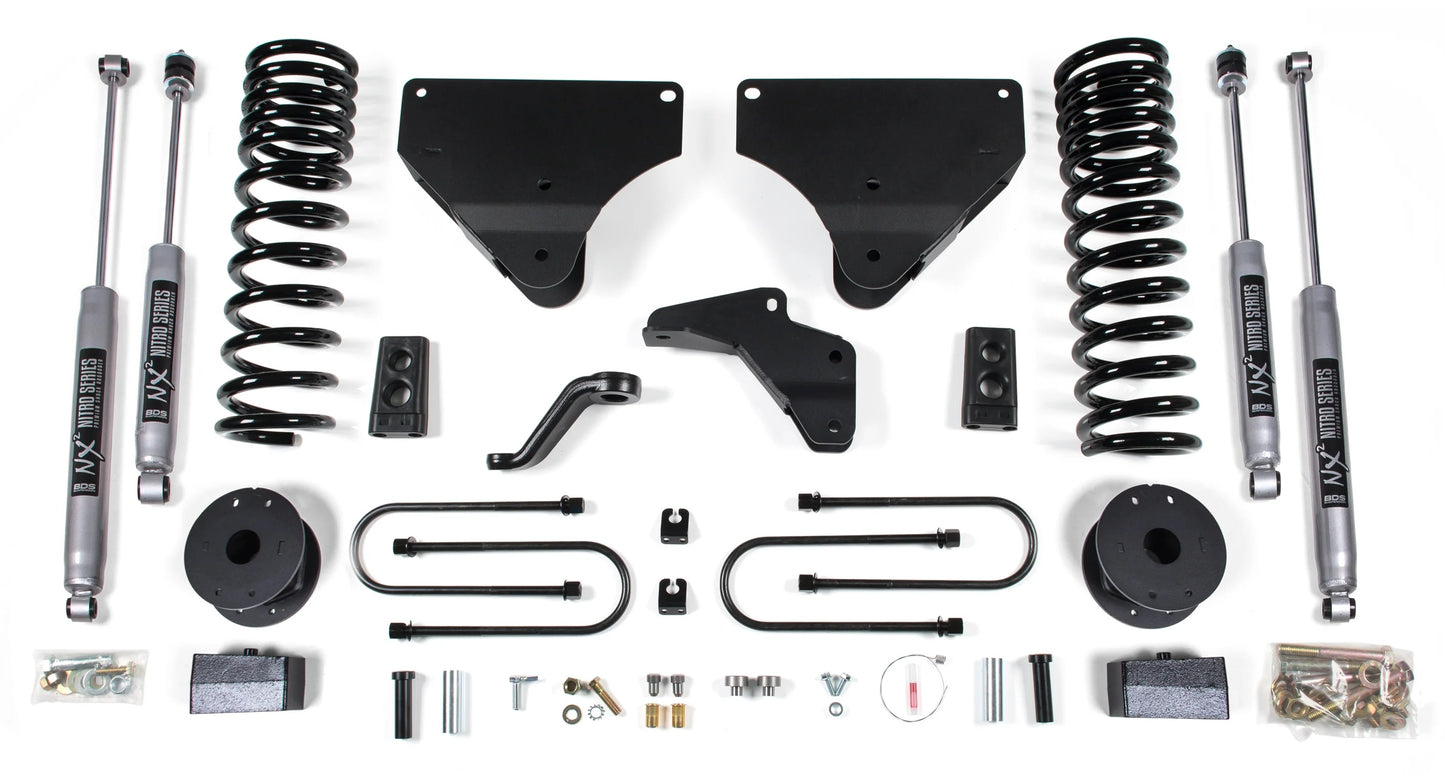

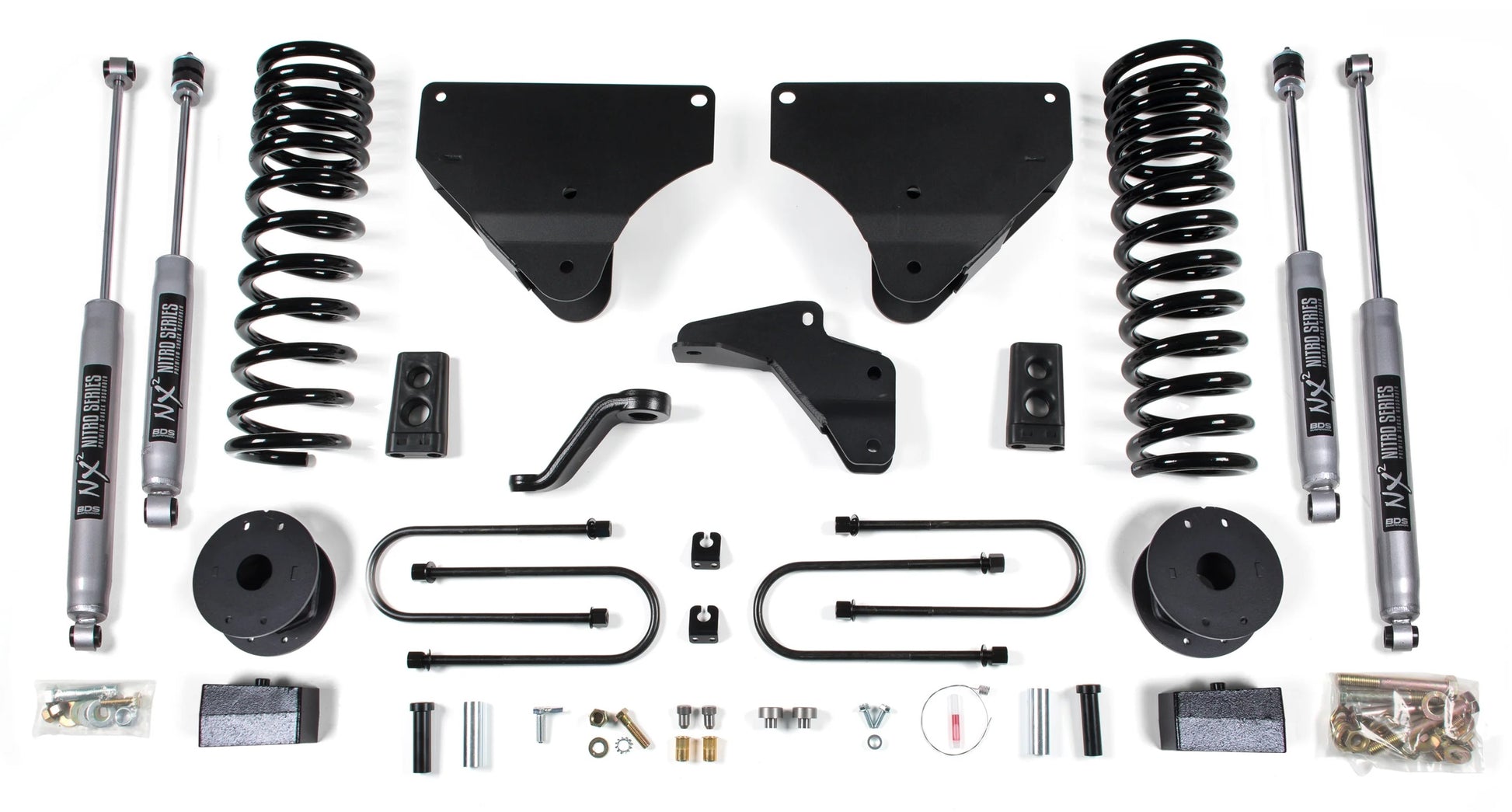

Brand New BDS Suspension 4" Lift Kit with Nitro Shocks, Coil Springs, & Coil Spacers (Part #BDS1645H).

Improve the ride and style of your factory rear air ride equipped 2013-2018 RAM 3500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of shocks.

Fits:

• Ram:

  • 2013-2018 3500 4WD Gas with Rear Air Ride

Notes:

• 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well.
• The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
• Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 17 x 9 and 5.625 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 4"
• Rear Lift Method: Coil Spacer
• Rear Lift Height: 3"

You can view and download the assembly or instruction booklet here and here.
