BDS 2014-2018 RAM 2500 POWER WAGON 4WD,GAS,4" LIFT KIT,SPRINGS,NITRO SHOCKS

BDS 2014-2018 RAM 2500 POWER WAGON 4WD,GAS,4" LIFT KIT,SPRINGS,NITRO SHOCKS

STU BDS1636H

$2,013.60
$2,013.60
View full details

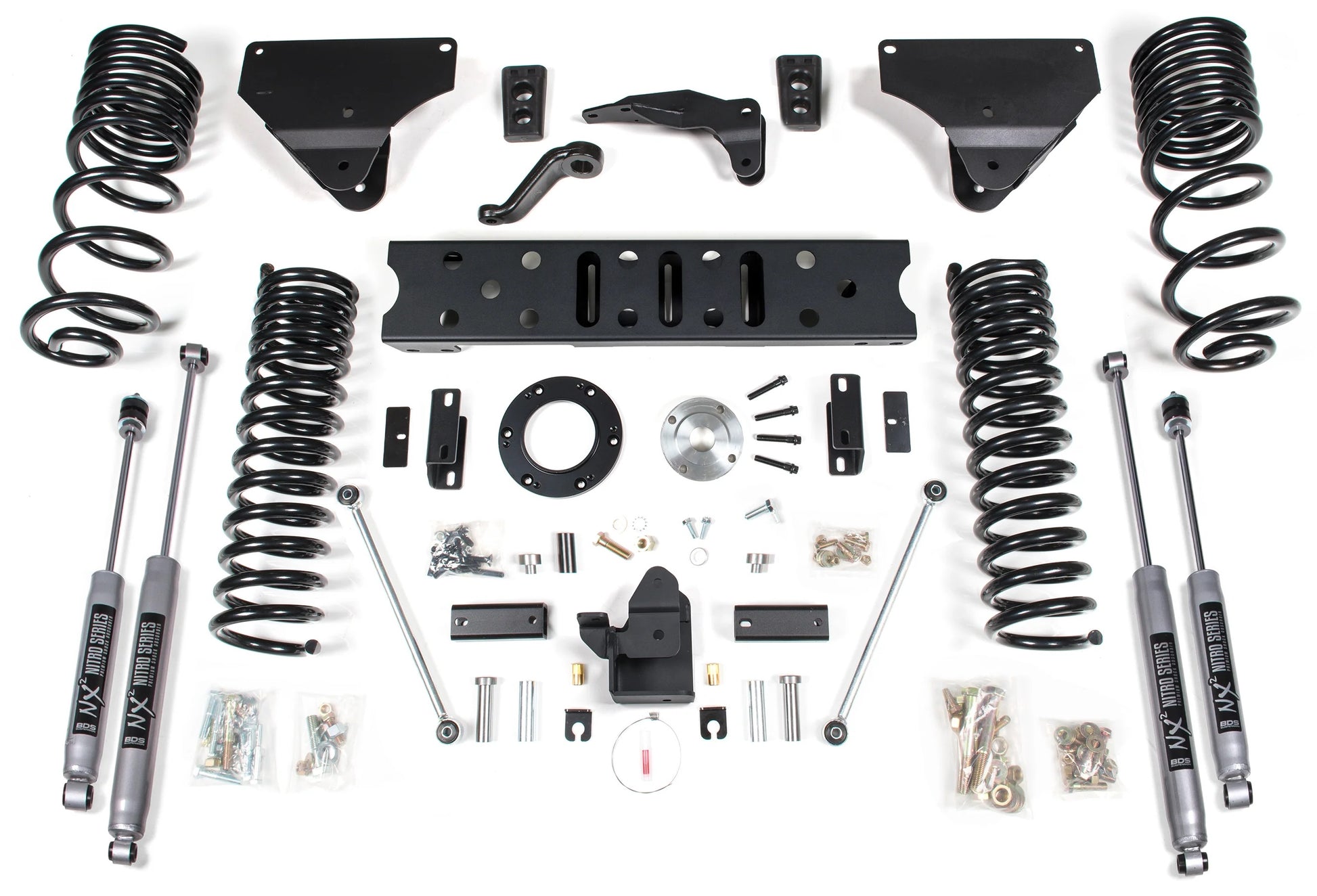

Brand New BDS Suspension 4" Lift Kit with Nitro Shocks & Coil Springs (Part #BDS1636H).

Take your 2014-2018 RAM 2500 Power Wagon to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes specific Pro-Ride coil springs, heavy-duty radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks.

Fits:

  • Ram:
    • 2014-2018 2500 Power Wagon 4WD

Notes:

  • Requires exhaust modification to clear front driveshaft at full suspension droop, steps outlined in instructions.
  • Compatible with factory rear power hop damper.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here and here.
