BDS 2014-2026 RAM 2500 4WD,REAR AIR RIDE,2" LEVELING KIT,FOX 2.0 SHOCKS

Brand New BDS 2" Leveling Kit with Coil Spacers & Fox 2.0 Performance Shocks (Part #BDS1635FS).

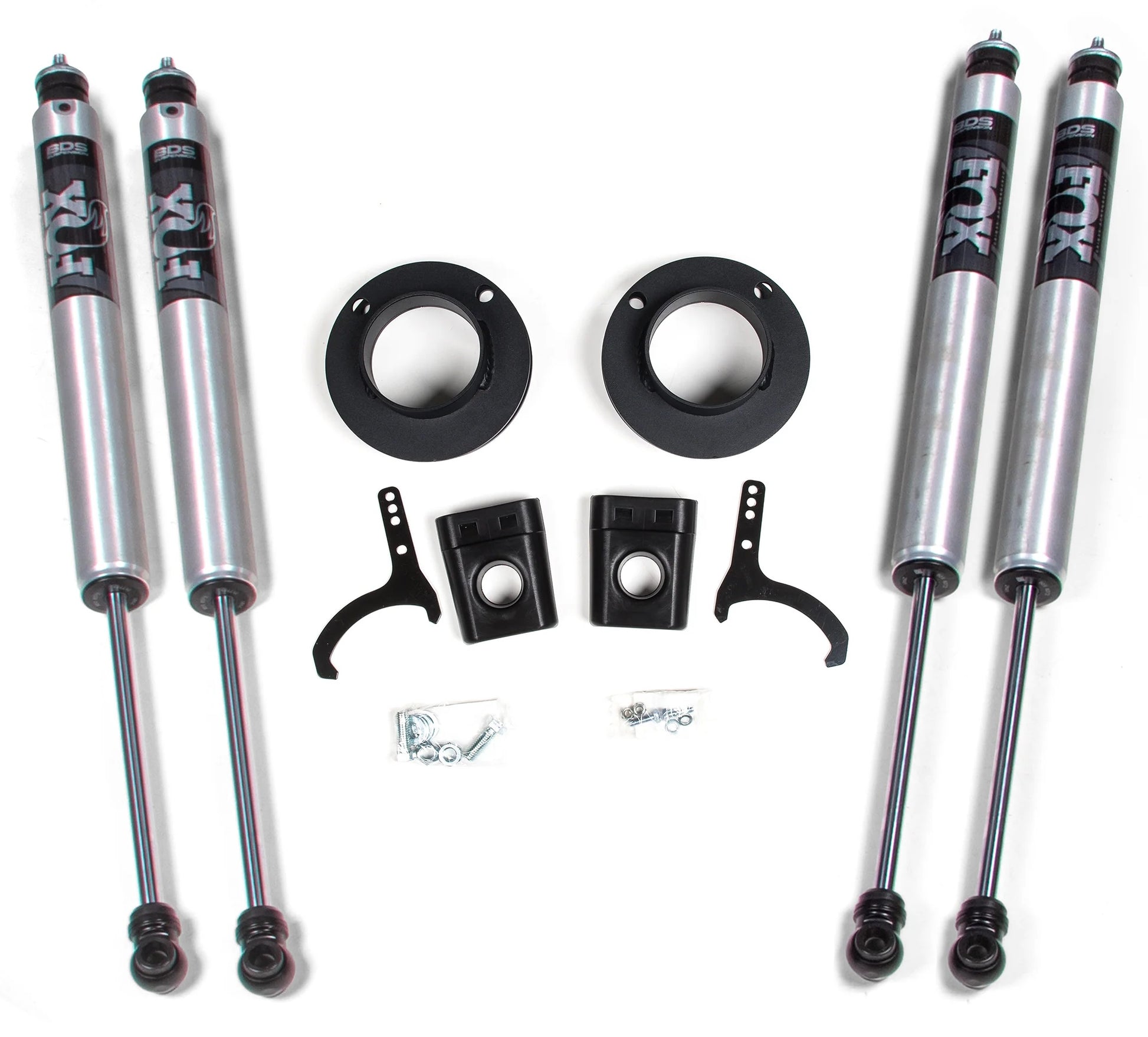

Level the front of your RAM 2500 4WD air-ride-equipped truck by installing this 2-inch leveling kit from BDS. Designed to improve stance, this kit includes everything necessary to set your vehicle up right with clearance for up to 35" tires at an affordable price. The lift kit includes steel-fabricated coil spacers, extended bump stops, an air ride sensor bracket, and custom-tuned shocks.

Compatible with:

• Ram:

  • 2014-2026 2500 4WD with Rear Air Ride

Notes:

• Fits OE Equipped Air Ride systems only
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• Easy, 100% Bolt-on installation
• Maintains factory like ride quality

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spacer
• Front Lift Height: 2"
• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
