BDS 2014-2018,2025 RAM 2500 4WD DIESEL,3" LIFT KIT W/ RADIUS ARMS,FOX 2.5 ELITE

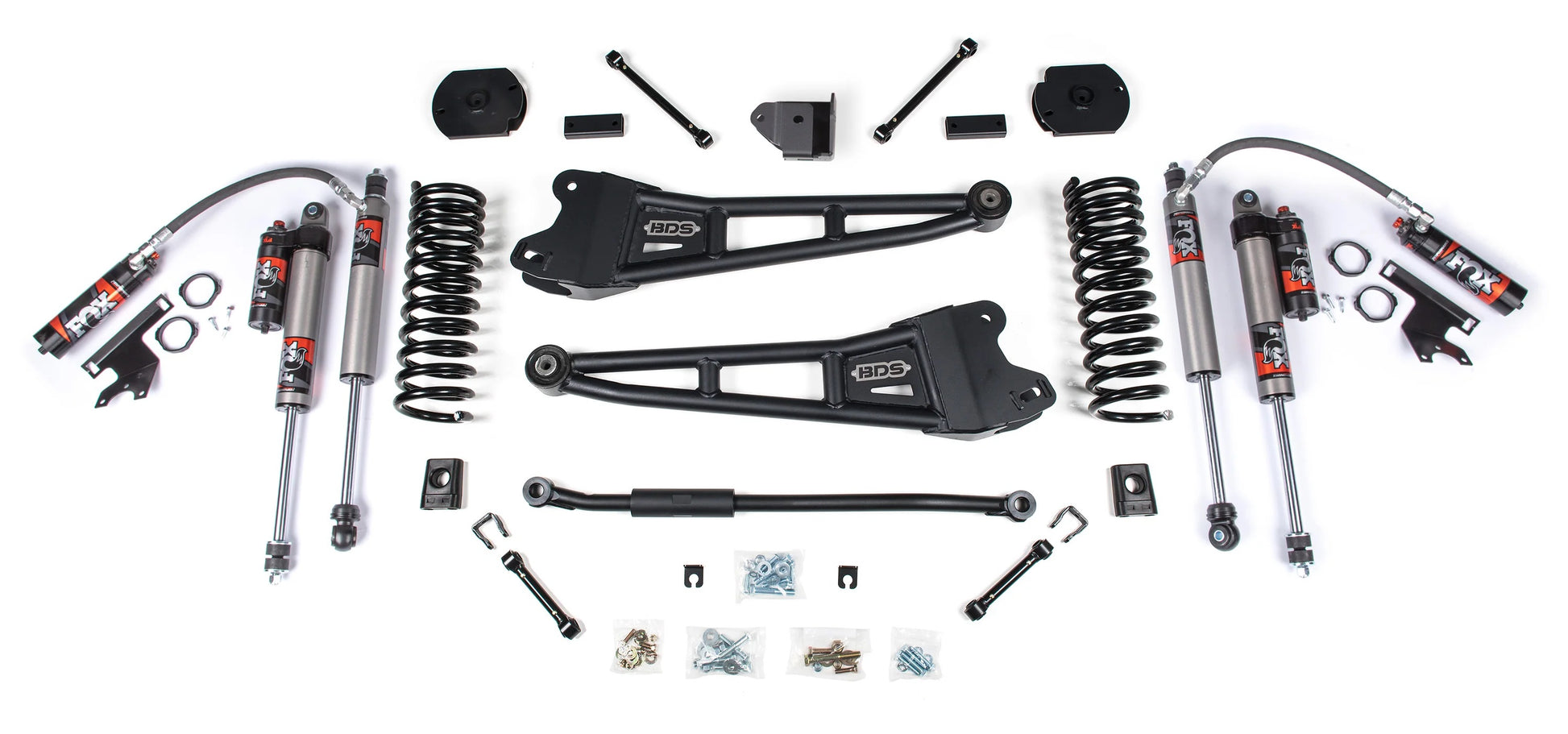

Brand New BDS Suspension 3" Radius Arm Lift Kit with Front & Rear FOX 2.5 Performance Elite Shocks (Part #BDS1624FPE).

Level out and take your 2014-2018 and 2025 RAM 2500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated coil spacer, track bar relocation bracket, and bump stops.

Compatible with:

• Ram:

  • 2014-2018, 2025 2500 Diesel 4WD


Notes:

• Not compatible with factory rear air ride vehicles
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• Heavy duty tubular radius arms improve strength, handling and caster control

• Front high strength progressive rate coil springs for a great ride on any terrain

• Front adjustable track bar allows you to re-center axle

• Forged drop pitman arm to correct steering angles

• Front sway bar correction to maintain handling performance

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 3"

• Rear Lift Method: Spacer
• Rear Lift Height: 1.25"

You can view and download the assembly or instruction booklet here, here, here, and here.
