BDS 2013-2018 RAM 3500 4WD,DIESEL,3" RADIUS ARM LIFT,BLOCK,FOX 2.5,HYDRO BUMP

BDS 2013-2018 RAM 3500 4WD,DIESEL,3" RADIUS ARM LIFT,BLOCK,FOX 2.5,HYDRO BUMP

STU BDS1622PESB

$6,690.65
$6,690.65
View full details

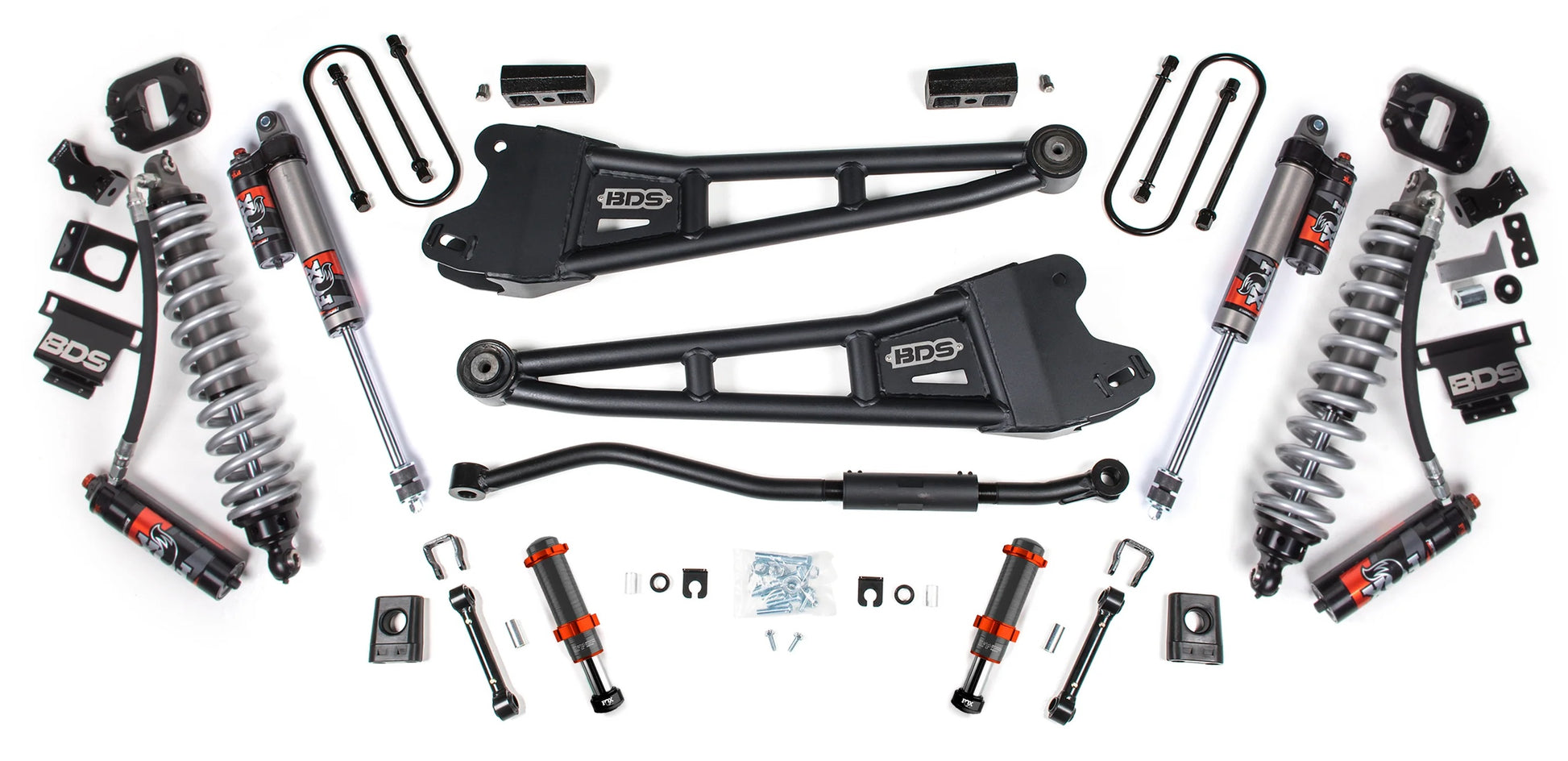

Brand New BDS Suspension 3" Radius Arm Lift Kit with Fox 2.5 Performance Elite Coilovers, Fox 2.5 Rear Shocks, Block Kit, & Fox 2.0 Hydro Bump Stops (Part #BDS1622PESB).

Built to take abuse and ask for more, the BDS 3" Radius Arm Lift Kit for RAM 3500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS radius arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets. Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel

Notes:

  • Will not fit air ride equipped models
  • Diesel models only
  • Some trucks are equipped with rear dual overload springs. Order UBT4068 QTY 4 required to retain top overload leafs.
  • If experiencing drive line vibration Indexing rings are available for 6 and 8 bolt equipped models.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Fox 2.5 Performance Elite Coilover mounts in the factory coil spring bucket.
  • Fox 2.5 Performance Elite rear shocks.
  • Optional Auxiliary front shock absorber.
  • Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.
  • Front adjustable track bar which allows the front of the truck to be re-centered after lifted.
  • Front sway bar correction to maintain handling performance.

FOX 2.0 Factory Race Series Hydro Bump Stop:

  • Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension.
  • Ideal for the avid off-roader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 3"
  • Rear Lift Method: Block Kit
  • Rear Lift Height: 2"
You can view and download the assembly instruction booklet here, here, here, and here.
