BDS 2013-2018 RAM 3500 4WD,DIESEL,3" RADIUS ARM LIFT KIT,BLOCKS,FOX 2.5 SHOCKS

BDS 2013-2018 RAM 3500 4WD,DIESEL,3" RADIUS ARM LIFT KIT,BLOCKS,FOX 2.5 SHOCKS

STU BDS1622FPE

$5,142.70
$5,142.70
View full details

Brand New BDS Suspension 3" Radius Arm Lift Kit with Fox 2.5 Performance Elite Shocks & Block Kit (Part #BDS1622FPE).

Level out and take your 2013-2018 RAM 3500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

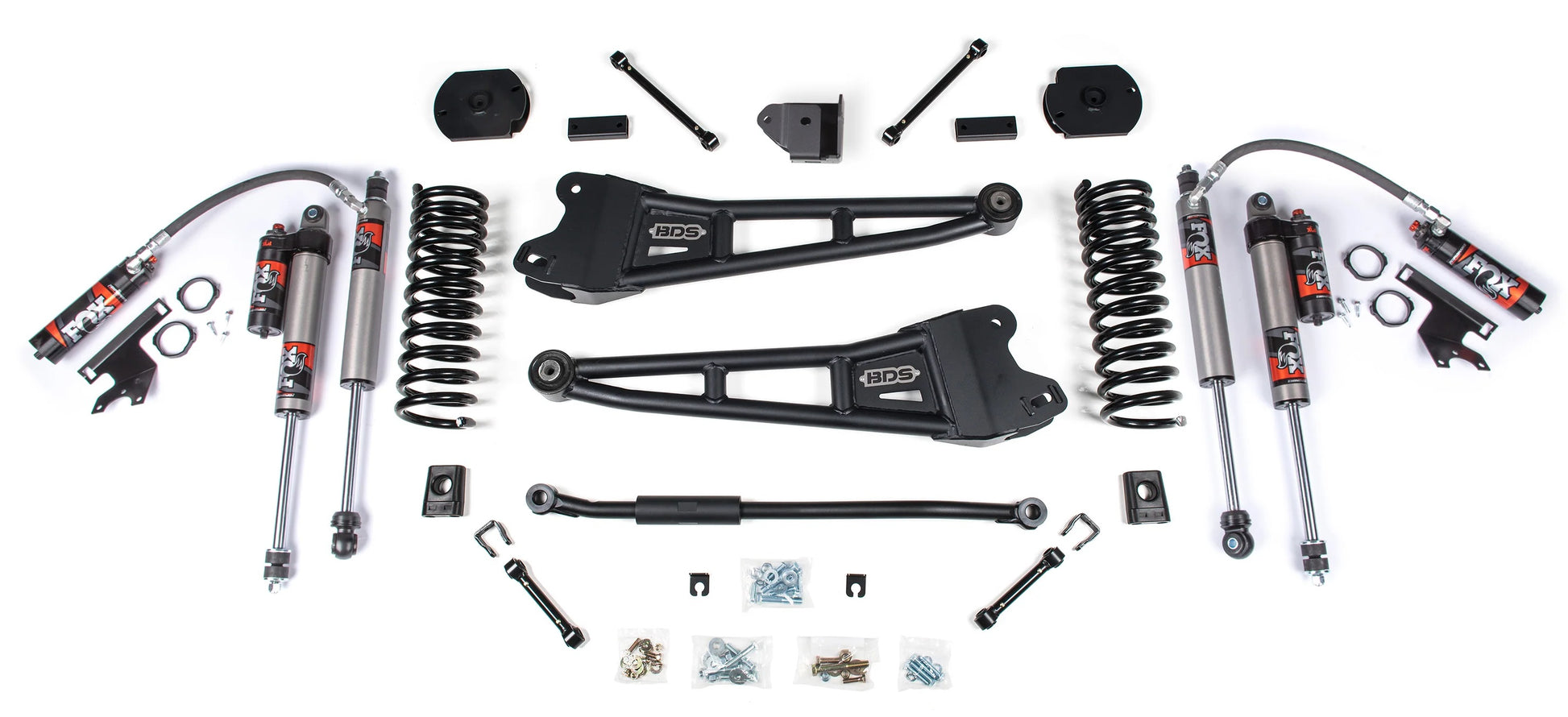

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned shocks. In the rear this kit utilizes a high-strength fabricated lift block and longer u-bolts.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel

Notes:

  • Some trucks are equipped with rear dual overload springs. Order 4068 to retain top overload leafs.
  • Not for use with factory rear airbag suspensions.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front adjustable track bar allows you to re-center axle
  • Front sway bar correction to maintain handling performance

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 3"
  • Rear Lift Method: Block Kit
  • Rear Lift Height: 2"
You can view and download the assembly instruction booklet here, here, here, and here.
