BDS 2013-2018 RAM 3500 4WD,GAS,5.5" LIFT,LEAFS,4-LINK,SPRINGS,FOX 2.5 SHOCKS

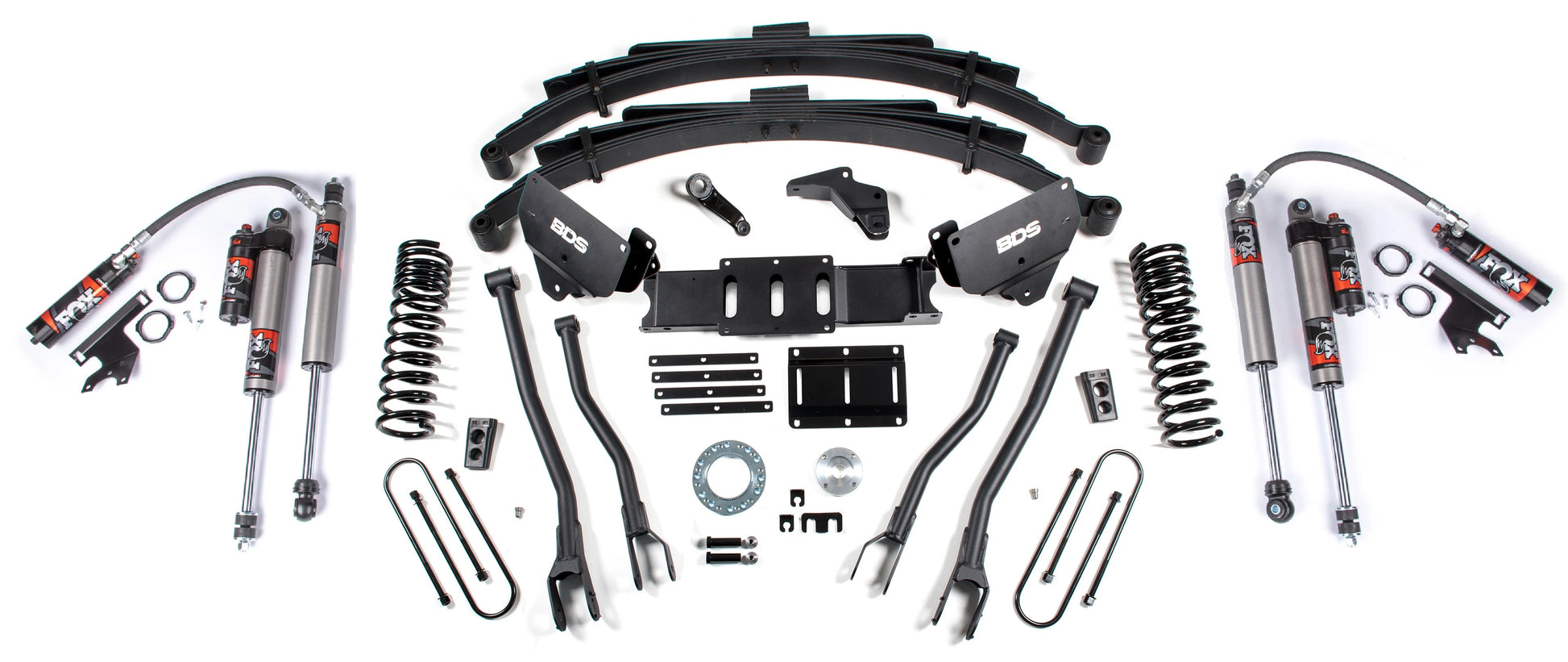

Brand New BDS Suspension 5.5" Lift Kit with FOX 2.5 Performance Elite Shocks, 4-Link, & Leaf Spring Kit (Part #BDS1620FPE).

Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned shocks. In the rear this kit utilizes a high-strength fabricated lift block and longer u-bolts.

Fits:

• Ram:

  • 2013-2018 3500 4WD Gas

Notes:

• 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
• The carrier bearing drop is necessary for models equipped with two-piece rear drive shaft.
• Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
• DRW models fit inner wheel clearance to the upper U-bolt plate on 5.5-6" kits
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 13.5 with 17 x 9 and 5.625 in. Backspace

Features:

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 5.5"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 4.5"

You can view and download the assembly or instruction booklet here and here.
