BDS 2013-2018 RAM 3500,DIESEL,4WD,8" LIFT,LEAF SPRING,6 BOLT INDEX,FOX 2.0 SHOCK

BDS 2013-2018 RAM 3500,DIESEL,4WD,8" LIFT,LEAF SPRING,6 BOLT INDEX,FOX 2.0 SHOCK

STU BDS1614FS

$4,267.40
$4,267.40
View full details

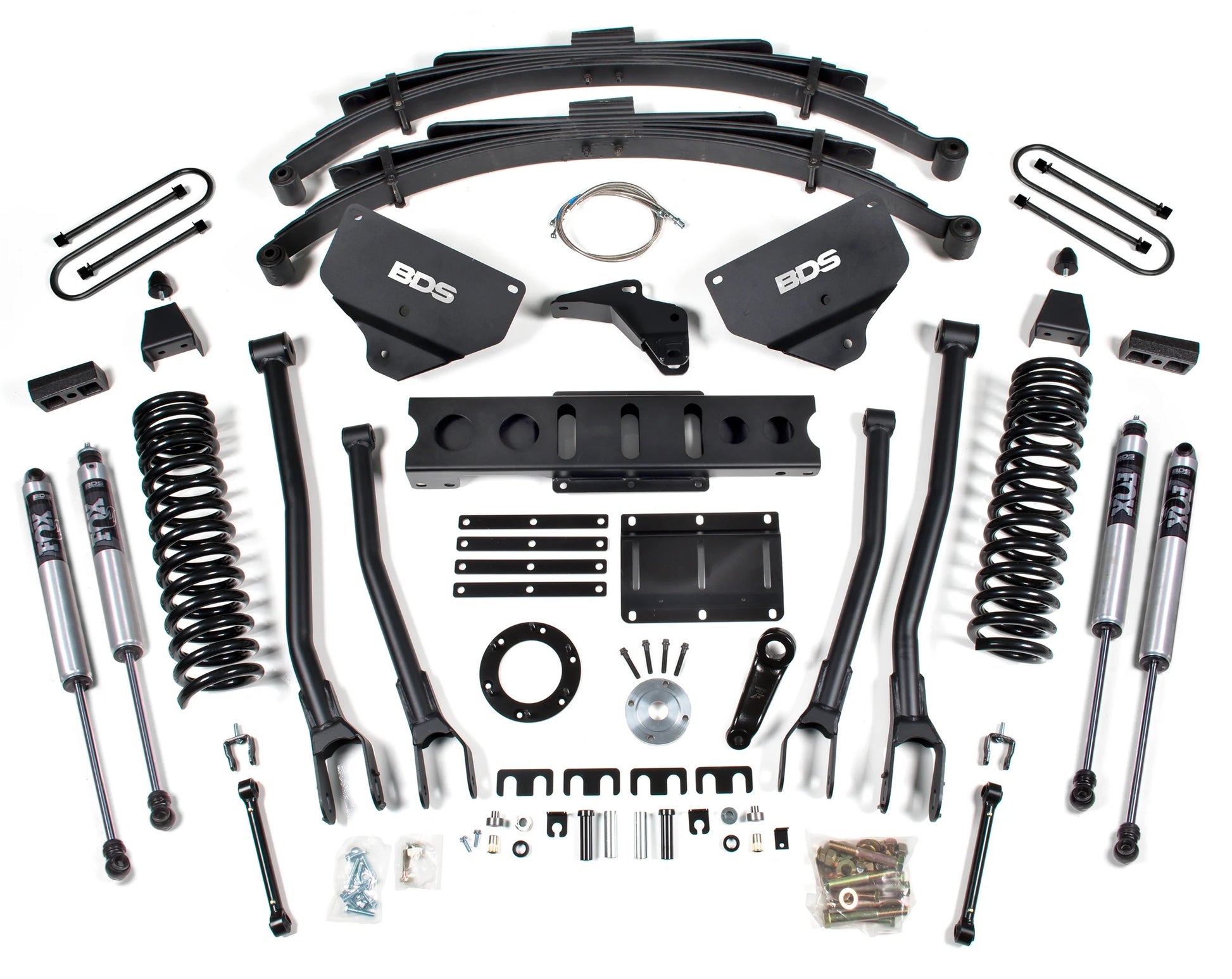

Brand New BDS Suspension 8" Lift Kit with Fox 2.0 Performance Shocks, 4-Link, 6-Bolt Indexing Ring, & Leaf Springs (Part #BDS1614FS).

Go big with the BDS Suspension engineered 8-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stops, and stainless steel brake lines. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement BDS Glideride leaf springs. Also included are new u-bolts and brake line brackets.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel

Note:

  • Carrier bearing drop kit will be required for 2-piece rear drive shaft
  • Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  • Recommended Tires & Wheels (Trimming may be required): 40 x 13.5 with 17 x 9 and 4.5 in. Backspace

Features:

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 8"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
