BDS 2013-2018 RAM 3500,GAS,4WD,4" LIFT KIT,3" BLOCK KIT,FOX 2.0 SHOCKS

BDS 2013-2018 RAM 3500,GAS,4WD,4" LIFT KIT,3" BLOCK KIT,FOX 2.0 SHOCKS

STU BDS1612FS

$1,824.65
$1,824.65
View full details

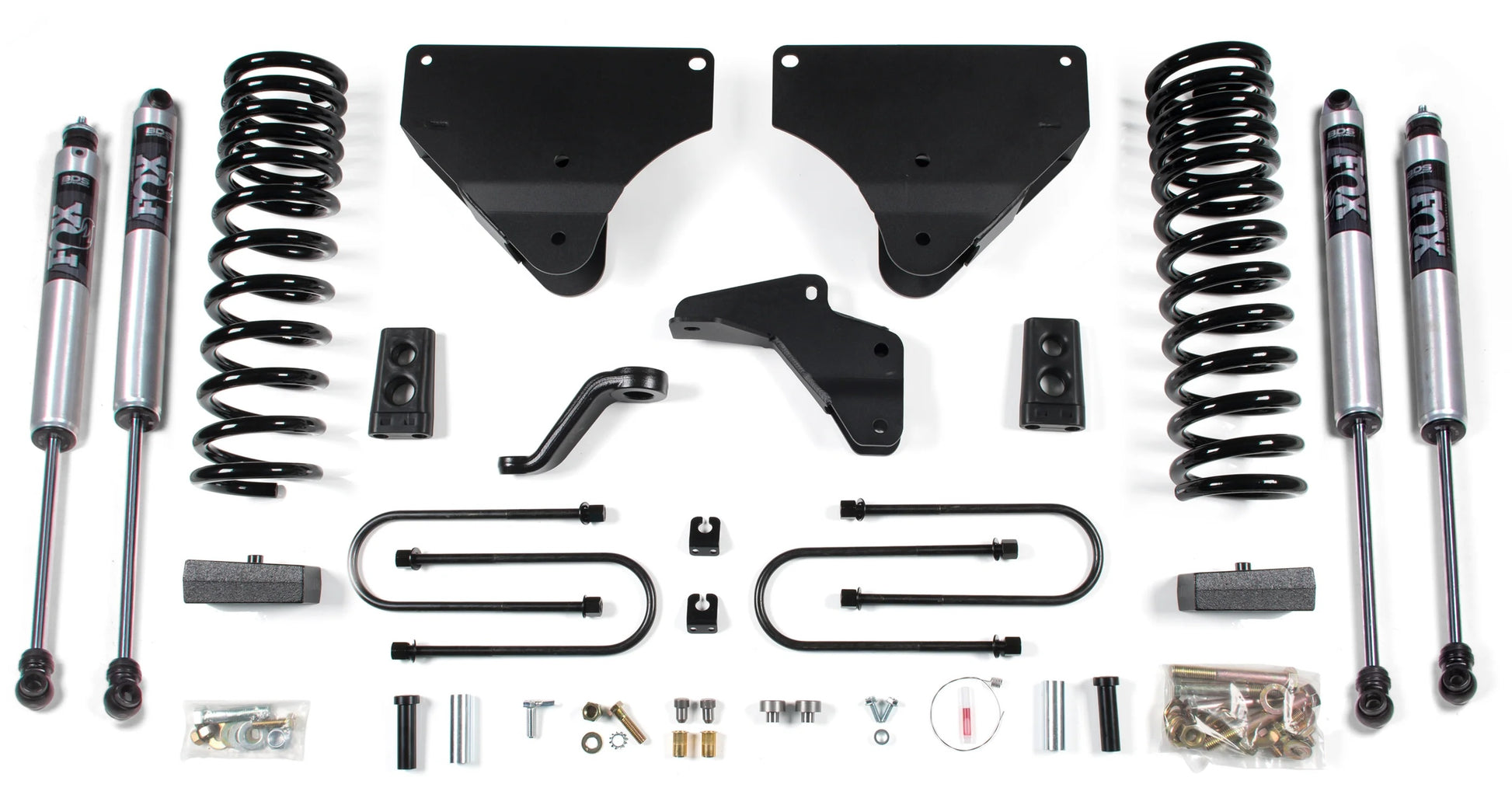

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Performance Shocks & 3" Block Kit (Part #BDS1612FS).

Improve the ride and style of your 2013-2018 RAM 3500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm, track bar bracket for steering correction, bump stops, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, and longer u-bolts.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Gas

Note:

  • The carrier-bearing drop kit is necessary for models equipped with two-piece rear drive shaft.
  • 6.4L Gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's Radius arm bracket.
  • 5.7L Gas models may require exhaust modification - but not in all cases.
  • The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled after modification.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 13.5 with 17 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here and here.
