BDS 2014-2018 RAM 2500,GAS,4WD,4" LIFT KIT,COIL SPACER,FOX 2.0 SHOCKS

BDS 2014-2018 RAM 2500,GAS,4WD,4" LIFT KIT,COIL SPACER,FOX 2.0 SHOCKS

STU BDS1609FS

$2,050.65
$2,050.65
View full details

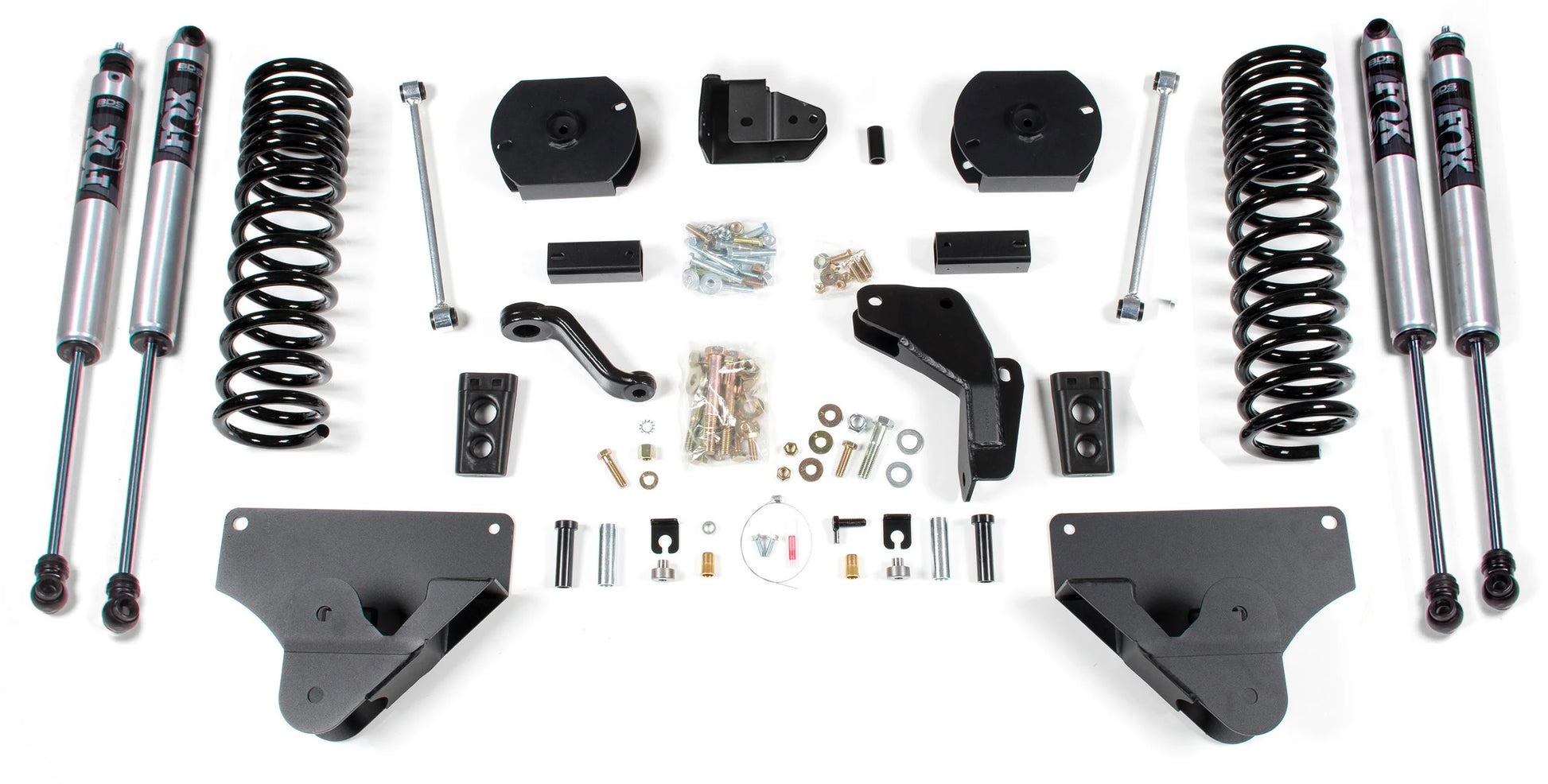

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Performance Shocks & Coil Spacers (Part #BDS1609FS).

Improve the ride and style of your 2014-2018 RAM 2500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, and brake line brackets. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links.

Fits:

  • Ram:
    • 2014-2018 2500 4WD Gas

Note:

  • 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 13.5 with 17 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Coil Spacers:

  • Maintains factory ride quality
  • Made with heavy-duty steel construction
  • Powdercoat finish for long-lasting durability

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Coil Spacer
  • Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here, here, and here.
