BDS 2013-2018 RAM 3500,GAS,4WD,5.5" LIFT KIT,5" BLOCK,COIL SPRING,FOX 2.0 SHOCKS

BDS 2013-2018 RAM 3500,GAS,4WD,5.5" LIFT KIT,5" BLOCK,COIL SPRING,FOX 2.0 SHOCKS

STU BDS1607FS

$2,271.60
$2,271.60
View full details

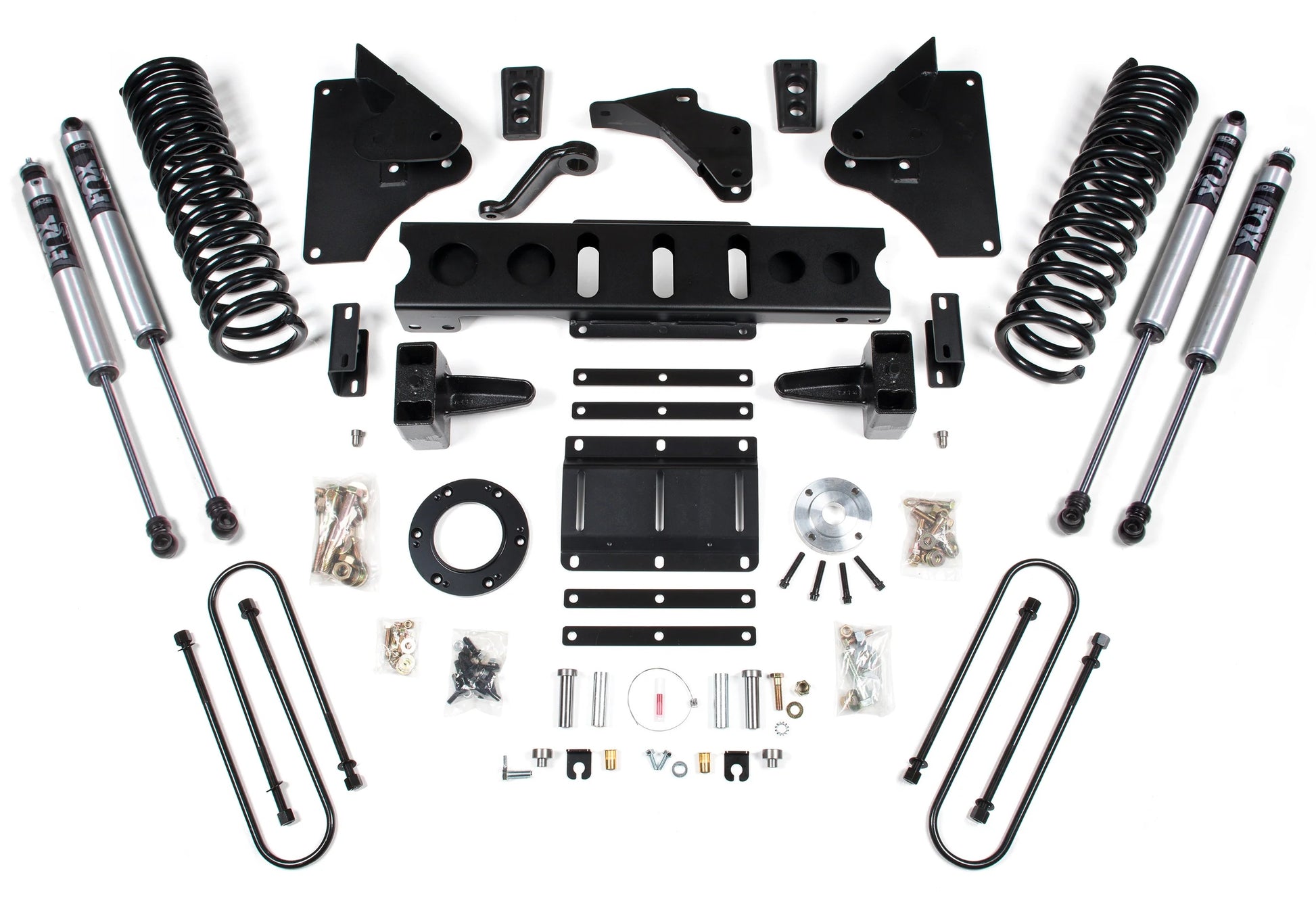

Brand New BDS Suspension 5.5" Lift Kit with Fox 2.0 Performance Shocks & 5" Block Kit (Part #BDS1607FS).

Improve the ride and style of your 2013-2018 RAM 3500 gas powered truck with this 5.5-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, and longer u-bolts.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Gas

Note:

  • 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
  • The carrier bearing drop is necessary for models equipped with two-piece rear drive shaft.
  • Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  • DRW models fit inner wheel clearance to the upper U-bolt plate on 5.5-6" kits
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 13.5 with 17 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 5.5"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
