BDS 2014-2018 RAM 2500,GAS,4WD,5.5" LIFT KIT,4-LINK,COIL SPRING,NITRO SHOCKS

BDS 2014-2018 RAM 2500,GAS,4WD,5.5" LIFT KIT,4-LINK,COIL SPRING,NITRO SHOCKS

STU BDS1606H

$2,715.55
$2,715.55
View full details

Brand New BDS Suspension 5.5" Lift Kit with NX2 Nitro Shocks, 4-Link, & Coil Springs (Part #BDS1606H).

Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2014-2018 RAM 2500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

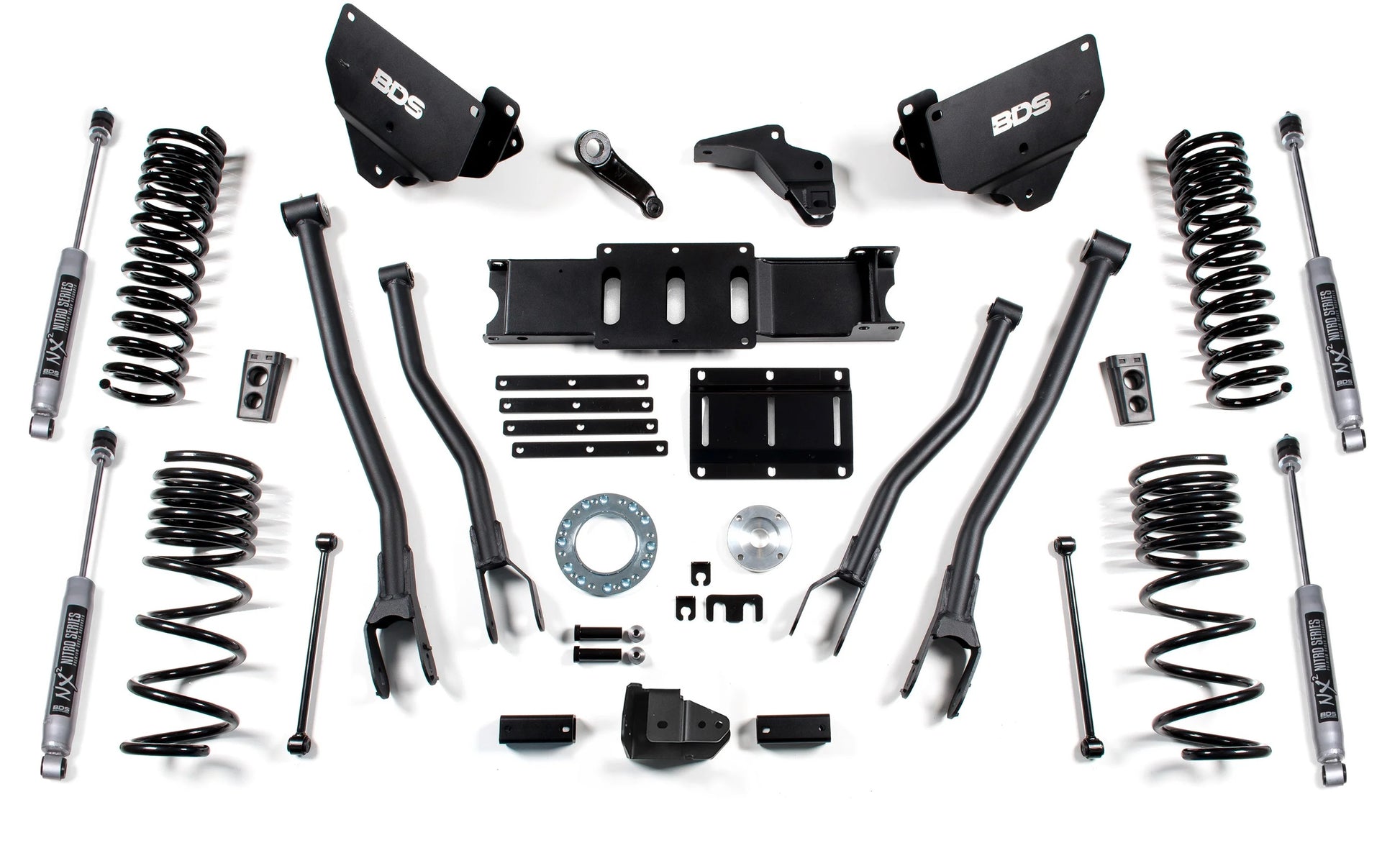

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, and brake line brackets. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links.

Fits:

  • Ram:
    • 2014-2018 2500 4WD Gas

Note:

  • 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 5.5"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 4.5"

You can view and download the assembly instruction booklet here, here, and here.
