BDS 2014-2018 RAM 2500,DIESEL,4WD,6" LIFT,4-LINK,HYDRO BUMP,FOX 2.5 COILOVER

BDS 2014-2018 RAM 2500,DIESEL,4WD,6" LIFT,4-LINK,HYDRO BUMP,FOX 2.5 COILOVER

STU BDS1604PESB

$7,756.60
$7,756.60
View full details

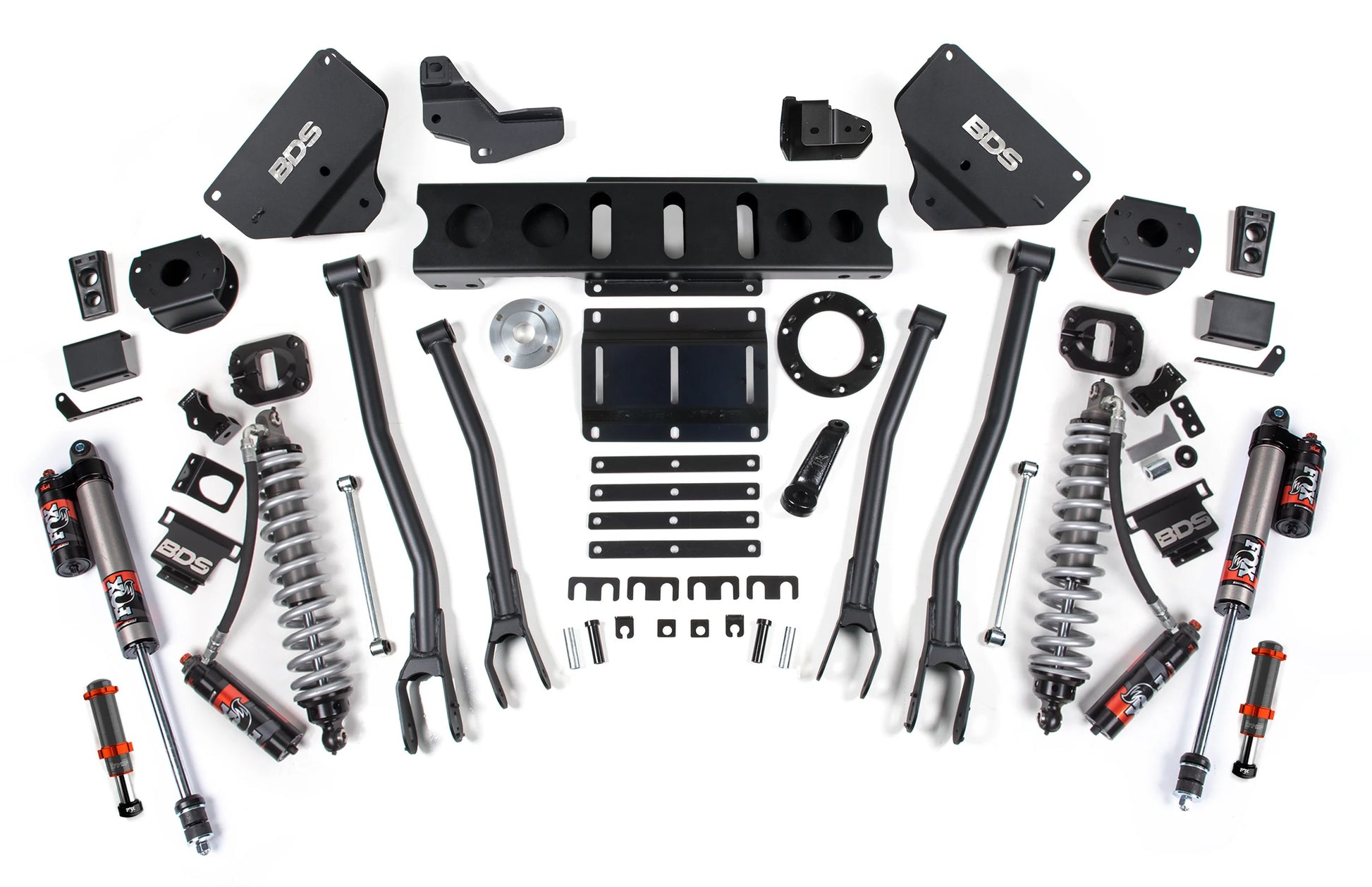

Brand New BDS Suspension 6" Lift Kit with Fox 2.5 Coilovers, Rear Fox 2.5 Performance Shocks, 4-Link, 6-Bolt Indexing Ring, & Fox 2.0 Hydro Bump Stop (Part #BDS1604PESB).

Built to take abuse and ask for more, the BDS 6" 4-Link Lift Kit for Ram 2500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS 4-Link arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets. Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid off-roader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control

Fits:

  • Ram:
    • 2014-2018 2500 4WD Diesel

Note:

  • Will not fit air ride equipped models
  • Diesel models only
  • Not designed for PowerWagon models
  • Must be used with an aftermarket drive shaft due to increased wheel travel.
  • Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle could have 8-bolt transfer cases (w/heavy-duty Aisin 6 speed transmissions), order 122813.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.
  • Fox 2.5 Performance Elite rear shocks.
  • Auxiliary front shock absorber.
  • Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance
  • Front adjustable track bar which allows the front of the truck to be re-centered after lifted.
  • Front sway bar correction to maintain handling performance.

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 6"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 4.5"

You can view and download the assembly instruction booklet here, here, here, and here.
