BDS 2013-2018 RAM 3500,DIESEL,4WD,6" LIFT,5" BLOCK,6 BOLT INDEX,FOX 2.0 SHOCKS

BDS 2013-2018 RAM 3500,DIESEL,4WD,6" LIFT,5" BLOCK,6 BOLT INDEX,FOX 2.0 SHOCKS

STU BDS1603FS

$3,113.55
$3,113.55
View full details

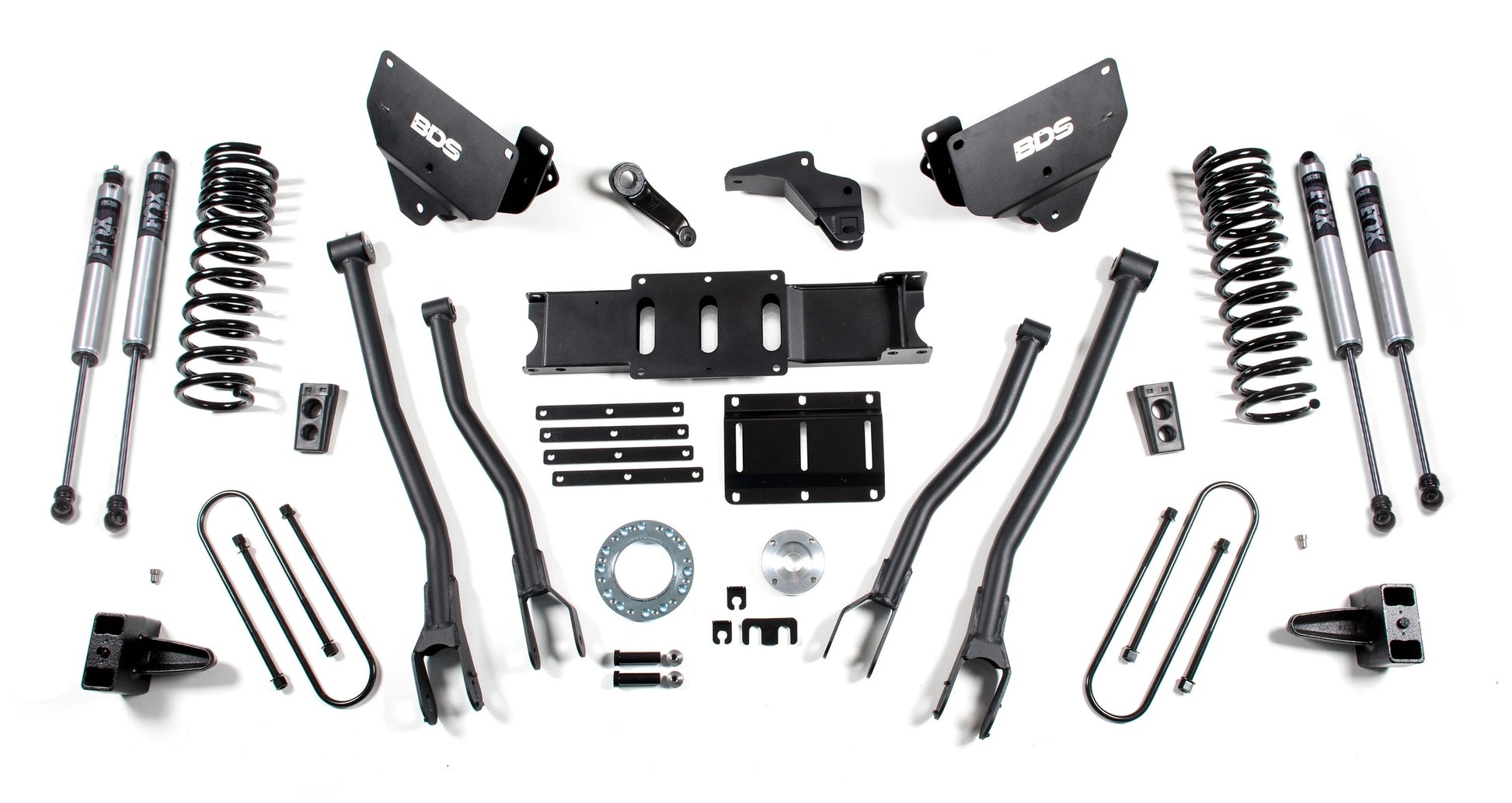

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Performance Shocks, 4-Link, 6-Bolt Indexing Ring, & 5" Block Kit (Part #BDS1603FS).

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, and longer u-bolts.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel

Note:

  • The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
  • Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 18 x 9 and 4.5 in. Backspace and 37 x 13.5 with 17 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
