BDS 2014-2018 RAM 2500,DIESEL,4WD,6" LIFT KIT,COIL SPRING,FOX 2.0 SHOCKS

BDS 2014-2018 RAM 2500,DIESEL,4WD,6" LIFT KIT,COIL SPRING,FOX 2.0 SHOCKS

STU BDS1600FS

$2,757.60
$2,757.60
View full details

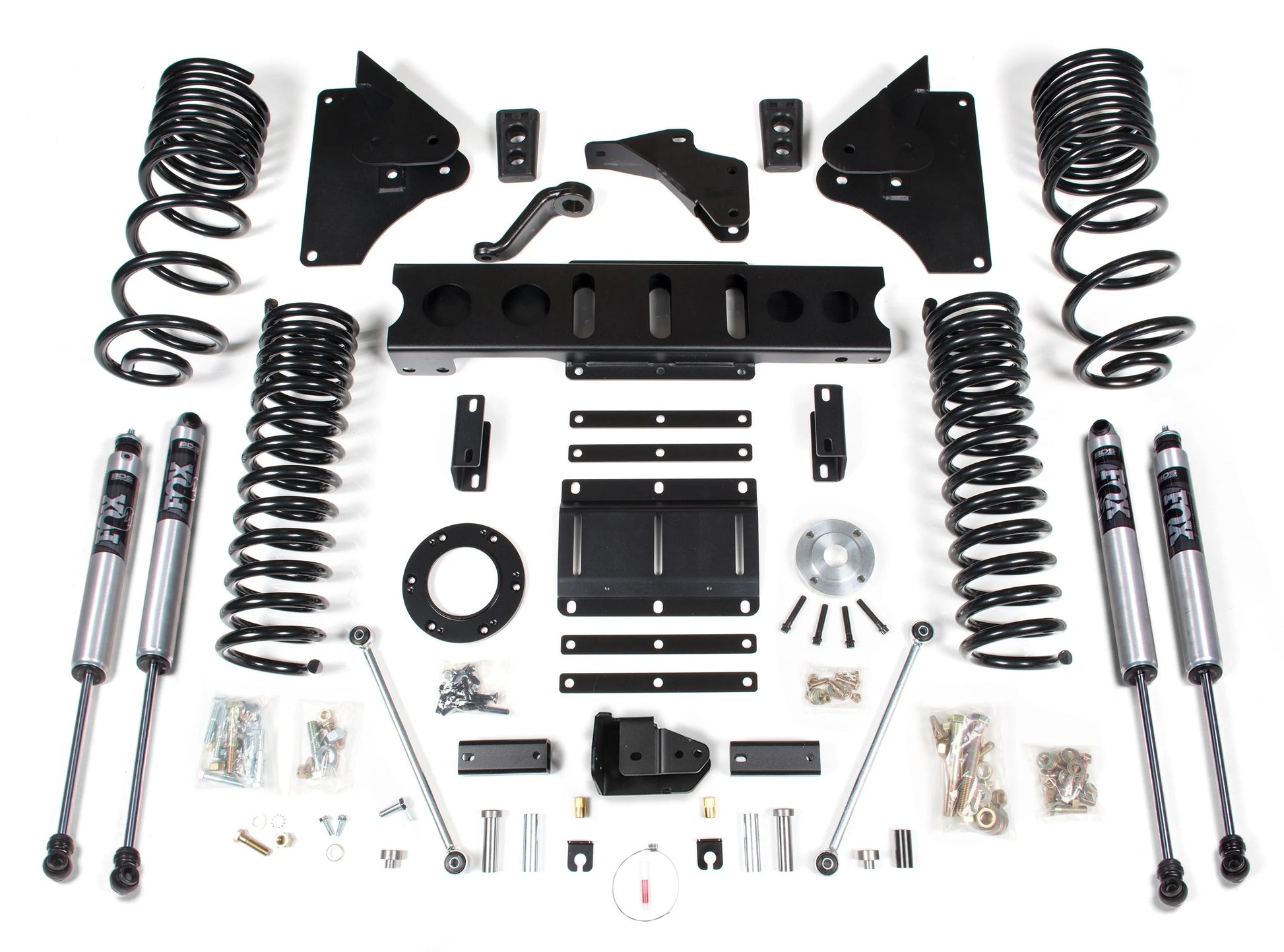

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Performance Shocks & Coil Springs (Part #BDS1600FS).

Take your 2014-2018 Ram 2500 diesel powered truck to the next level with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links.

Fits:

  • Ram:
    • 2014-2018 2500 4WD Diesel

Notes:

  • Not for use with factory rear airbag suspensions
  • Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle could have 8 bolt transfer cases (w/Heavy-duty Aisin 6 speed transmissions)
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 6"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 4.5"

You can view and download the assembly instruction booklet here, here, and here.
