BDS 2011-2016 F250,F350 4WD 4" RADIUS ARM SUSP. LIFT,LEAF SPRINGS,FOX COILOVER

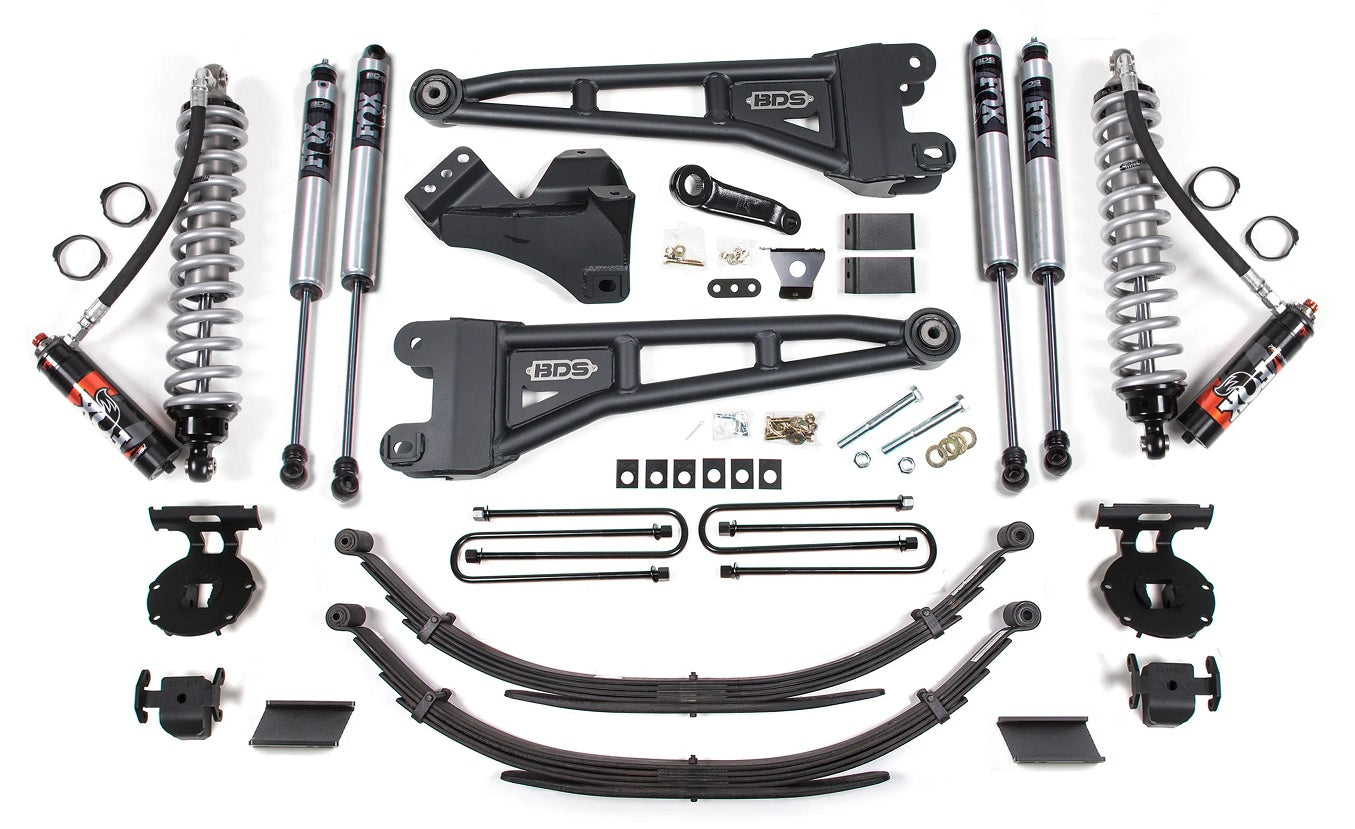

Brand New BDS Suspension 4" Radius Arm Lift Kit with FOX 2.5 Coil-Overs, FOX 2.0 Rear Shocks, & Leaf Spring Kit (Part #BDS1597FPE).

Built to outperform, upgrade your 2011-2016 F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

In the rear this kit utilizes a high-strength fabricated lift block, U-bolt flip kit for max ground clearance, brake line brackets and a matching set of FOX Performance shocks.

Up front, the kit utilizes FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, fully boxed and gusseted lower control arms, and multipiece differential relocation brackets to maintain correct CV angles. These combined with the provided sway bar links, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a U-bolt flip kit for max clearance and precision tuned FOX 2.5 Performance Elite Series for ultimate off road performance.

FOX Performance Elite Coil-Over: FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms: In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Steering Correction: To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while re-centering the front axle.

Fits:

• Ford:

  • 2011-2016 F-250 Super Duty 4WD Diesel
  • 2011-2016 F-350 Super Duty 4WD Diesel

NOTE:

• Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for the level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring-equipped systems)
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.
• Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with a rear sway bar, #123009 is required.
• U-bolts will not work on dually.

• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

• FOX 2.5 Coil-Over mounts in factory coil bucket location

• Adds additional secondary FOX 2.0 shock for max performance

• Eibach coil springs ride smooth through the roughest terrain

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• Fabricated steel blocks provide level stance from front to rear

• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs:

• Front Lift Method: Coil-Over
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4"
• Rear Lift Height: 3"

You can view and download the assembly/instruction booklet here, here, here, and here.
