BDS 2011-2016 F250,F350 4WD 4" RADIUS ARM SUSP. LIFT,4" BLOCK,FOX COILOVER

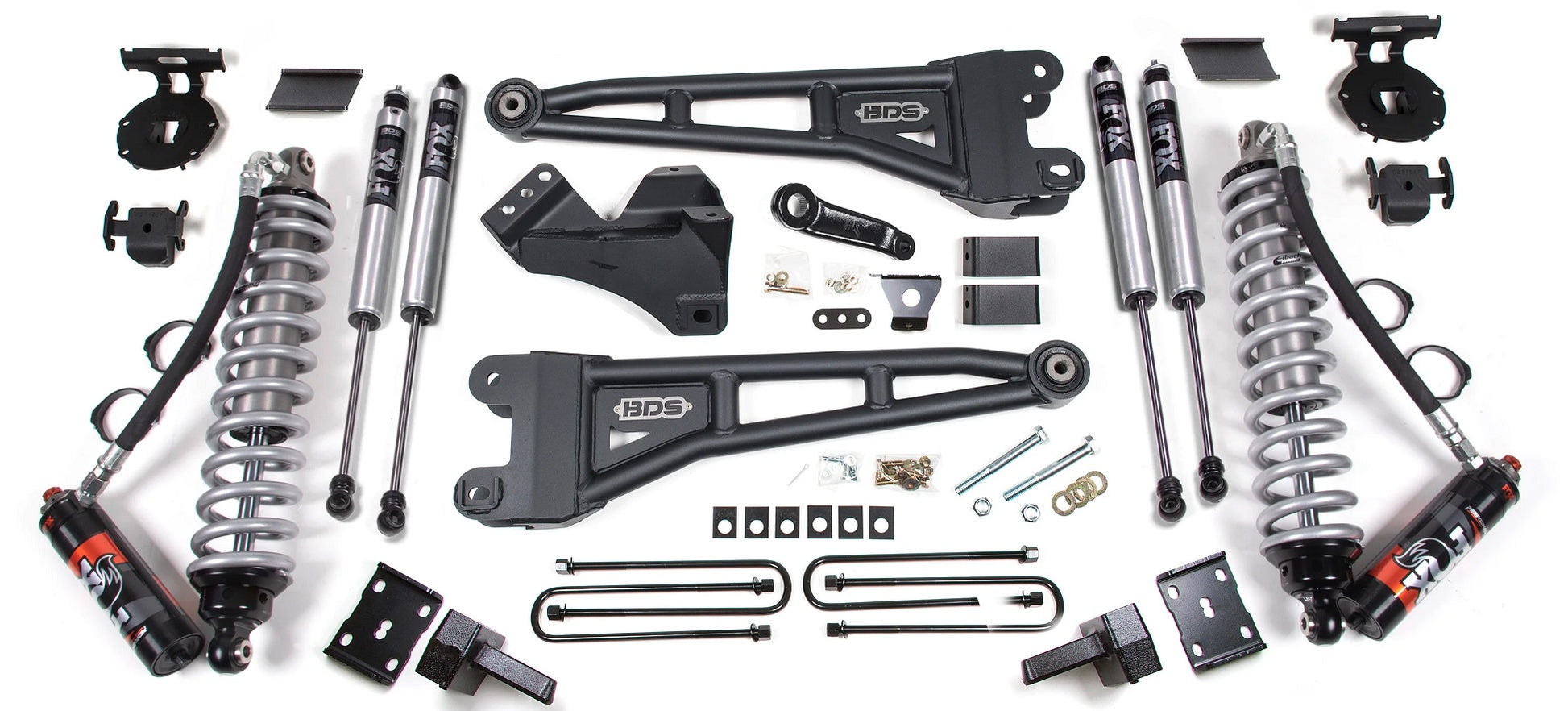

Brand New BDS Suspension 4" Radius Arm Lift Kit with FOX 2.5 Coil-Overs, FOX 2.0 Rear Shocks, & Block Kit (Part #BDS1596FPE).

Built to outperform, upgrade your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, U-bolt flip kit for max ground clearance, and brake line brackets.

Fits:

• Ford:

  • 2011-2016 F-250 Super Duty 4WD Diesel
  • 2011-2016 F-350  Super Duty 4WD Diesel

Notes:

• Removal of factory block required. Rear add-a-leaf is required for models equipped with factory 3-7/8" block for the level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring-equipped systems)

• If equipped with a 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.

• If equipped with a rear sway bar, #123009 is required.

• U-bolts will not work on dually.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

• FOX 2.5 Coil-Over mounts in factory coil bucket location

• Adds additional secondary FOX 2.0 shock for max performance

• Eibach coil springs ride smooth through the roughest terrain

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• Fabricated steel blocks provide level stance from front to rear

• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs:

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Front Lift Height: 4"
• Rear Lift Height: 2"

You can view and download the assembly or instruction booklet here, here, here, and here.
