BDS 11-16 FORD F-250/F-350,DIESEL,4WD,6" RADIUS LIFT,2" FACTORY BLOCK,NITRO

BDS 11-16 FORD F-250/F-350,DIESEL,4WD,6" RADIUS LIFT,2" FACTORY BLOCK,NITRO

STU BDS1592H

$2,489.54
$2,489.54
View full details

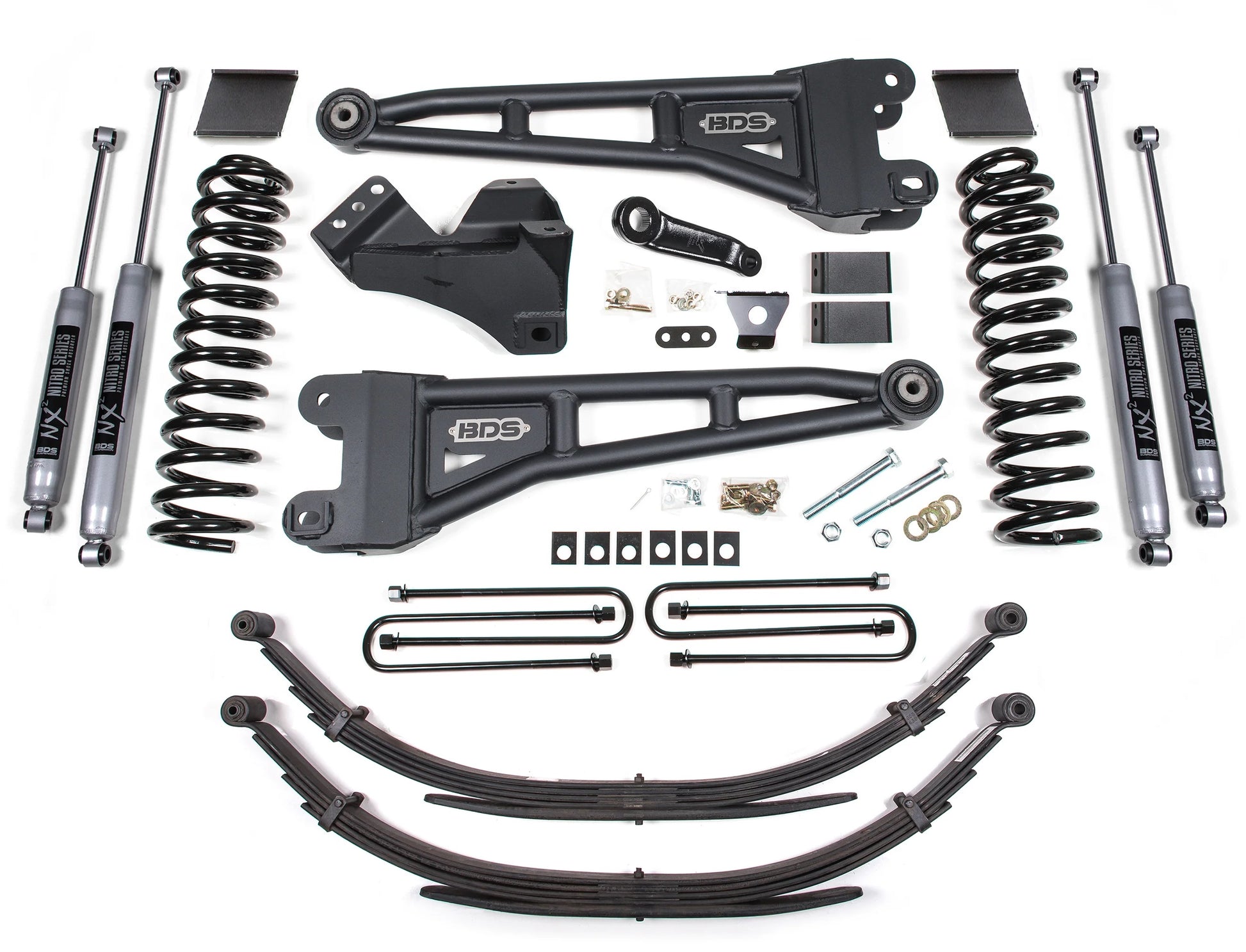

Brand New BDS Suspension 6" Radius Arm Lift Kit with NX Nitro Shocks & Leaf Springs (Part #BDS1592H).

Take your 2011-2016 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Diesel with Factory 2" Rear Blocks
    • 2011-2016 F-350 Super Duty 4WD Diesel with Factory 2" Rear Blocks

Notes:

  • If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 6"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here and here.
