BDS 11-16 FORD F-250/F-350,DIESEL,4WD,6" RADIUS LIFT,2" FACTORY BLOCK,FOX 2.5

BDS 11-16 FORD F-250/F-350,DIESEL,4WD,6" RADIUS LIFT,2" FACTORY BLOCK,FOX 2.5

STU BDS1592FPE

$5,390.49
$5,390.49
View full details

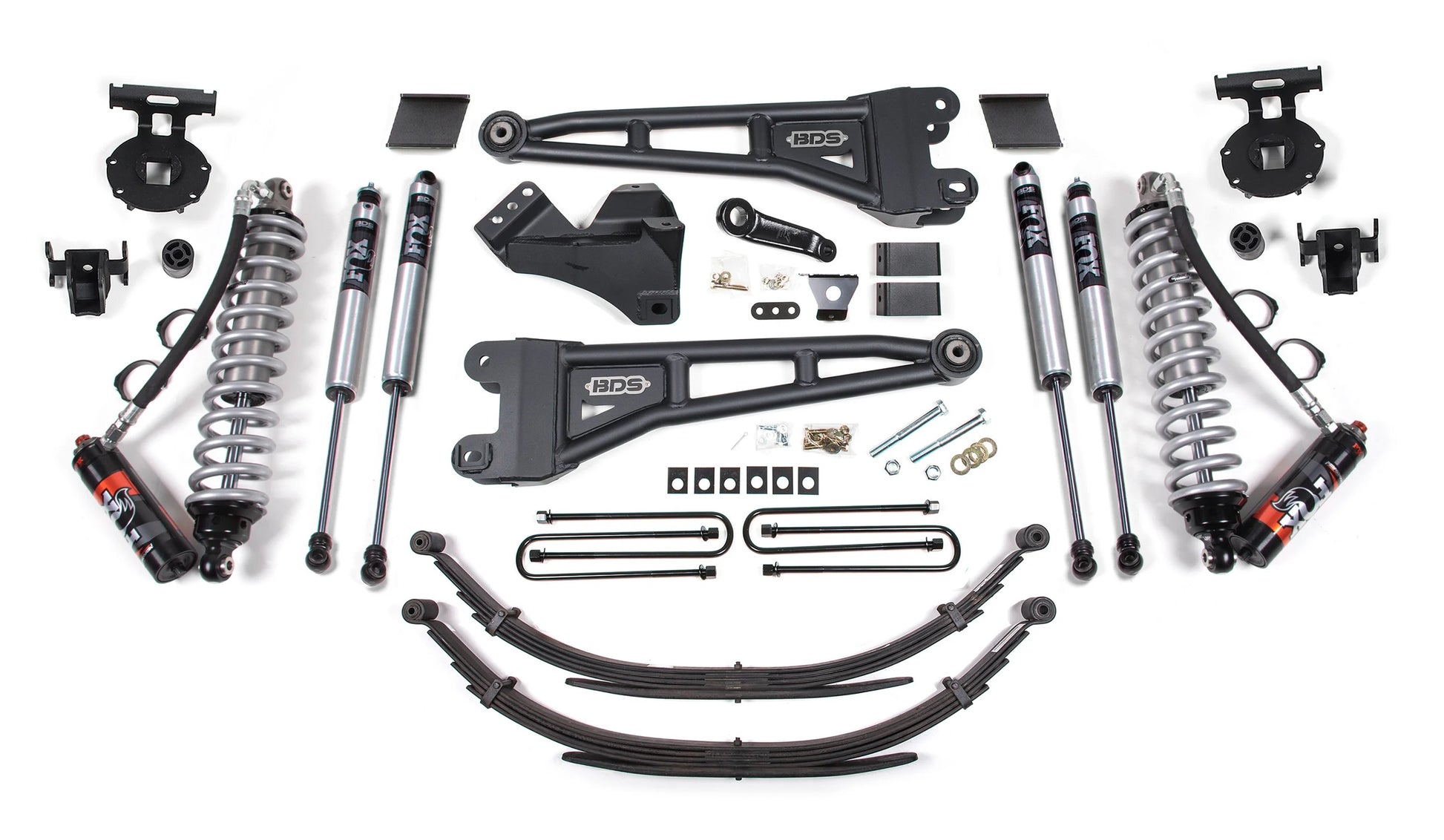

Brand New BDS Suspension 6" Lift Kit with Fox 2.5 Performance Elite Coilovers & Leaf Springs (Part #BDS1592FPE).

Built to outperform, upgrade your 2011-2016 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit with FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks. In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Diesel with Factory 2" Rear Blocks
    • 2011-2016 F-350 Super Duty 4WD Diesel with Factory 2" Rear Blocks

Notes:

  • If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 6"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 6"

You can view and download the assembly instruction booklet here, here, and here.
