BDS 2014-2020 FORD F-150 4WD,3" LIFT KIT,FOX 2.5 COILOVERS,FOX 2.5 SHOCKS

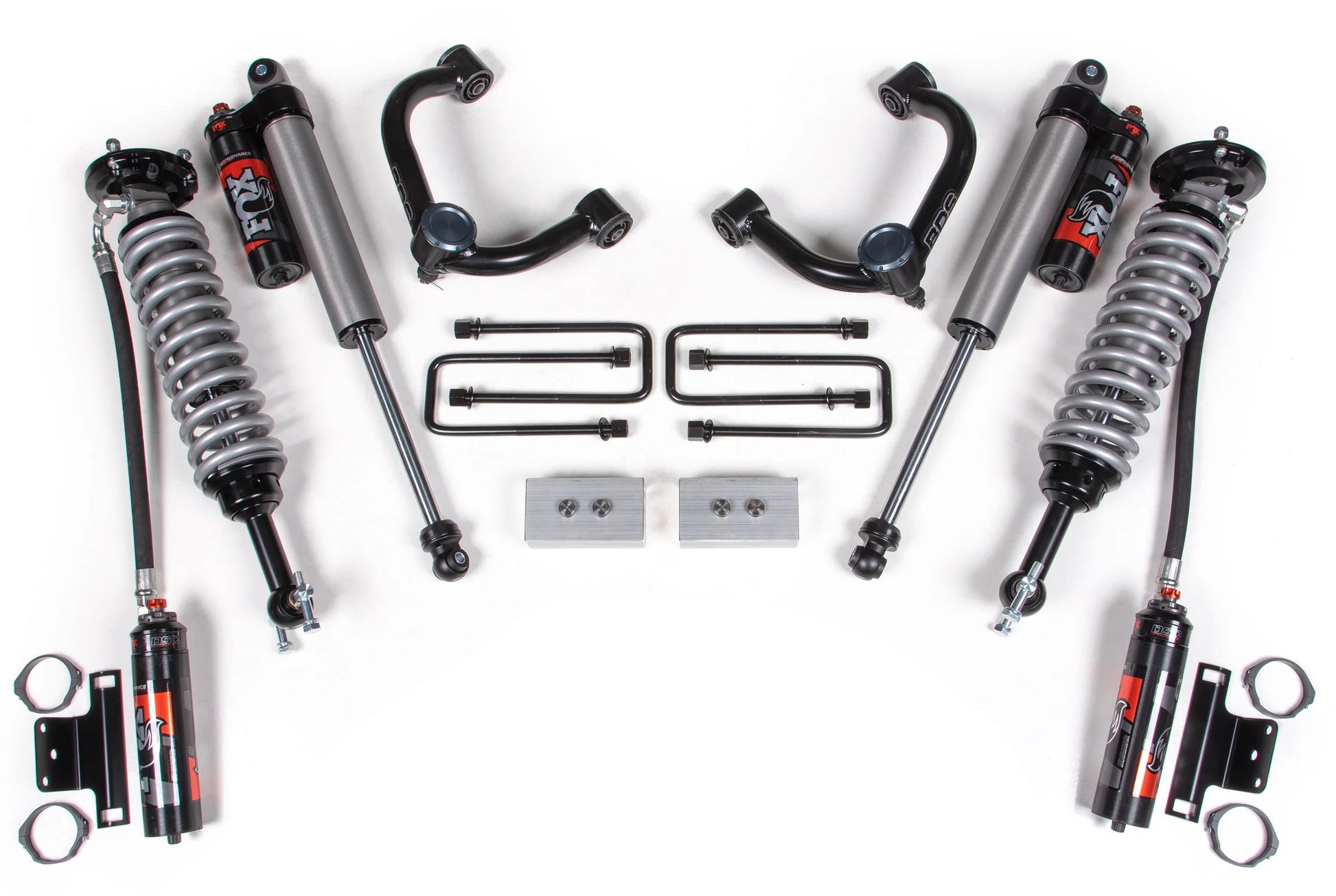

Brand New BDS Suspension 3" Lift Kit with Fox 2.5 Coilovers & Rear Fox 2.5 Performance Elite Shocks (Part #BDS1589FPE).

Up the ante in your 2014-2020 Ford F150 truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.5 Performance Elite shocks for the smoothest ride.

Compatible with:

• Ford:

  • 2014-2020 F-150 4WD

Notes:

• Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
• Will not fit HD models (7 lug).
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 3"
• Rear Lift Method: Block
• Rear Lift Height: 1"

You can view and download the assembly instruction booklet here.
