BDS 2014-2020 FORD F-150 4WD,3" LIFT KIT,FOX 2.5 COILOVERS,FOX 2.0 SHOCKS

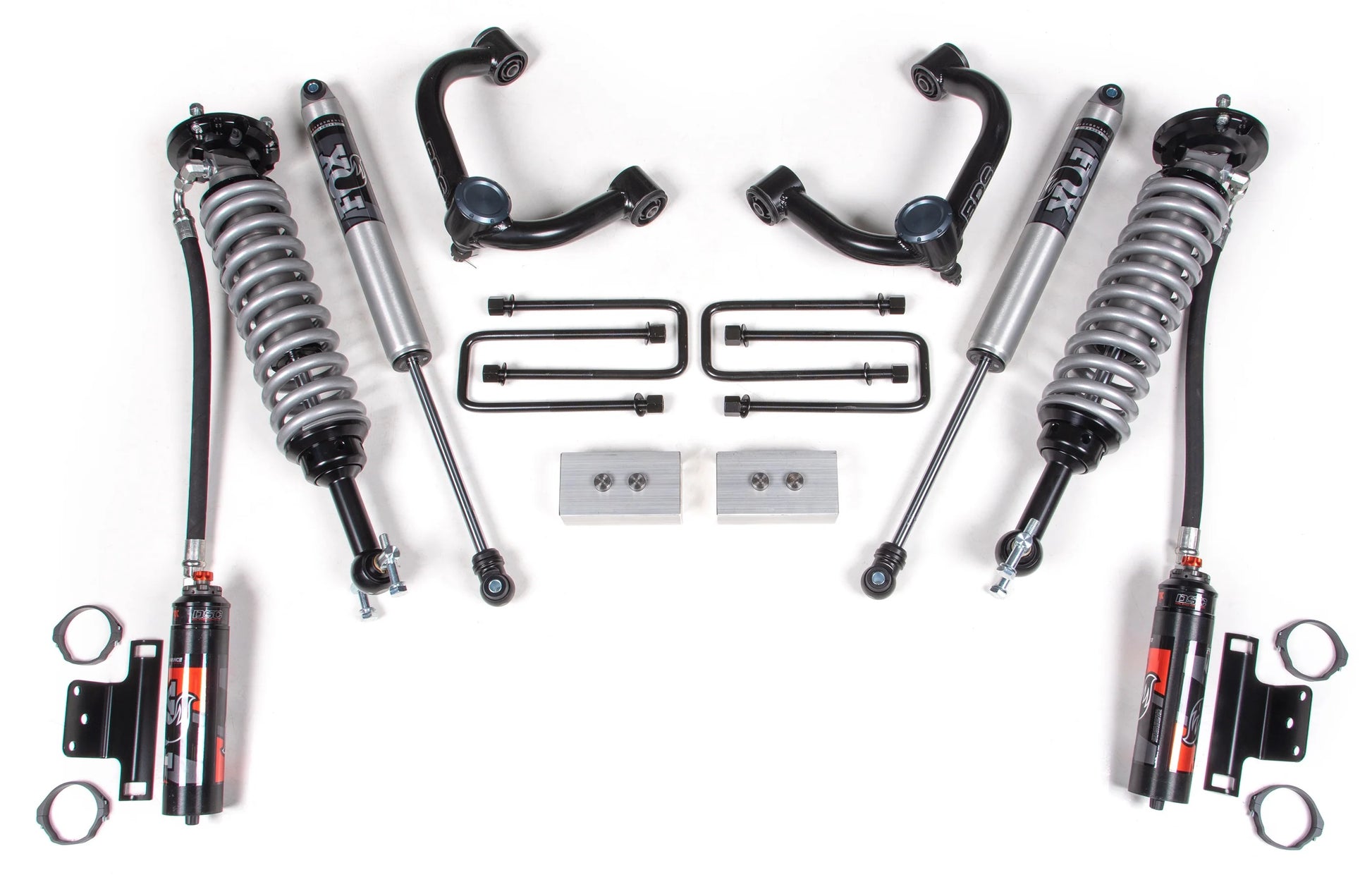

Brand New BDS Suspension 3" Lift Kit with Fox 2.5 Coilovers & Rear Fox 2.0 Performance Shocks (Part #BDS1588FPE).

Up the ante in your 2014-2020 Ford F150 truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

Compatible with:

• Ford:

  • 2014-2020 F-150 4WD

Notes:

• Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
• Will not fit HD models (7 lug).
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
• High clearance crossmembers improve strength and off-road capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 3"
• Rear Lift Method: Block
• Rear Lift Height: 1"

You can view and download the assembly instruction booklet here.
