BDS 2019-2023 FORD RANGER,4WD,3.5" LIFT,ALUMINUM KNUCKLE,REAR FOX 2.5 SHOCKS

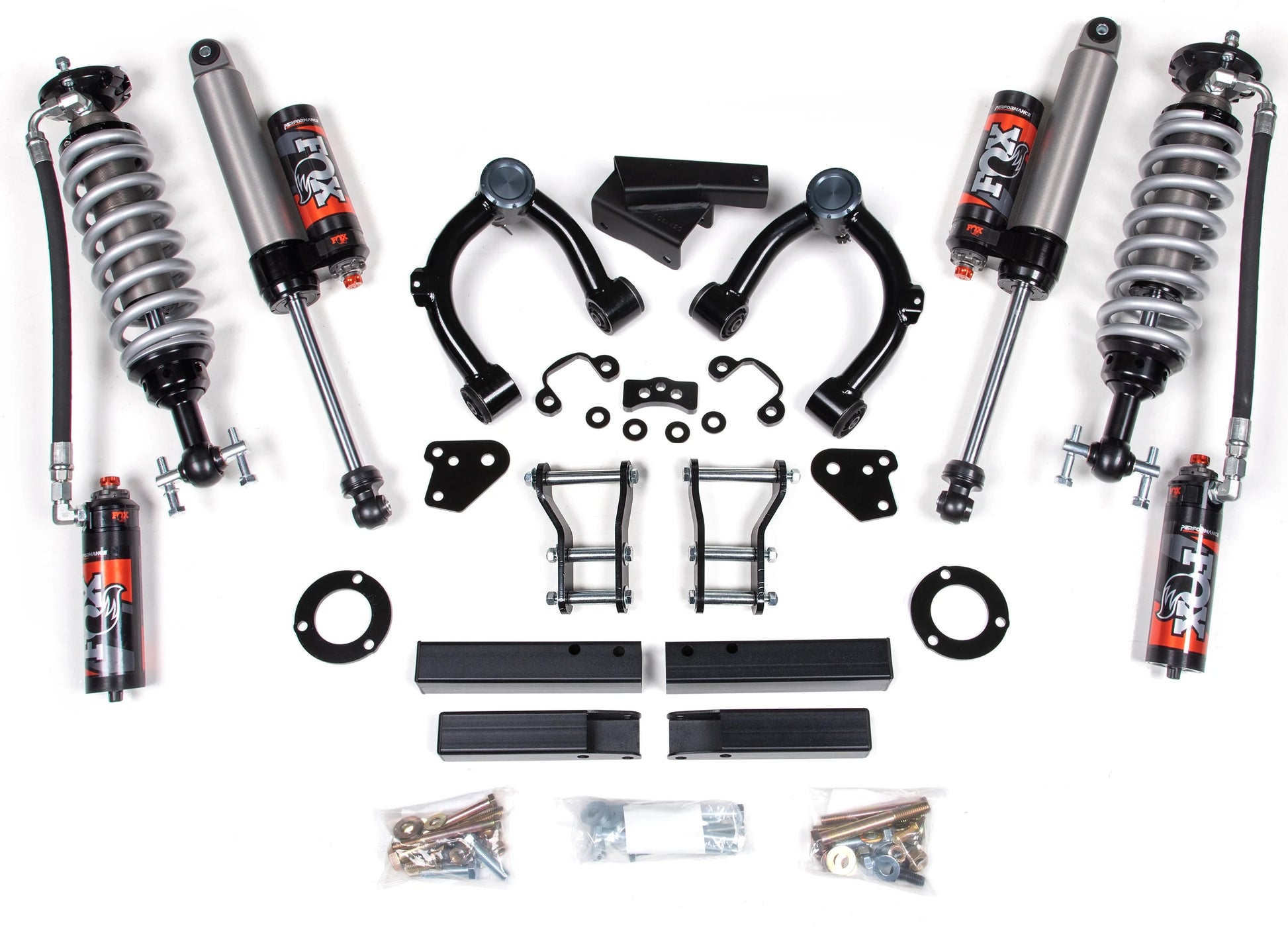

Brand New BDS Suspension 3.5" Lift Kit with Fox 2.5 Coilovers & Fox 2.5 Performance Elite Shocks (Part #BDS1587FPE).

Take your 2019-2023 Ford Ranger truck to the next level with a 3.5-inch lift kit with FOX 2.5 Coil-Over shocks from BDS. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your Ford Ranger up right with clearance for up to 33" tires.

To ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit includes heavy duty lift shackles and custom-tuned matching FOX shocks.

Compatible with:

• Ford:

  • 2019-2023 Ranger 4WD with Cast Aluminum OE Knuckle

Notes:

• Aftermarket wheels must have a minimum of 93.1mm center hub bore.
• Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
• Will NOT work on trucks equipped with cast steel steering knuckles
• For 3" - Ford produces two knuckle/control arm configurations In 2019-2023 Model Rangers. Cast Steel Knuckle Equipped Models Have Different Ball Joints Than Models Equipped With Aluminum Knuckles. Be Sure To Verify Which Factory Knuckle Your Truck Has Before Ordering.
• Does not work on Tremor models
• Recommended Tires & Wheels (Trimming May Be Required): 285 / 65 with 18 x 9 and 5.75 in. Backspace or 305 / 55 with 20 x 9 and 5 in. Backspace

Features:

• FOX 2.5 coilover shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
• High clearance crossmembers improve strength and off-road capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 3.5"
• Rear Lift Method: Block
• Rear Lift Height: 1.5"

You can view and download the assembly instruction booklet here and here.
