BDS 2009-2013 FORD F-150 4WD,2" LEVELING KIT,FOX 2.5 DSC COILOVERS,FOX 2.0 SHOCK

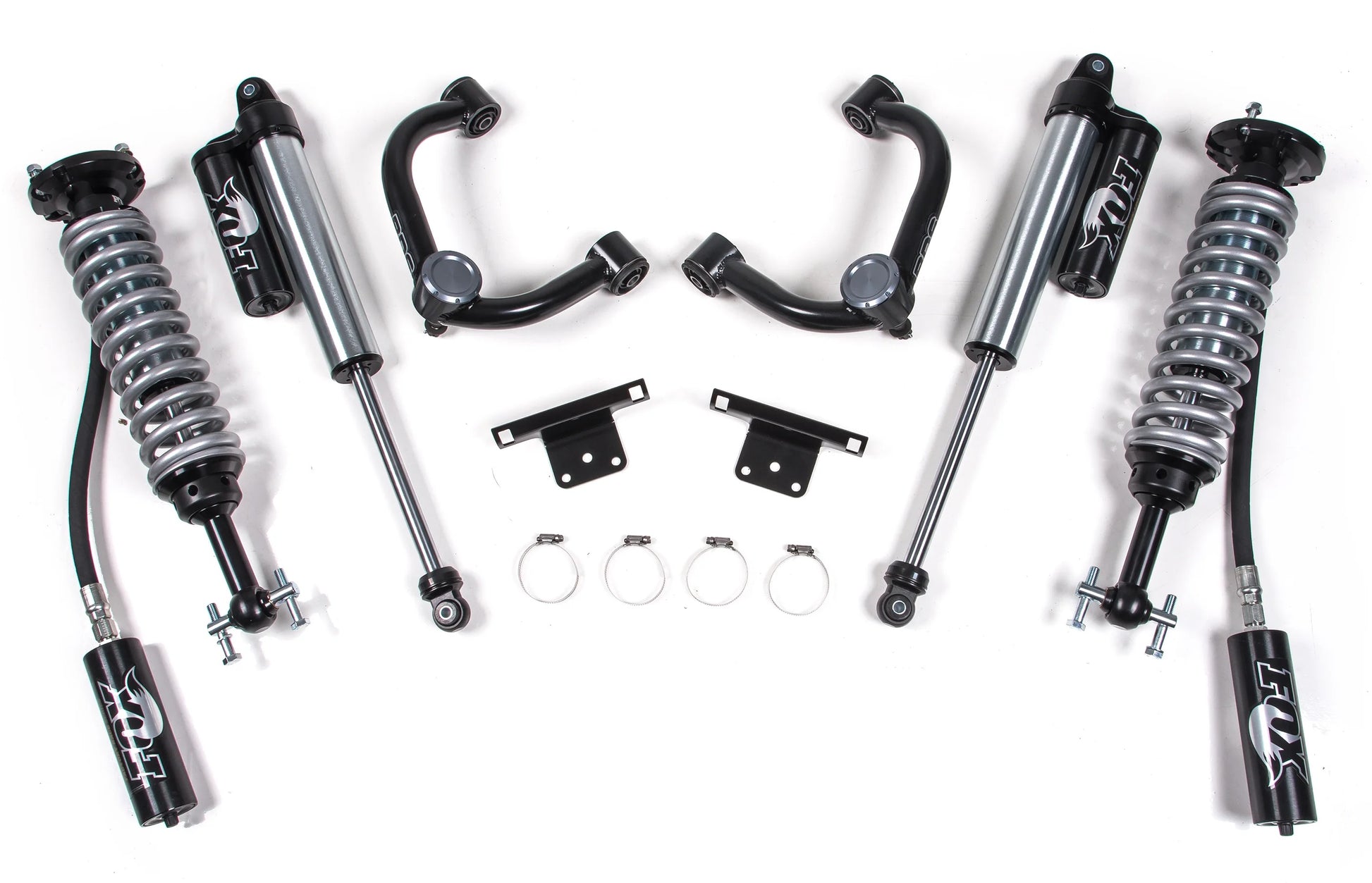

Brand New BDS Suspension 2" Leveling Kit with Fox 2.5 Coilovers & Rear Fox 2.5 Performance Elite Shocks (Part #BDS1586FDSC).

Take your 2009-2013 Ford F150 truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.5 Performance shocks for the smoothest ride.

Compatible with:

• Ford:

  • 2009-2013 F-150 4WD

Notes:

• Will not fit HD models (7 lug).
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX 2.5 coilover shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• High clearance crossmembers improve strength and off-road capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance

FOX 2.5 Coil-Overs with DSC Adjuster:

• Dual Speed Compression (DSC) Adjuster
• Increases both low and high-speed compression levels up to 25%
• Easy twist knobs for Low-Speed and High-Speed Compression adjustment
• Provides added control and comfort for on-road use
• More aggressive damping for use off-road

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2"
• Rear Lift Method: Shocks
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
