BDS 2021-2025 FORD F-150 4WD,4" LIFT KIT,3" BLOCK,FOX 2.0 STRUTS

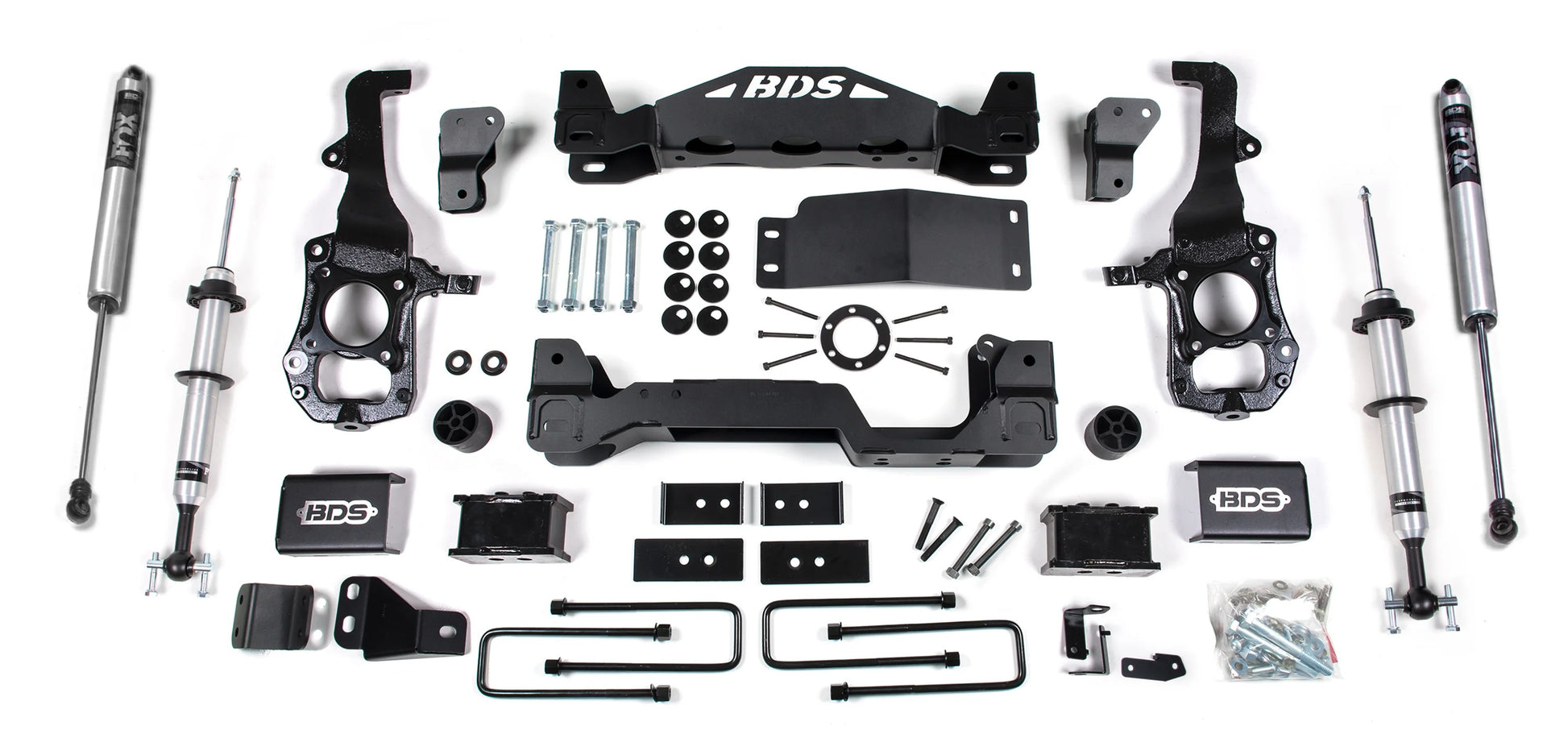

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Struts, Crossmembers, Rear Fox 2.0 Performance Series Shocks, & 3" Block Kit (Part #BDS1583FSR).

Increase the performance and capability of the 2021-2025 Ford F150 trucks with 4-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 4 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance.

These FOX 2.0 Performance Series coilover struts bring impressive damper performance for great ride on and off-road capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat-treated alloy shaft.

Fits:

• Ford:
  • 2021-2025 F-150 4WD

• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire to frame crash bar clearance.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
• Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
• Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
• Does NOT fit diesel models.
• Tremor models: only the 3 inch rear block option is recommended. Larger blocks cause driveline vibration. Expected rake is 1" with new block installed. Factory block provides slight tail low stance if desired
• Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
• Will not work with models with CCD (Continuous Controlled Damping)
• Requires frame bracket modification.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation.
• Recommended Tires & Wheels (Trimming may be required): 33 x 12.5 with 20 x 9 and 5 in. Backspace or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

You can view and download the assembly instruction booklet here and here.
