BDS 2014-2020 FORD F-150 4WD,2" LEVELING KIT,FOX 2.5 COILOVERS,FOX 2.0 SHOCKS

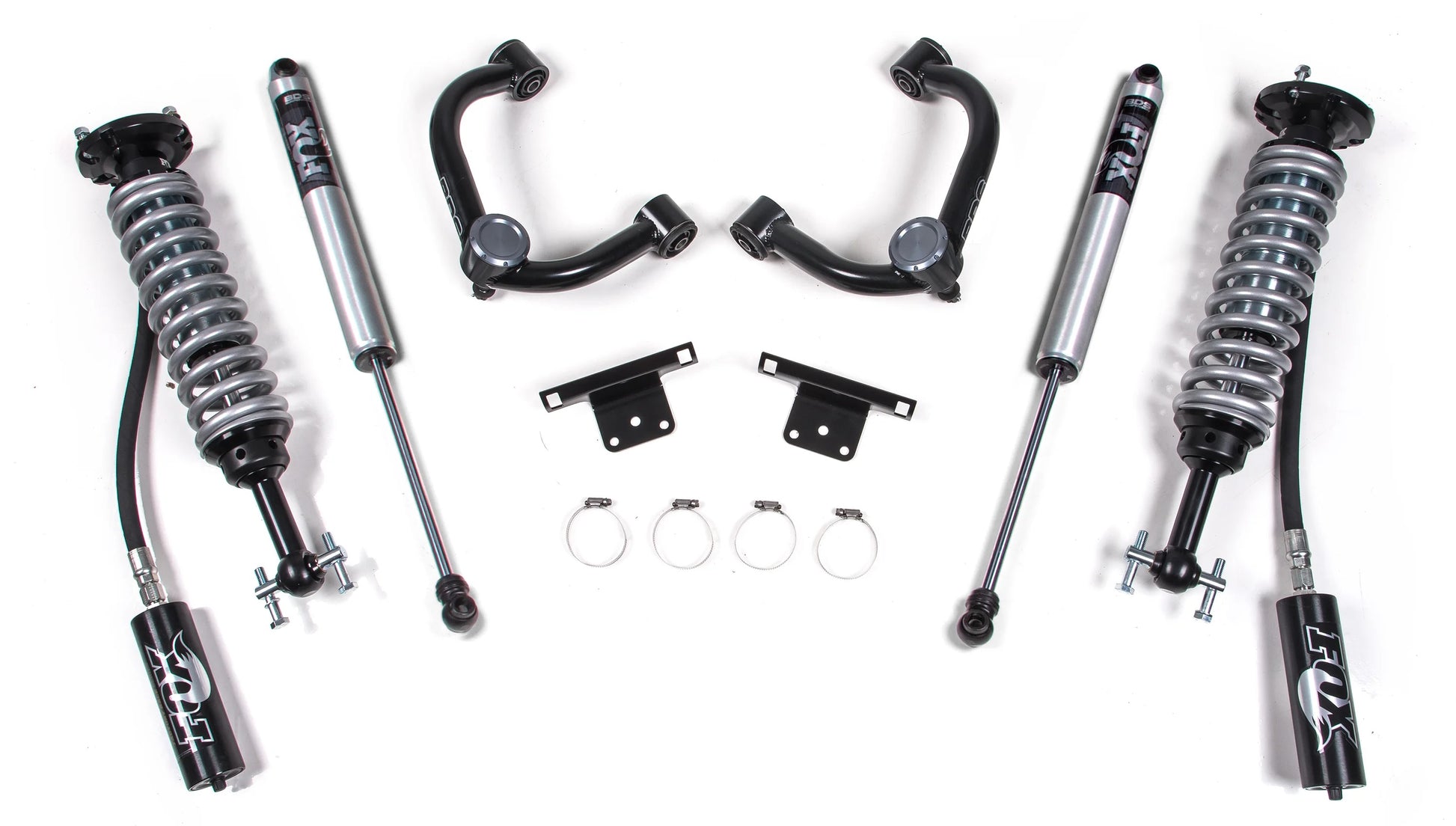

Brand New BDS Suspension 2" Leveling Kit with Fox 2.0 Struts & Rear Fox 2.0 Performance Shocks (Part #BDS1582FDSC).

Level out your 2014-2020 Ford F150 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the kit includes FOX 2.5 Factory Series remote reservoir coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

Compatible with:

• Ford:

  • 2014-2020 F-150 4WD

Notes:

• Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
• Will not fit HD models (7 lug).
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX reservoir shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• HD Upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• Provides level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2"
• Rear Lift Method: Shock
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
