BDS 17-19 FORD F-350 4WD,DRW,DIESEL,4" LIFT,BLOCK,4-LINK,FOX 2.0 SHOCKS

BDS 17-19 FORD F-350 4WD,DRW,DIESEL,4" LIFT,BLOCK,4-LINK,FOX 2.0 SHOCKS

STU BDS1577FS

$2,670.55
$2,670.55
View full details

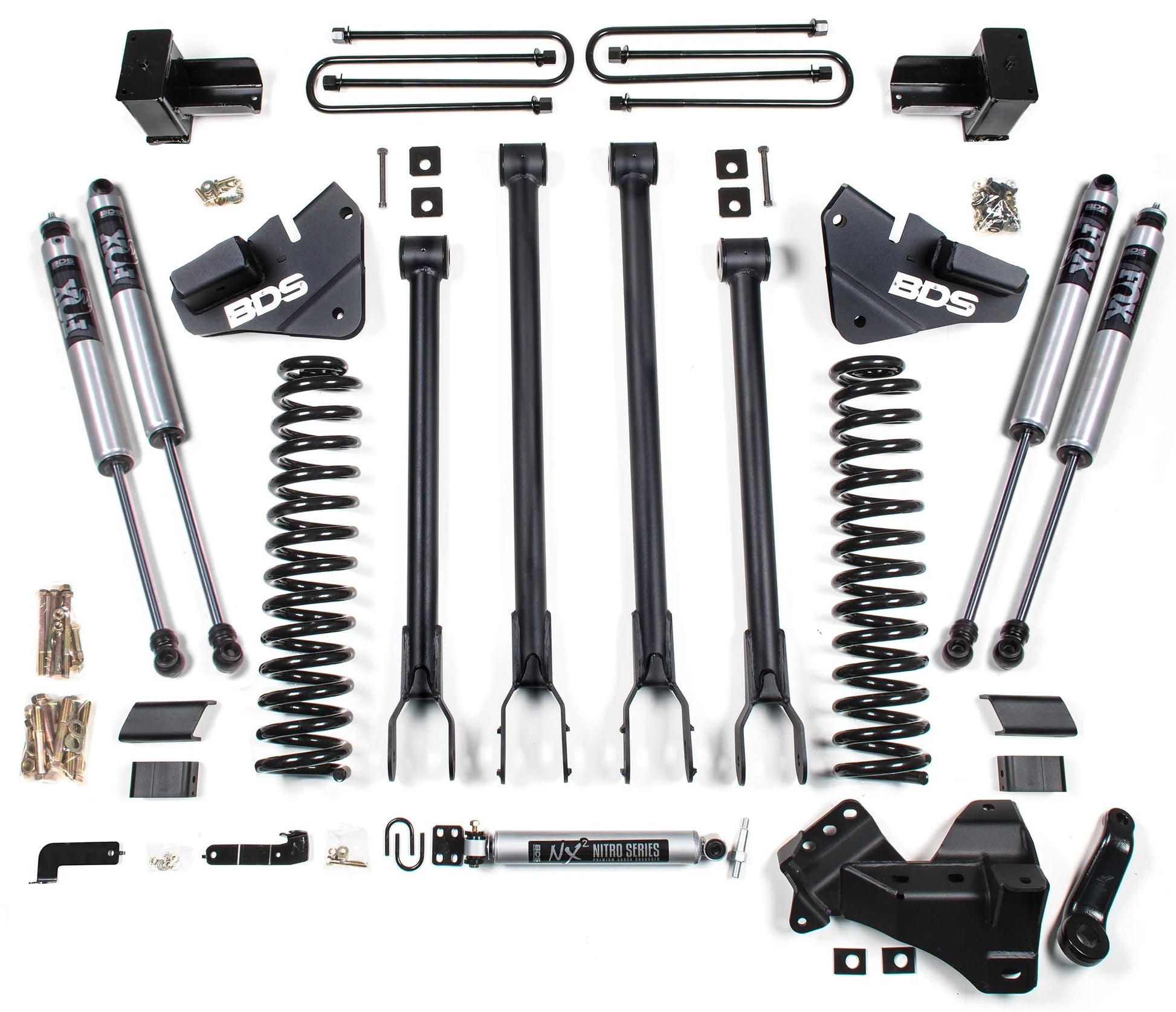

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Performance Shocks, 4-Link, & Block Kit (Part #BDS1577FS).

Raise the height of your 2017-2019 Ford F350 Dually "DRW" Super Duty diesel powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel Dual Rear Wheel
    • 2017-2019 F-350 Super Duty 4WD Diesel Dual Rear Wheel

Notes:

  • Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups
  • Installation requires a torque wrench capable of 405 ft-lbs
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here and here.
