BDS 20-22 FORD F-350 4WD,DRW,DIESEL,6" LIFT,4-LINK,BLOCK,NITRO SHOCKS

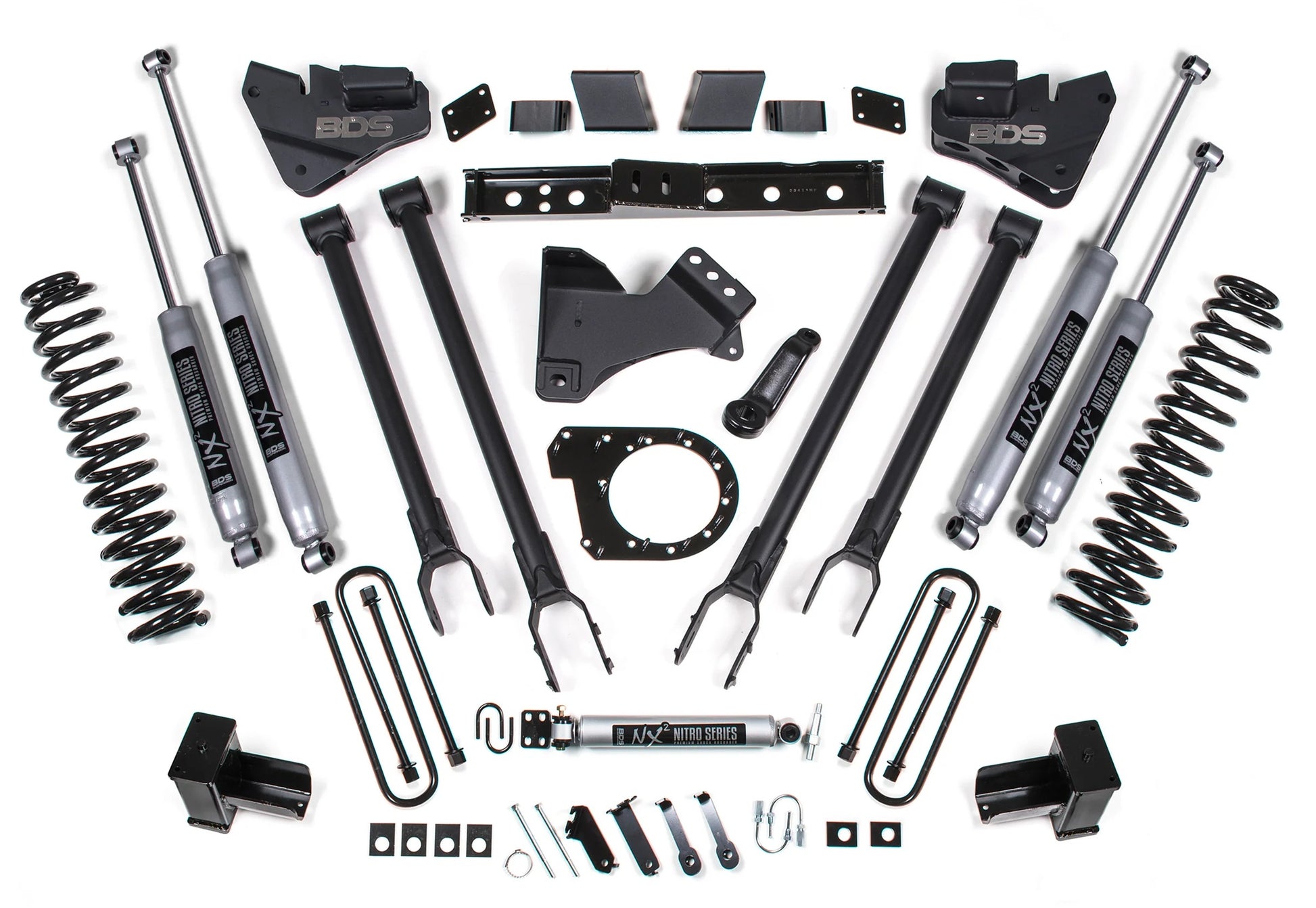

Brand New BDS Suspension 6" Lift Kit with NX Nitro Shocks, 4-Link, & Block Kit (Part #BDS1574H).

Take your dual rear wheel "DRW" Ford F350 Super Duty diesel truck to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 38" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:
• 2020-2022 F-350 Super Duty 4WD Diesel with Dual Rear Wheels

• Dually Models Only
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• 38 x 13.50 tires may require minor trimming.
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
• Recommended Tires & Wheels (Trimming may be required): 38 x 13.5 with 20 x 9 and 5 in. Backspace or 38 x 13.5 with 20 x 10 and 5 in. Backspace
