BDS 20-22 FORD F-350 4WD,DRW,DIESEL,6" LIFT,4-LINK,BLOCK,FOX 2.5 COIL,FOX 2.0

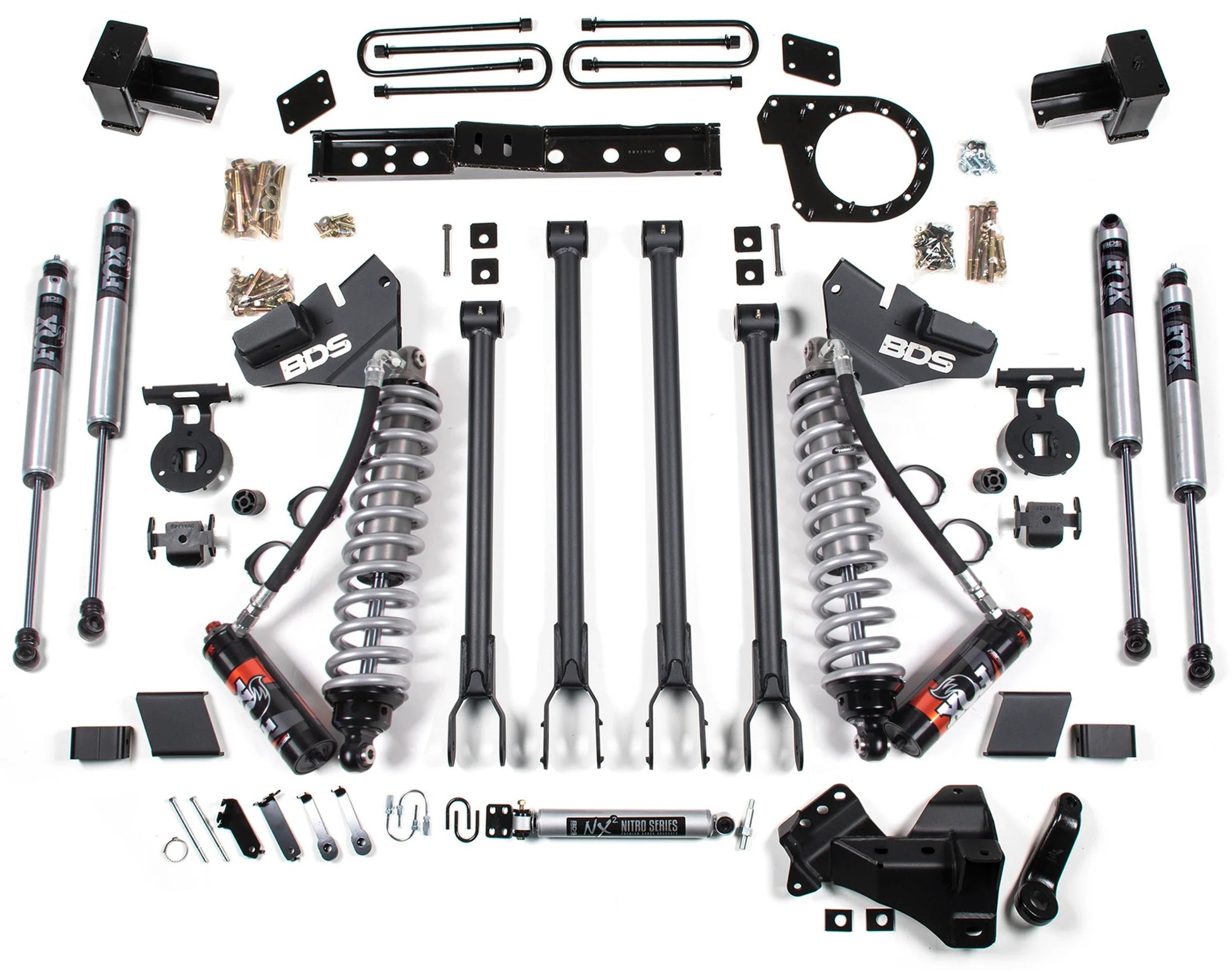

Brand New BDS Suspension 6" Lift Kit with Fox 2.5 Coilovers, 4-Link, Rear Fox 2.0 Performance Shocks, & Block Kit (Part #BDS1574FPE).

Raise the bar and take your dual rear wheel "DRW" Ford F350 Super Duty diesel truck to the next level with this 6-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 38" tires.

Up front the lift kit includes FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.0 shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.

Fits:

• Ford:
• 2020-2022 F-350 Super Duty 4WD Diesel with Dual Rear Wheels

• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
• Dually Diesel Models Only
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• 38 x 13.50 tires may require minor trimming.
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
• Recommended Tires & Wheels (Trimming may be required): 38 x 13.5 with and in. Backspace
