BDS 20-22 FORD F-250,F-350 SUPER 4WD,GAS,5" LIFT,4" BLOCK,4-LINK,NITRO SHOCKS

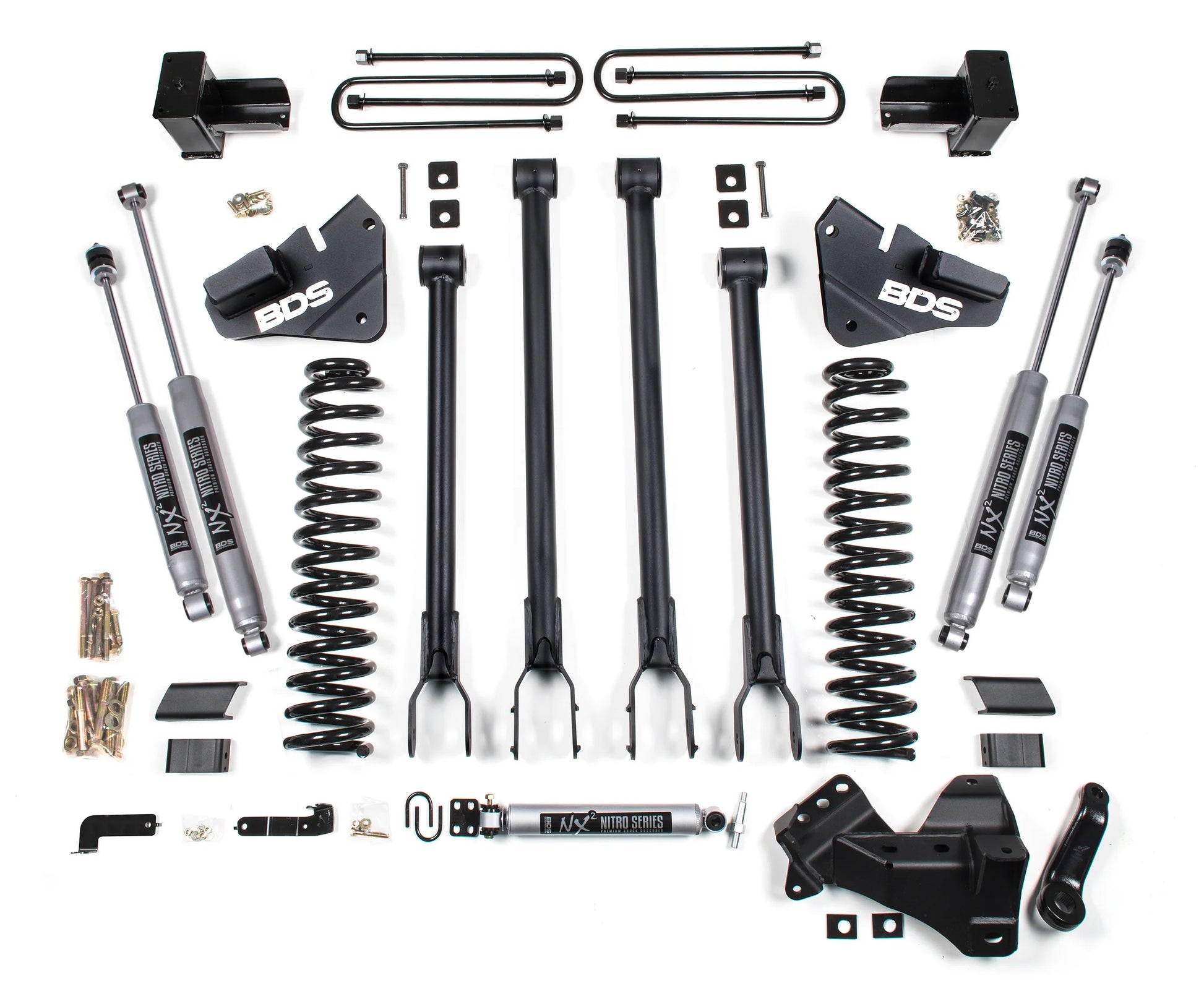

Brand New BDS Suspension 5" Lift Kit with NX Nitro Shocks, 4-Link, & Block Kit (Part #BDS1568H).

Raise the height of your Ford Super Duty gas powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:
• 2020-2022 F-250 Super Duty 4WD Gas
• 2020-2022 F-350 Super Duty 4WD Gas

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.
• Front exhaust modification may be required to clear the front drive shaft
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace
