BDS 2020-2022 FORD F-350 SUPER DRW,4WD,GAS 4" RADIUS ARM LIFT KIT,NITRO SHOCKS

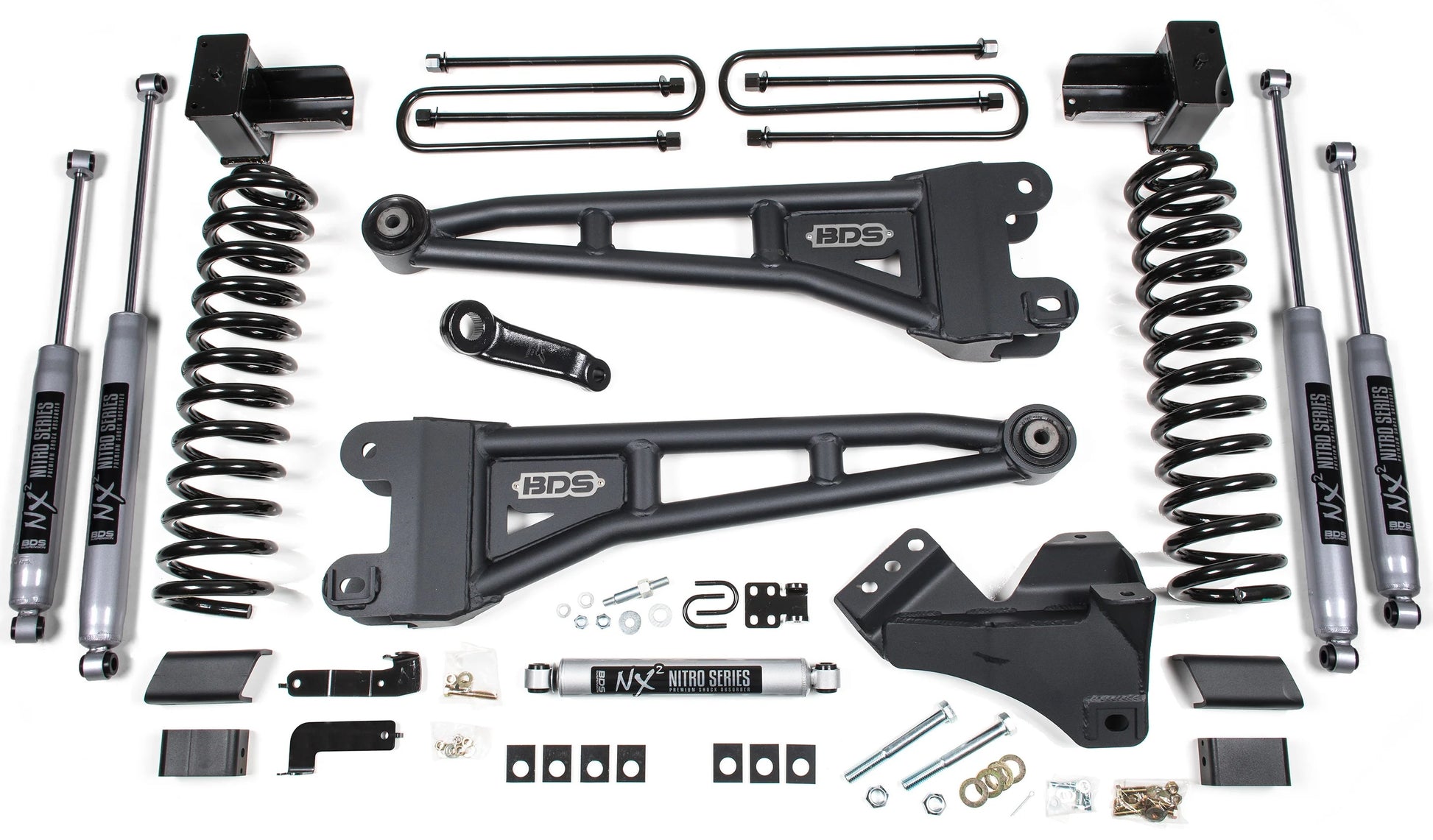

Brand New BDS Suspension 4" Radius Arm Lift Kit with NX Nitro Shocks & Block Kit (Part #BDS1564H).

Improve the ride on your Ford F350 Dually Super Duty gas truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:
• 2020-2022 F-350 Super Duty 4WD Gas with Dual Rear Wheels

• Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• Front exhaust modification may be required to clear the front drive shaft
• Torque wrench capable of 405 ft-lbs required.
• 37 x 12.50 tires may require minor trimming.
• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace
