BDS 20-22 FORD F-350 SUPER DRW,4WD,DIESEL 4" RADIUS LIFT,FOX 2.5,REAR FOX 2.0

BDS 20-22 FORD F-350 SUPER DRW,4WD,DIESEL 4" RADIUS LIFT,FOX 2.5,REAR FOX 2.0

STU BDS1563FPE

$4,590.50
$4,590.50
View full details

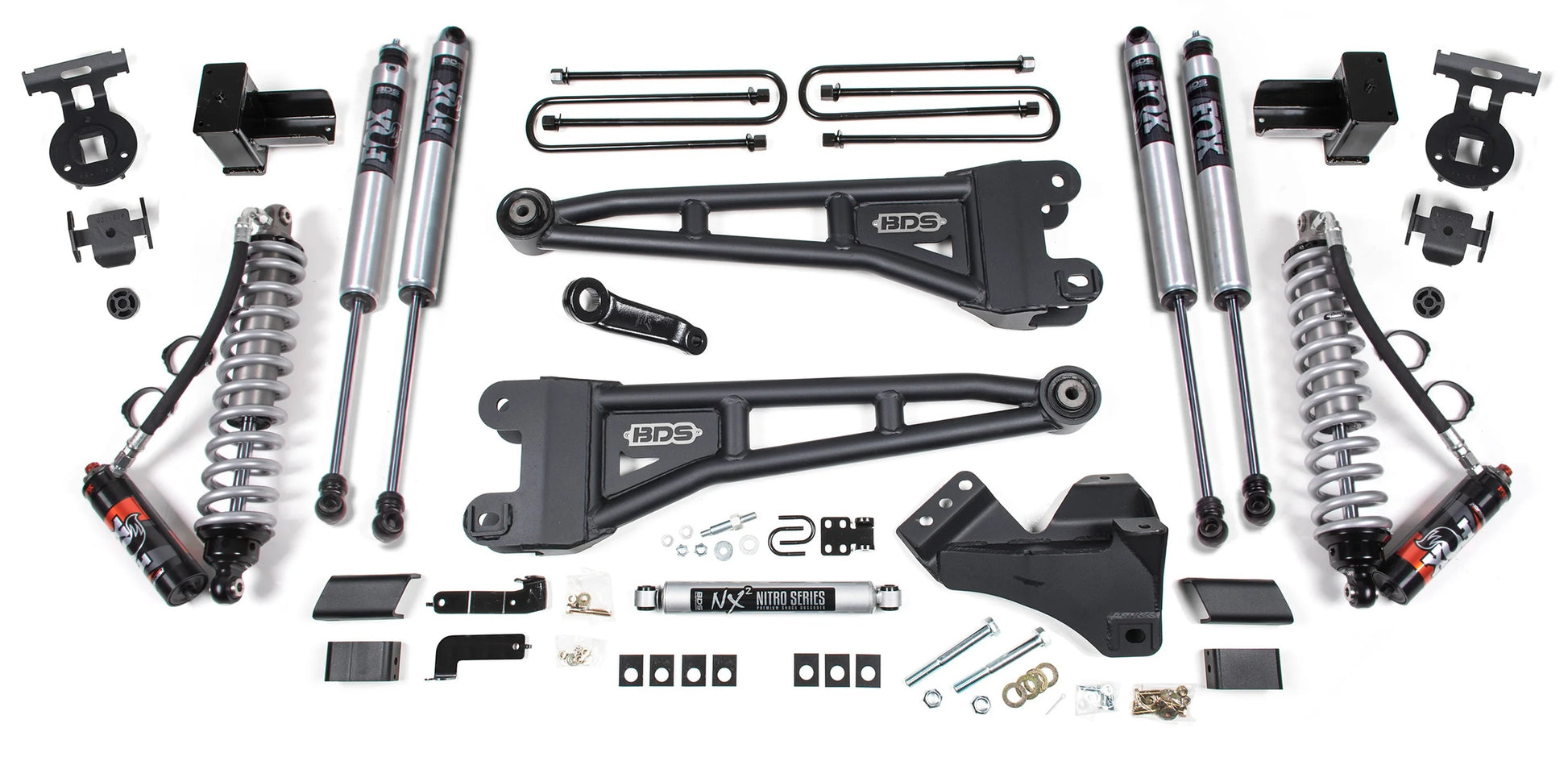

Brand New BDS Suspension 4" Radius Arm Lift Kit with Fox 2.5 Coilovers, Rear Fox 2.0 Performance Shocks, & Block Kit (Part #BDS1563FPE).

Built to outperform, upgrade your Ford F350 Dually Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

Fits:

  • Ford:
    • 2020-2022 F-350 Super Duty 4WD Diesel with Dual Rear Wheels

Notes:

  • Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • Torque wrench capable of 405 ft-lbs required.
  • 37 x 12.50 tires may require minor trimming.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace

Features:

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"
You can view and download the assembly instruction booklet here.
