BDS 2017-2019 FORD F-250,F-350,4WD,GAS 4" RADIUS LIFT KIT,LEAFS,NITRO SHOCKS

BDS 2017-2019 FORD F-250,F-350,4WD,GAS 4" RADIUS LIFT KIT,LEAFS,NITRO SHOCKS

STU BDS1560H

$2,685.65
$2,685.65
View full details

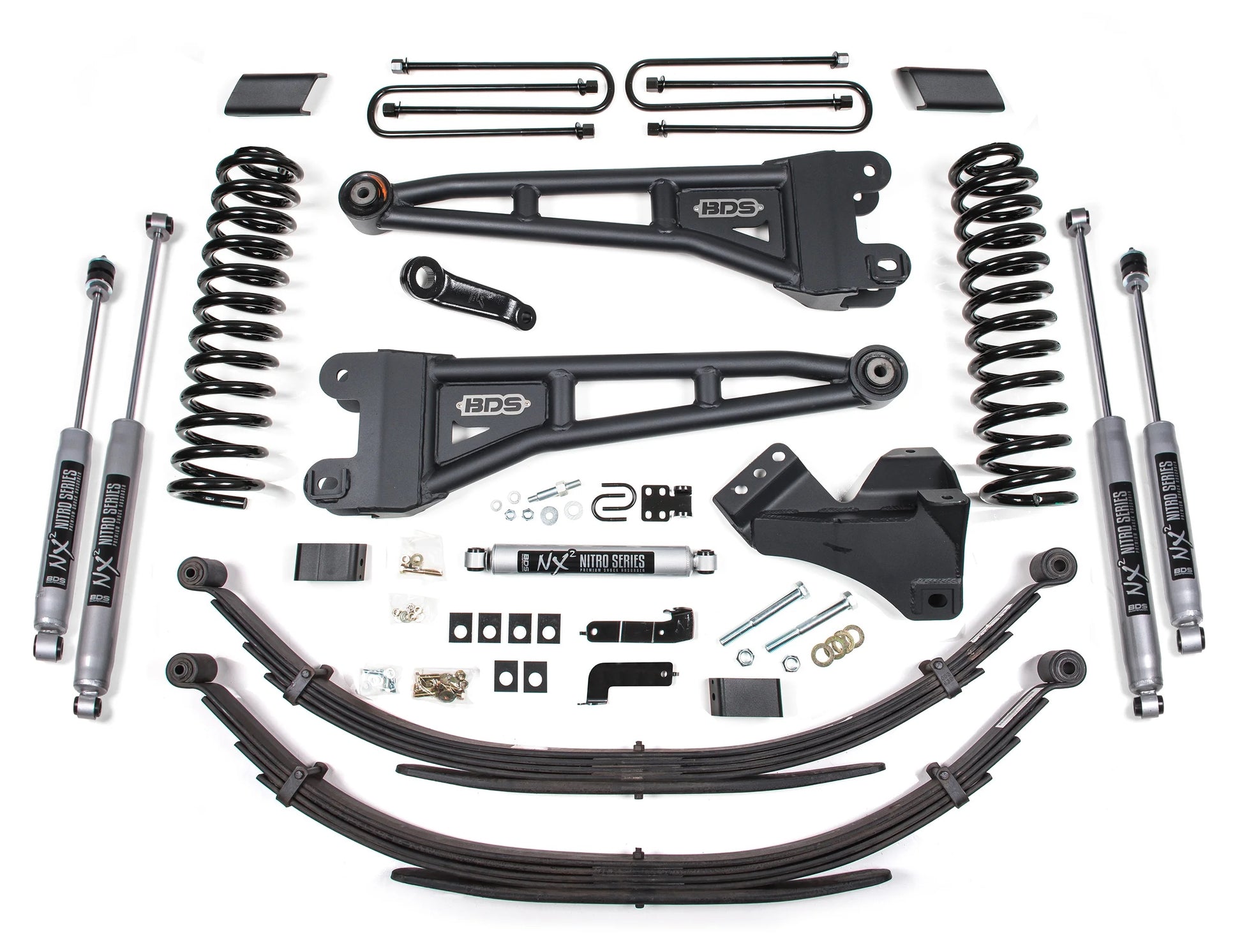

Brand New BDS Suspension 4" Radius Arm Lift Kit with NX Nitro Shocks & Leaf Springs (Part #BDS1560H).

Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty gas powered truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes leaf springs, longer u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Gas
    • 2017-2019 F-350 Super Duty 4WD Gas

Notes:

  • Front exhaust modification may be required to clear front drive shaft
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 37 x 12.50 tires may require minor trimming.
  • Fits SRW models only.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Leaf Springs:

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
