BDS 2017-2019 FORD F-250,F-350,4WD,GAS 4" LIFT KIT,4-LINK,LEAFS,NITRO SHOCKS

BDS 2017-2019 FORD F-250,F-350,4WD,GAS 4" LIFT KIT,4-LINK,LEAFS,NITRO SHOCKS

STU BDS1559H

$3,077.65
$3,077.65
View full details

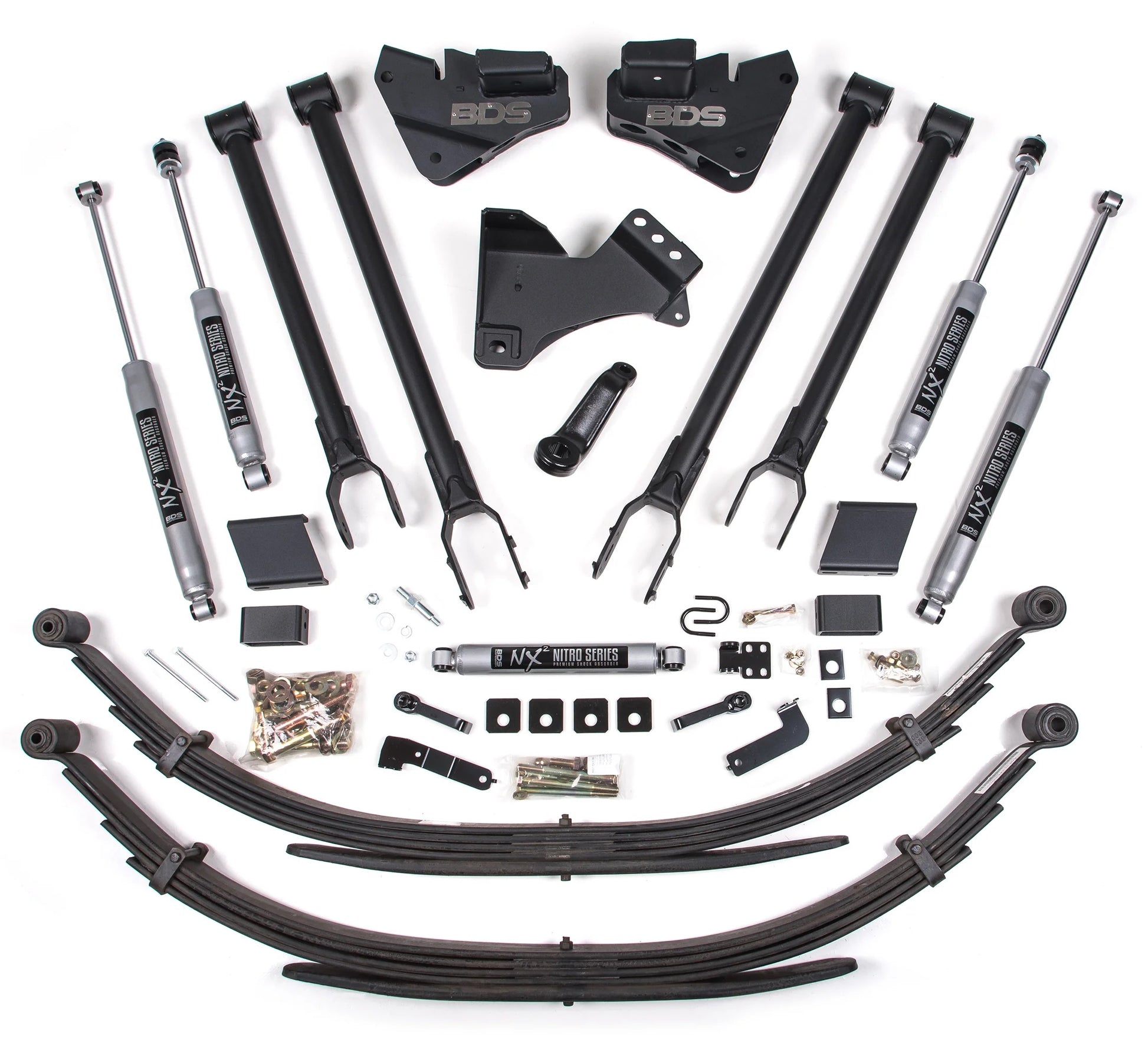

Brand New BDS Suspension 4" Lift Kit with NX Nitro Shocks, 4-Link Conversion, & Leaf Springs (Part #BDS1559H).

Raise the bar on your 2017-2019 Ford F250 or F350 Super Duty 4WD Gas truck by installing a BDS 4 inch Lift Kit with 4-Link Upgrade. Full length 4" ProRide coil springs are used for the additional ride height and are paired with shocks for a smooth ride on any terrain. These new 4 inch 4-link systems allow for clearance of up to 37" tires. Take your 2017-2019 Ford Super Duty to the next level with BDS Suspension.

By converting the factory stamped steel radius arms over to the BDS 4-link design you are able to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4" steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. These arms use large greaseable bushings and come finished in a durable textured black powder coat.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Gas
    • 2017-2019 F-350 Super Duty 4WD Gas

Notes:

  • Fits SRW models only.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • ProRide front dual-rate coil springs to achieve front lift height.
  • 4-Link conversion offers additional strength and caster control during wheel travel.
  • Forged pitman arm and HD track bar bracket to correct steering angle and axle positioning.

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Leaf Springs:

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here.
