BDS 17-19 FORD F-250,F-350,4WD,DIESEL 4" RADIUS LIFT KIT,LEAFS,FOX 2.0 SHOCKS

BDS 17-19 FORD F-250,F-350,4WD,DIESEL 4" RADIUS LIFT KIT,LEAFS,FOX 2.0 SHOCKS

STU BDS1557FS

$3,230.45
$3,230.45
View full details

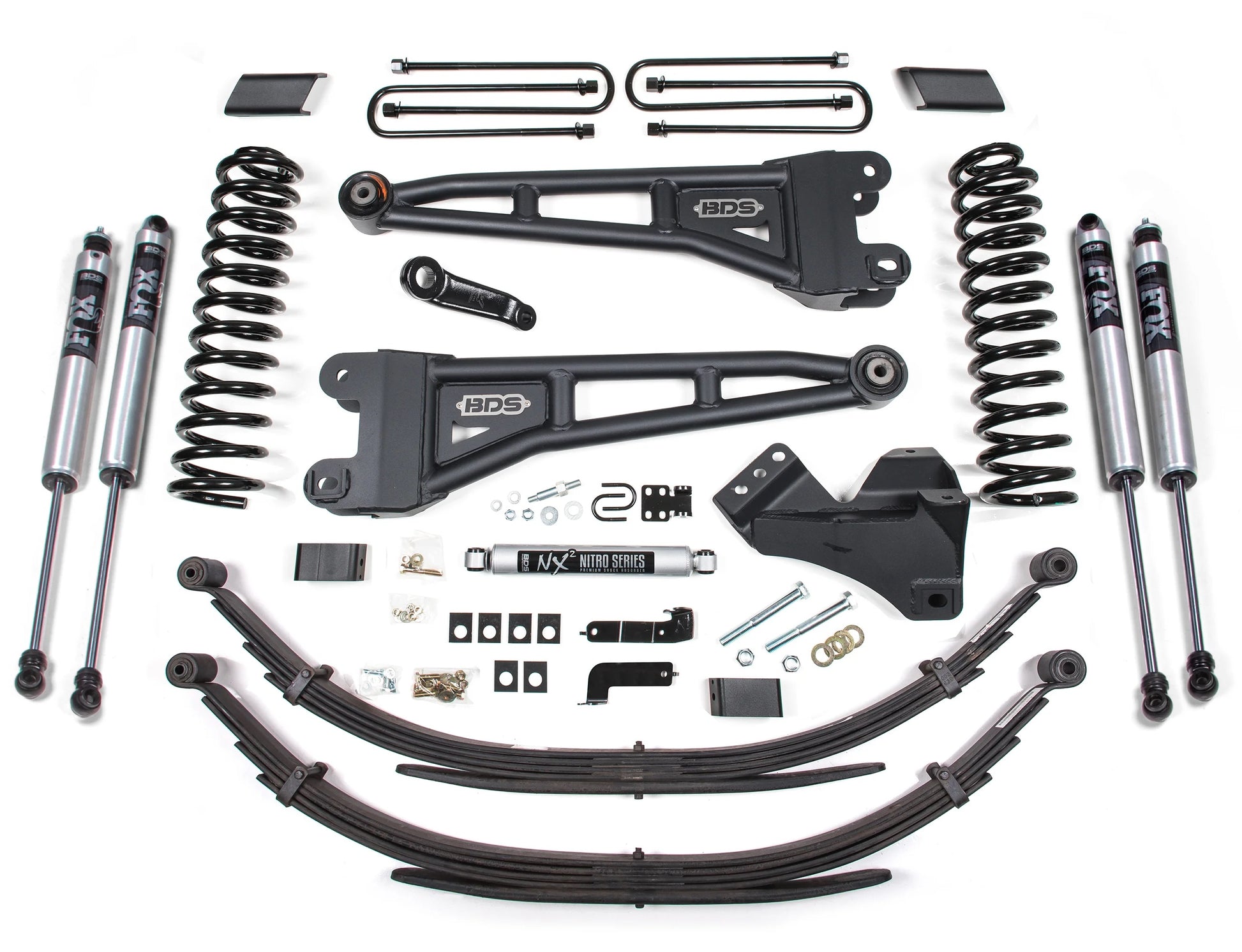

Brand New BDS Suspension Radius Arm 4" Lift Kit with Fox 2.0 Performance Shocks & Leaf Springs (Part #BDS1557FS).

Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes leaf springs, longer u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel
    • 2017-2019 F-350 Super Duty 4WD Diesel

Notes:

  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 37 x 12.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  • If your truck is equipped with a factory rear sway bar add: 123005
  • Fits SRW models only.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Leaf Springs:

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 4"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 5"
You can view and download the assembly instruction booklet here and here.
