BDS 17-19 FORD F-250,F-350,4WD,DIESEL 4" RADIUS LIFT,LEAFS,FOX 2.5,REAR FOX 2.0

BDS 17-19 FORD F-250,F-350,4WD,DIESEL 4" RADIUS LIFT,LEAFS,FOX 2.5,REAR FOX 2.0

STU BDS1557FPE

$5,550.40
$5,550.40
View full details

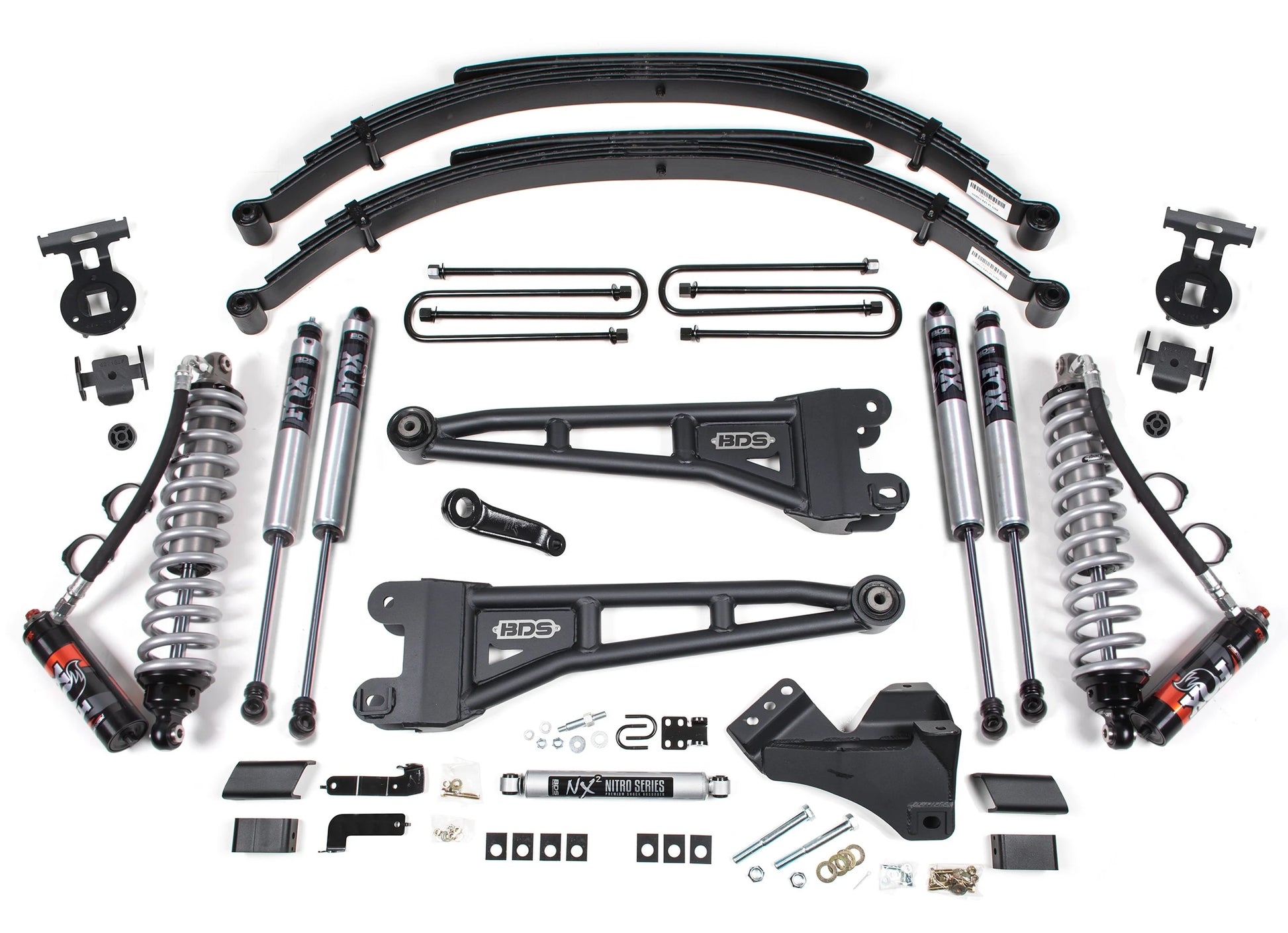

Brand New BDS Suspension Radius Arm 4" Lift Kit with Fox 2.5 Coilovers, Rear Fox 2.0 Performance Shocks, & Leaf Springs (Part #BDS1557FPE).

Built to outperform, upgrade your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coilover conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific FOX 2.5 coilover shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets, and a matching set of FOX Performance shocks.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel
    • 2017-2019 F-350 Super Duty 4WD Diesel

Notes:

  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
    37 x 12.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  • If your truck is equipped with a factory rear sway bar add: 123005
  • Fits SRW models only.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Leaf Springs:

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 4"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 3"
You can view and download the assembly instruction booklet here and here.
