BDS 17-19 FORD F-250,F-350,4WD,DIESEL 4" LIFT KIT,4-LINK,LEAFS,NITRO SHOCKS

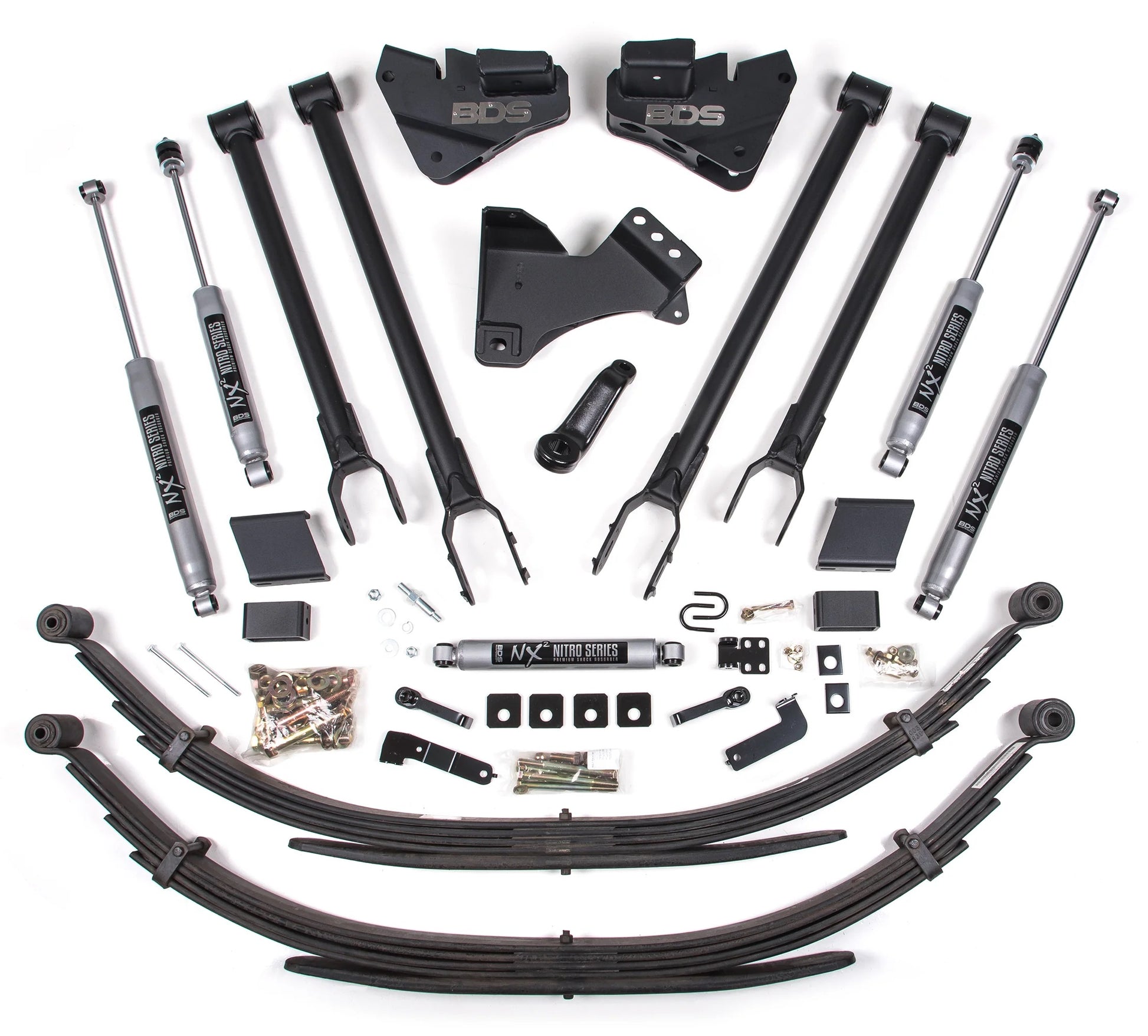

Brand New BDS Suspension 4" Lift Kit with 4-Link, NX Nitro Shocks, & Leaf Springs (Part #BDS1555H).

Raise the height of your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes leaf springs, longer u-bolts, and brake line brackets.

Fits:

• Ford:
• 2017-2019 F-250 Super Duty 4WD Diesel
• 2017-2019 F-350 Super Duty 4WD Diesel

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 37 x 12.50 tires may require minor trimming.
• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• If your truck is equipped with a factory rear sway bar add: 123005
• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace
