BDS 15-20 FORD F-150,4WD,2" LEVELING KIT,FOX 2.5 COILOVERS,REAR FOX 2.5 ELITE

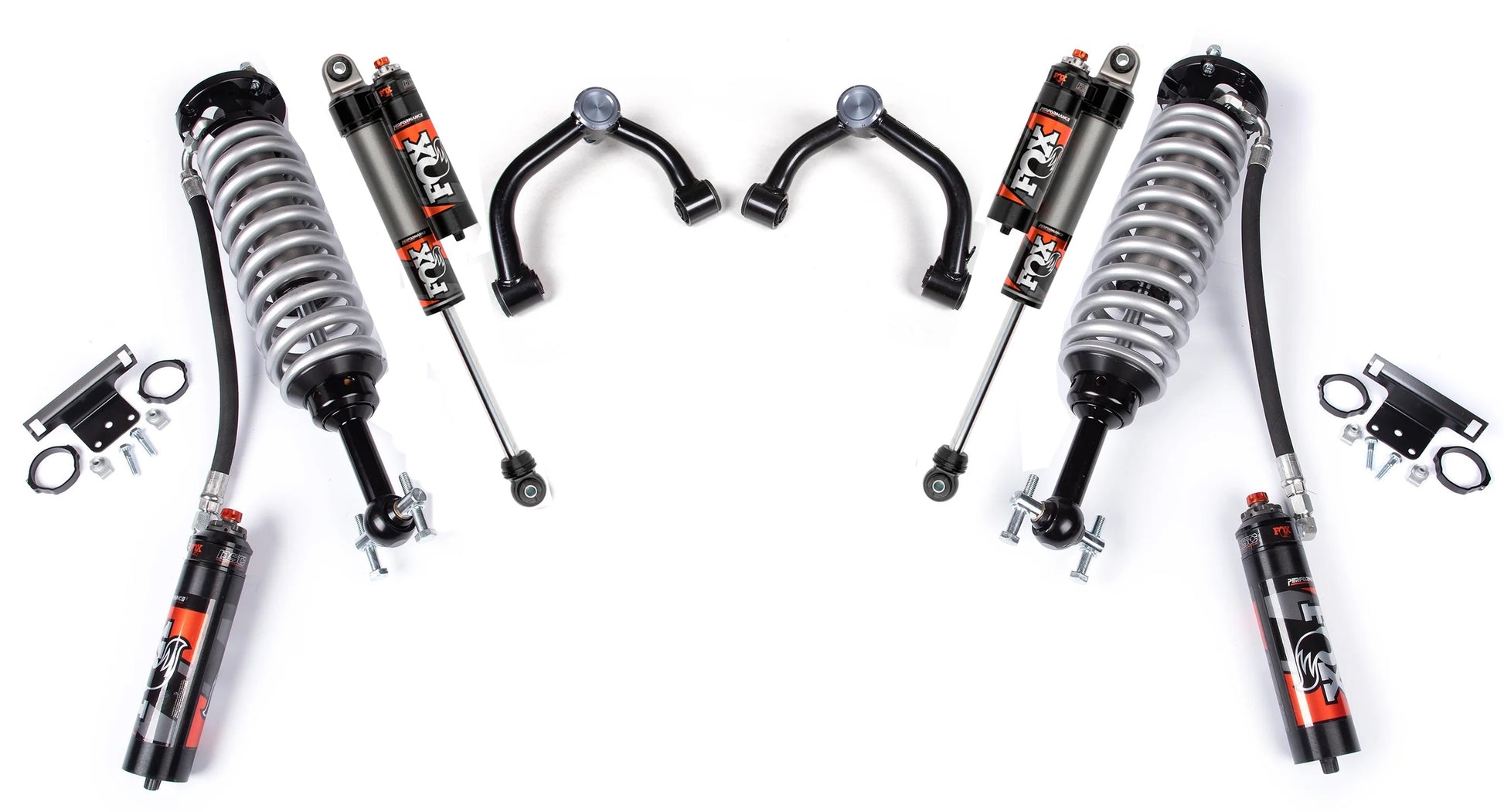

Brand New BDS Suspension 2" Leveling Kit with Fox 2.5 Coilovers & Rear Fox 2.5 Performance Elite Shocks (Part #BDS1553PES).

Level out your 2015-2020 Ford F150 truck and improve the ride with this 2 inch performance suspension system featuring FOX Performance Elite Series 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes FOX Performance Elite Series 2.5 coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX shocks for the smoothest ride.

Compatible with:

• Ford:

  • 2015-2020 F-150 4WD

Notes:

• Will NOT work with trucks that have CCD (Continuous Controlled Damping)

• Excludes Raptor models

• 35" x 12.5" with 4.75" Wheel Backspacing Recommended

• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation.
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 20 x 9 and 5 in. Backspace or 35 x 12.5 with 20 x 9 and 4.75 in. Backspace

Features:

• HD upper control arms provide superior performance with increased wheel travel.

• Provides 2" of increased height along with a level stance.

• Fox Performance Elite coil overs feature DSC adjusters which allow for separate high and low speed compression adjustment translating into personalized ride comfort as well as superior towing or hauling ride quality.

• Works with OE driver assist systems.

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Strut
• Front Lift Height: 2"
• Rear Lift Method: Shocks
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
