BDS 2019-2023 FORD RANGER,4WD,2" LEVELING KIT,NITRO SHOCKS

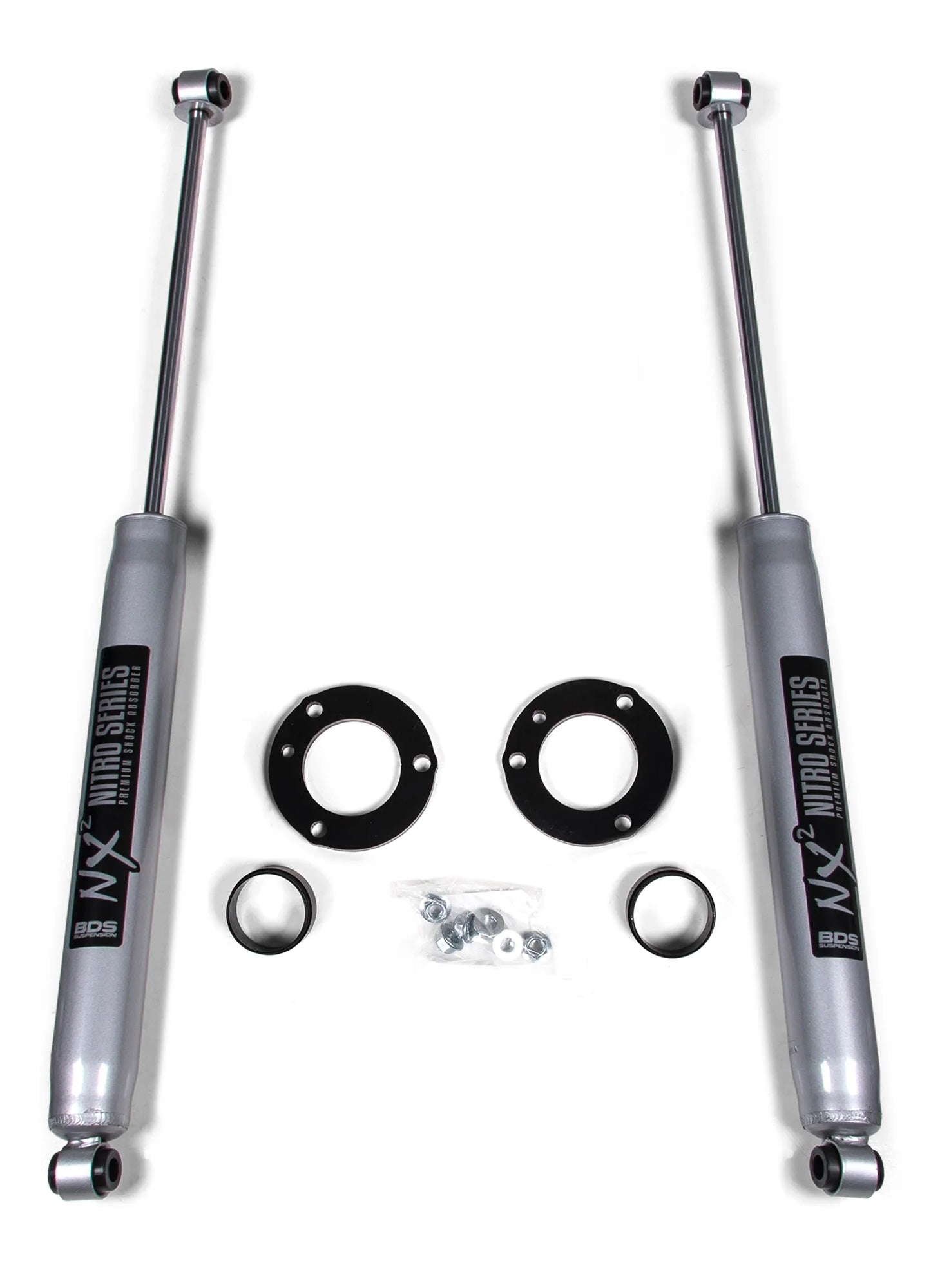

Brand New BDS Suspension 2" Leveling Kit with Front Strut Spacers & Nitro Shocks (Part #BDS1544H).

Level the front of your 2019-2023 Ford Ranger truck by installing this 2-inch leveling kit from BDS. Specially designed for the new Ranger, this 2" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer. The lift kit includes steel top mount strut spacers and pre-load spacers. Give your new Ranger the extra boost with this 2" leveling kit from BDS Suspension.

Compatible with:

• Ford:

  • 2019-2023 Ranger 4WD

Notes:

• Aftermarket wheels must have a minimum of 93.1mm center hub bore.
• Recommended Tires & Wheels (Trimming May Be Required): 285 / 70 with 17 x 8 and in. Backspace or 285 / 65 with 18 x 9 and in. Backspace

Features:

• Easy, 100% Bolt-on installation
• Maintains factory like ride quality

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Strut Spacer
• Front Lift Height: 2"
• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
