BDS 2017-2019 F250,F350 4WD 2.5" RADIUS ARM SUSP. LIFT,1" REAR,FOX COILOVER

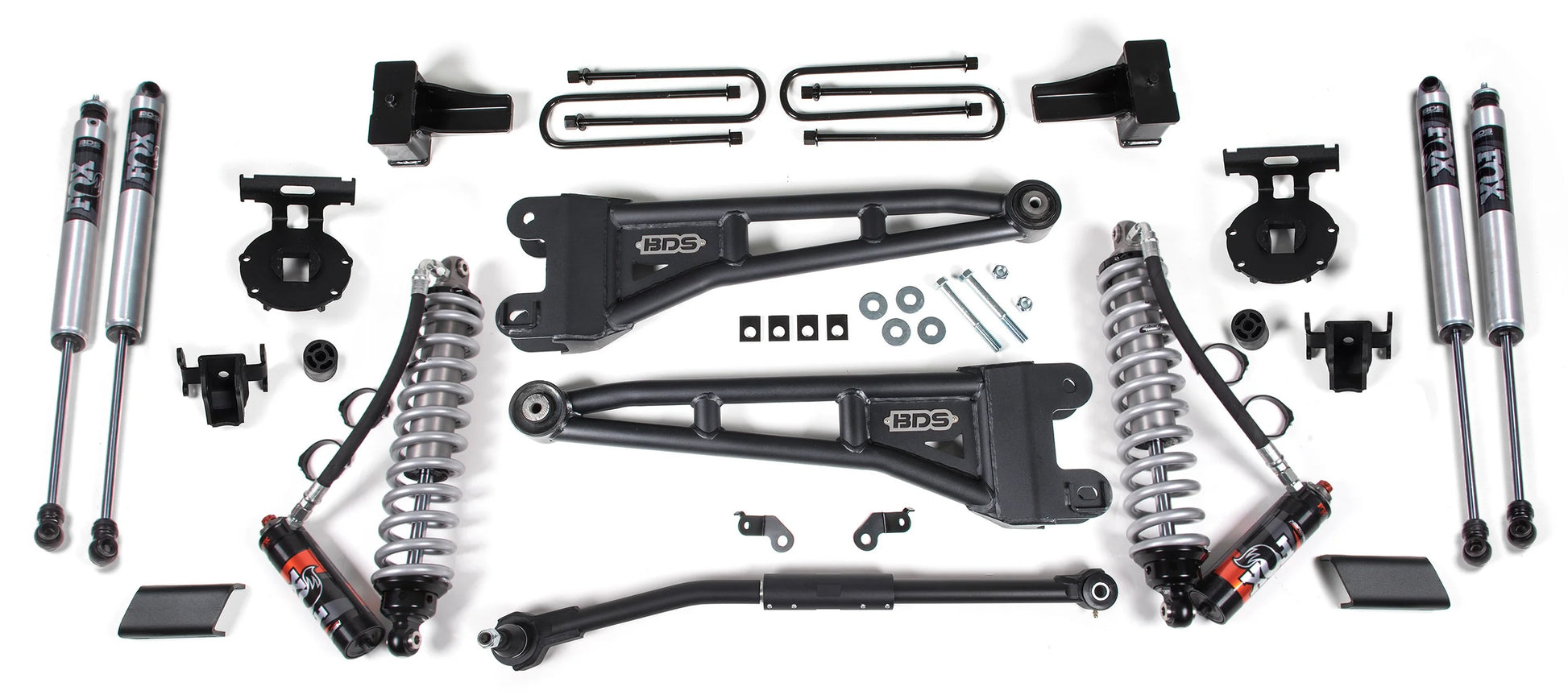

BRAND NEW BDS SUSPENSION 2.5" RADIUS ARM LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE COIL-OVER CONVERSION (PART #BDS1543FPE).

THIS 2.5-INCH RADIUS ARM LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE COIL-OVER SHOCKS FOR FORD F250 AND F350 SUPER DUTY DIESEL POWERED TRUCK FROM BDS SUSPENSION SETS A NEW STANDARD BY ENHANCING THE TRUCKS STANCE, PERFORMANCE, AND CAPABILITY. THE KIT PROVIDES ALL THE NECESSARY COMPONENTS TO ENABLE YOUR TRUCK TO ACCOMMODATE UP TO 35" TIRES WHILE IMPROVING ITS PERFORMANCE.

UP FRONT THE LIFT KIT INCLUDES DIESEL-SPECIFIC FOX 2.5 COIL-OVER SHOCKS, HEAVY DUTY REPLACEMENT RADIUS ARMS, HIGH STRENGTH 1-3/8 INCH SOLID STEEL TRACK BAR FOR STEERING CORRECTION, SWAY BAR RELOCATION, BRAKE LINE BRACKETS. IN THE REAR THIS KIT UTILIZES A HIGH-STRENGTH FABRICATED LIFT BLOCK, LONGER U-BOLTS AND A MATCHING SET OF FOX PERFORMANCE SHOCKS.

FOX 2.5 PERFORMANCE ELITE SHOCKS OFFER NEXT LEVEL PERFORMANCE FOR ON-ROAD COMFORT AND OFF-ROAD COMFORT CAPABILITY. TUNED AND READY TO INSTALL RIGHT OUT OF THE BOX, THESE BOLT-ON 2.5-INCH DIAMETER SHOCKS ARE BUILT FOR ABUSE AND PACKED WITH RACE-PROVEN TECHNOLOGY. THEY INCLUDE A REMOTE RESERVOIR FOR ADDITIONAL FLUID CAPACITY TO KEEP YOUR SHOCKS RUNNING COOL SO YOU CAN PUSH THE LIMITS IN THE ROUGH TERRAIN. THE DSC ADJUSTER ADDS REMARKABLE VERSATILITY AND PRECISE TUNING WITH A SIMPLE TWIST OF EITHER TWO ADJUSTER KNOBS, OFFERING 10 SEPARATE LOW-SPEED AND 12 HIGH-SPEED COMPRESSION LEVELS, WITH A BLACK ANODIZED ALUMINUM RESERVOIR TO INCREASE COOLING EFFICIENCY.

IN PLACE OF THE FACTORY STAMPED STEEL RADIUS ARMS BDS SUPPLIES A PAIR OF HIGH-STRENGTH TUBULAR RADIUS ARMS. THESE ARMS MOUNT INTO THE FACTORY LOCATION AND OFFER CASTER ADJUSTMENT FOR A WIDE RANGE OF LIFT HEIGHTS ALONG WITH AN OE-STYLE RUBBER BUSHING AT THE FRAME MOUNT FOR SMOOTH, QUIET, SERVICE-FREE OPERATION.

MAINTAIN PROPER HANDLING AND STEERING GEOMETRY WITH THE BDS HIGH STRENGTH ADJUSTABLE TRACK BAR THAT ALLOWS YOU TO RECENTER THE FRONT AXLE AT A VARIETY OF LIFT HEIGHTS. BUILT FROM 1-3/8" SOLID STEEL STOCK, THE TRACK BAR COMES PRE-ASSEMBLED WITH BUSHINGS AND IS READY TO BOLT INTO THE FACTORY MOUNTING POINTS.

COMPATIBLE WITH:

• FORD:
• 2017-2019 F-250 SUPER DUTY 4WD DIESEL
• 2017-2019 F-350 SUPER DUTY 4WD DIESEL

SPECS:

• FRONT LIFT METHOD: COIL-OVER
• REAR LIFT METHOD: BLOCK
• SHOCKS INCLUDED: YES
• FRONT LIFT HEIGHT: 2.5"
• REAR LIFT HEIGHT: 1"

NOTES:

• COILOVERS ARE DESIGNED FOR DIESEL APPLICATIONS ONLY.
• MOUNTING LARGER TIRES ON FACTORY WHEELS IS NOT RECOMMENDED DUE TO POTENTIAL BRAKE LINE CLEARANCE ISSUES.
• FACTORY TRACK BAR MOUNTING BOLT REQUIRES 405 FT-LBS OF TORQUE, PLAN AHEAD ON HOW TO ACHIEVE THIS TORQUE SPEC.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE, HERE, AND HERE.
