BDS 2017-2019 FORD F-250,F-350 SUPER,4WD,DIESEL 8" LIFT,4-LINK,NITRO SHOCKS

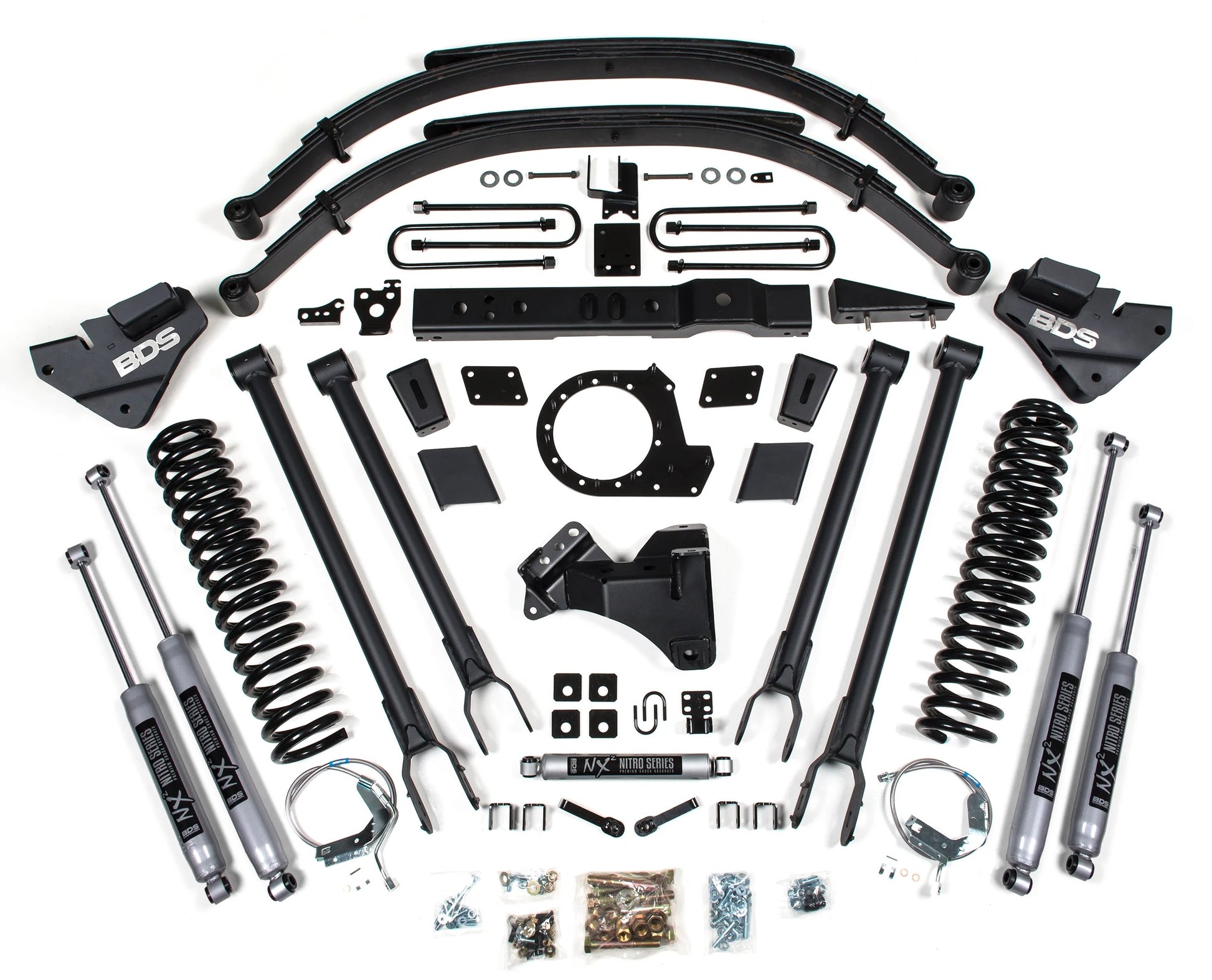

Brand New BDS Suspension 8" Lift Kit with NX Nitro Shocks, 4-Link, & Leaf Springs (Part #BDS1541H).

Up the ante of your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 8-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement BDS Glideride leaf springs, u-bolts, and brake line brackets.

Fits:

• Ford:
  • 2017-2019 F-250 Super Duty 4WD Diesel
  • 2017-2019 F-350 Super Duty 4WD Diesel

• The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
• If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
• 40x13.50 tires WILL require trimming.
• If your truck is equipped with a factory rear sway bar add BDS123808
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 38 x 15.5 with 20 x 10 and 5 in. Backspace or 40 x 13.5 with 20 x 10 and 5 in. Backspace

You can view and download the assembly instruction booklet here and here.
