BDS 2017-2019 FORD F-250,F-350 SUPER,4WD,DIESEL 8" LIFT,4-LINK,FOX 2.5 COILOVERS

BDS 2017-2019 FORD F-250,F-350 SUPER,4WD,DIESEL 8" LIFT,4-LINK,FOX 2.5 COILOVERS

STU BDS1541FPE

$6,701.50
$6,701.50
View full details

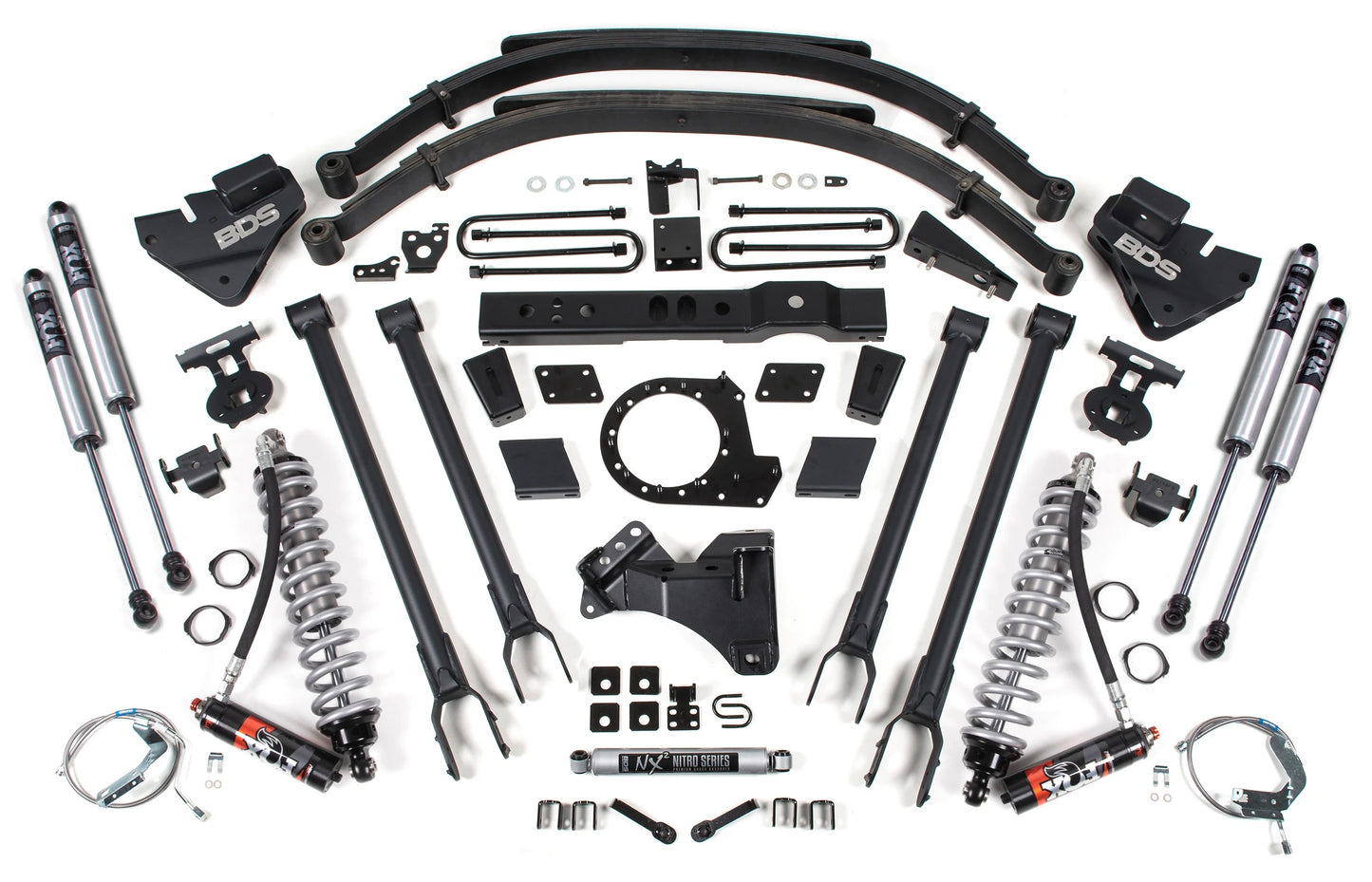

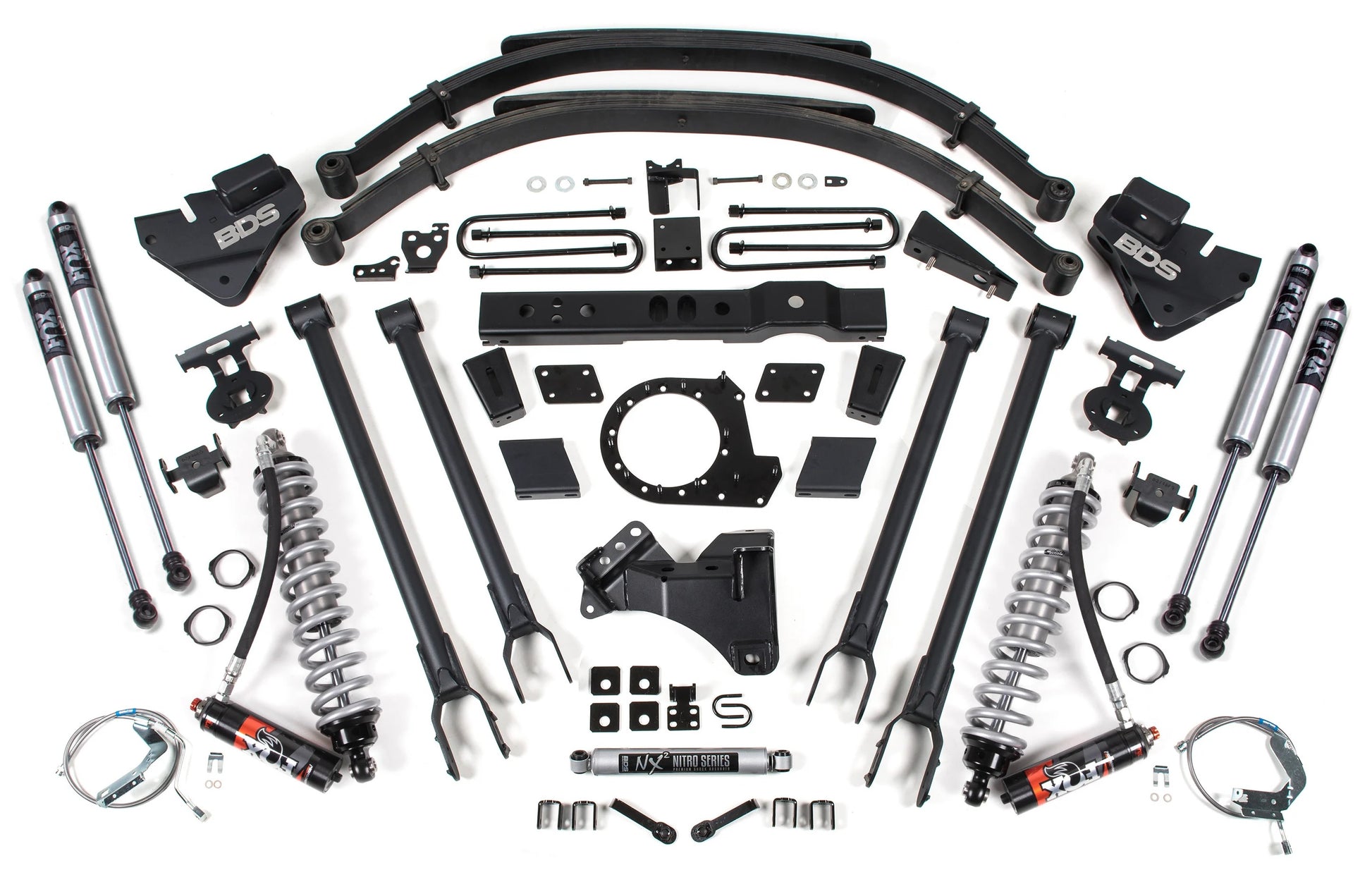

Brand New BDS Suspension 8" Lift Kit with Fox 2.5 Performance Elite Coilovers, 4-Link, & Leaf Springs (Part #BDS1541FPE).

Go to new heights with your 2017-2019 Ford F250 and F350 Super Duty diesel truck by installing this 8-inch 4-Link lift kit with FOX 2.5 Performance Elite coil-over shocks from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-overs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned FOX nitrogen charged secondary shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement BDS Glideride leaf springs, u-bolts, brake line brackets and a matching set of FOX Performance shocks. Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel
    • 2017-2019 F-350 Super Duty 4WD Diesel

Notes:

  • The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
  • If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
  • 40x13.50 tires WILL require trimming.
  • If your truck is equipped with a factory rear sway bar add BDS123808
  • The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
  • Fits SRW models only
  • Recommended Tires & Wheels (Trimming may be required): 38 x 15.5 with 20 x 10 and 5 in. Backspace or 40 x 13.5 with 20 x 10 and 5 in. Backspace

Features:

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series:



  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 8"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 7"

You can view and download the assembly instruction booklet here, here, and here.
