BDS 2015-2020 FORD F-150,4WD,4" LIFT KIT,CROSSMEMBER,4" BLOCK,NITRO SHOCKS

BDS 2015-2020 FORD F-150,4WD,4" LIFT KIT,CROSSMEMBER,4" BLOCK,NITRO SHOCKS

STU BDS1533H

$2,063.60
$2,063.60
View full details

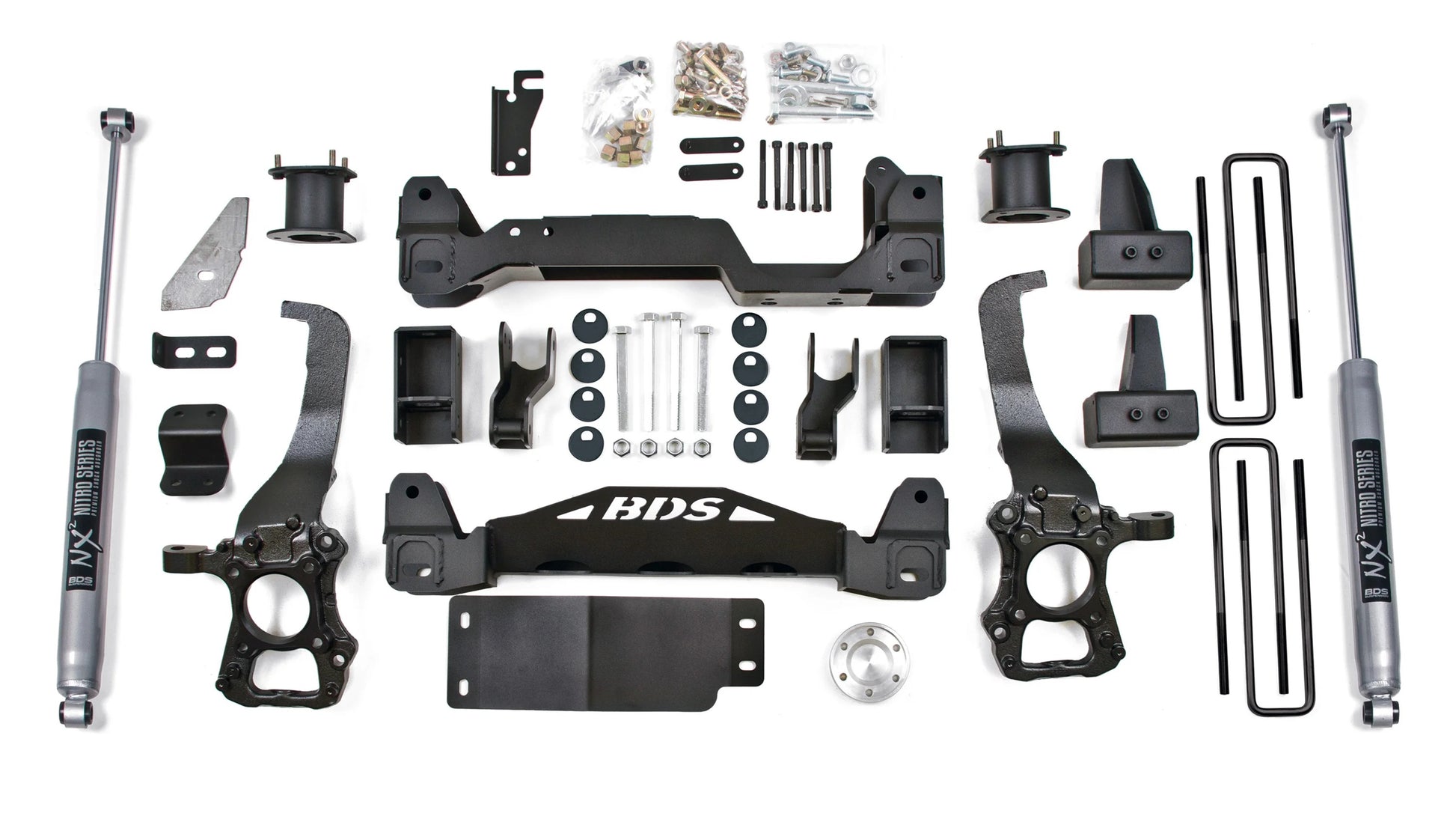

Brand New BDS Suspension 4" Lift Kit with NX Nitro Shocks & 4" Block Kit (Part #BDS1533H).

BDS steps up the performance and capability of the 2015-2020 Ford F150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance.

Fits:

  • Ford:
    • 2015-2020 F-150 4WD

Notes:

  • 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • E-brake bracket required for factory power steps (123018)
  • Block kits replace factory 1-1/4" block.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  • Will not fit HD models (7 lug).
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5.5 in. Backspace or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved off-road protection
  • Rear lift blocks and u-bolts to lift and level the stance

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here.
