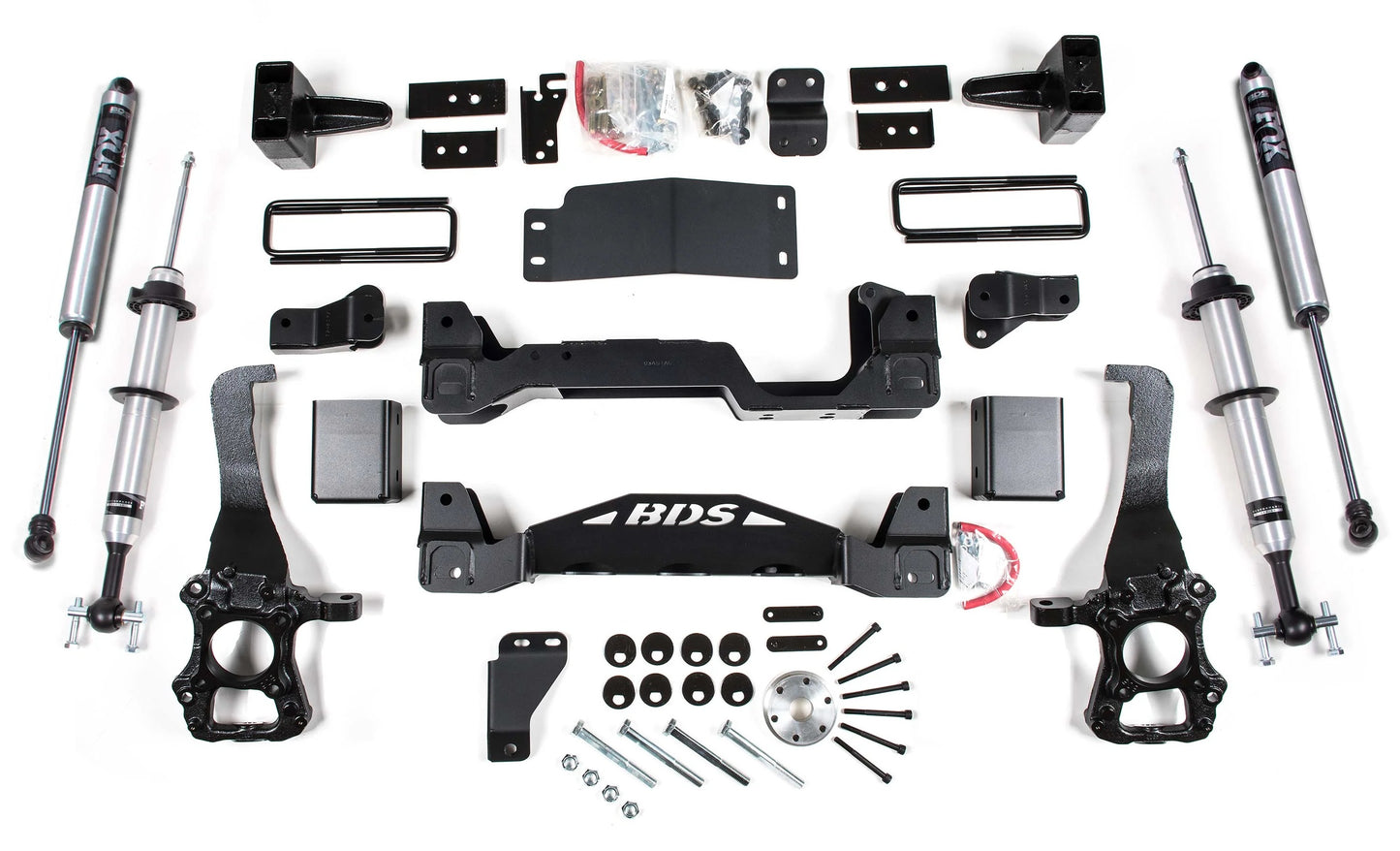

BDS 15-20 F150 4WD 6" SUSP LIFT KIT, 4" REAR,FOX 2.0 IFP PS SNAP RING FRONT,REAR

Brand New BDS Suspension 6" Lift Kit with FOX 2.0 IFP Strut & FOX 2.0 Rear Shocks with 5 Inch Block Kit (Part #BDS1532FSR).

Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

High Clearance Crossmembers: BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles: BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Fits:

• Ford:

  • 2015-2020 F-150 4WD


NOTE:

• 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.

• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.

• E-brake bracket required for factory power steps (123018)

• Block kits replace factory 1-1/4" block.

• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406

• Will not fit HD models (7 lug).
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 20 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving

• High clearance crossmembers improve strength and off-road capability

• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility

• Top mounted strut spacers to provide lift and install easily

• Differential skid plate for improved off-road protection

• Rear lift blocks and u-bolts to lift and level the stance
• FOX 2.0 Performance Series (Rear)

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish
• 5 Inch Block Kit

• Level to tail high appearance

Specs:

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6"
• Rear Lift Height: 5"

You can view and download the assembly/instruction booklet here.
