BDS 2015-2020 F150 4WD 6" LIFT KIT,FOX 2.0 SHOCKS

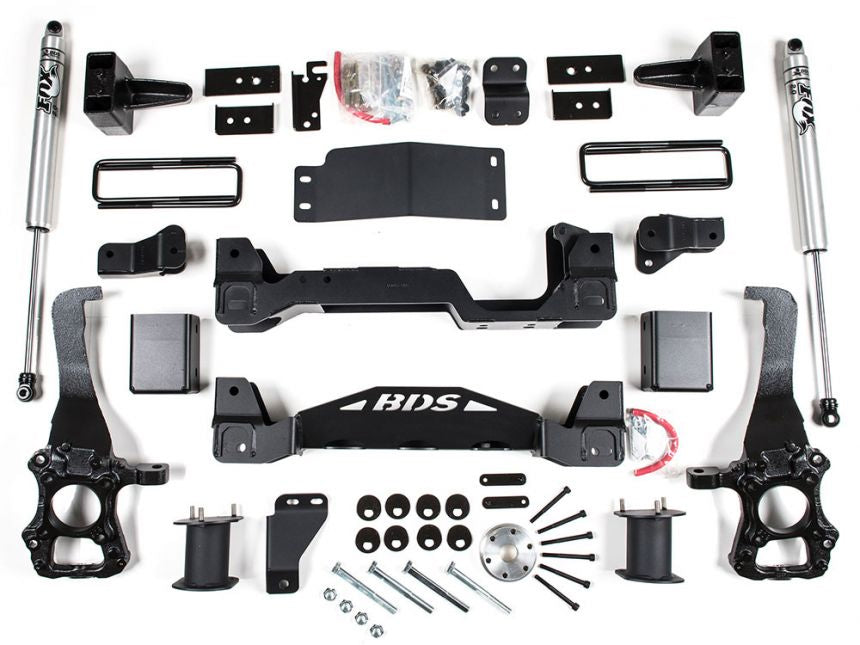

Brand New BDS Suspension 6" Lift Kit with FOX 2.0 Performance Series Shocks & 5" Block Kit (Part #BDS1532FS).

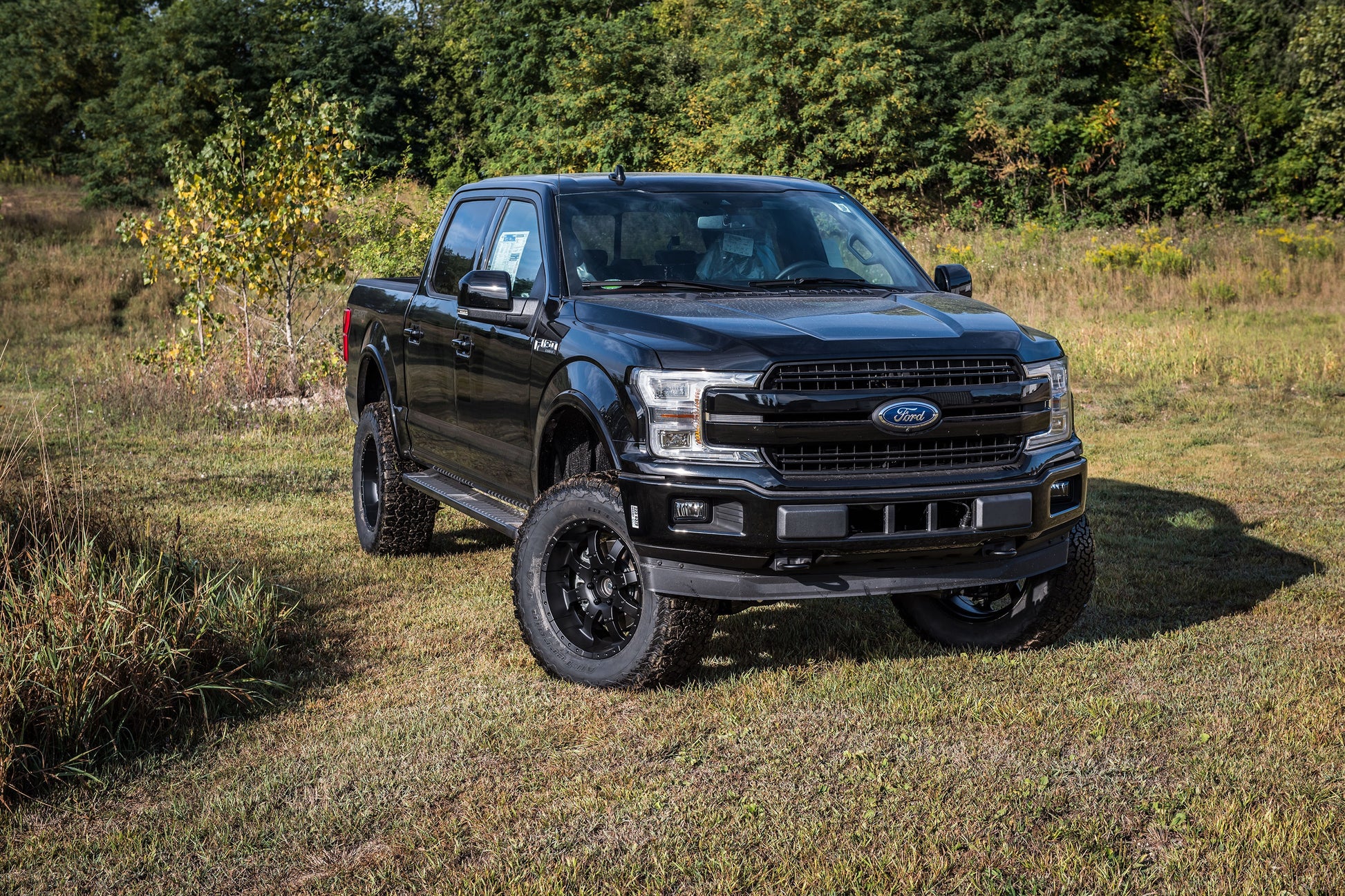

Take your 2015-2020 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance.

Fits:

• Ford:
• 2015-2020 F-150 4WD

Notes:

• The 4" blocks will net a level/tail LOW stance (#BDS1922). The 5" blocks will net a level/tail HIGH stance (#BDS1532).
• 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting tire to ensure proper clearance to BDS steering knuckle.

• 18" or larger diameter wheels required. Stock 17" and
• 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.

• Block kits replace factory 1-1/4" block.

• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406

• Will not fit HD models (7 lug).

Features:

• High clearance crossmembers improve strength and off-road capability

• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility

• Top mounted strut spacers to provide lift and install easily

• Differential skid plate for improved off-road protection

• Rear lift blocks and u-bolts to lift and level the stance


FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Crossmember

• Front Lift Height: 6"

• Rear Lift Method: Block

• Rear Lift Height: 5"

You can view and download the complete assembly instruction booklet for this kit here.
