BDS 17-19 FORD F-250,F-350,4WD,DIESEL,6" LIFT,4-LINK,LEAF SPRING,NITRO SHOCKS

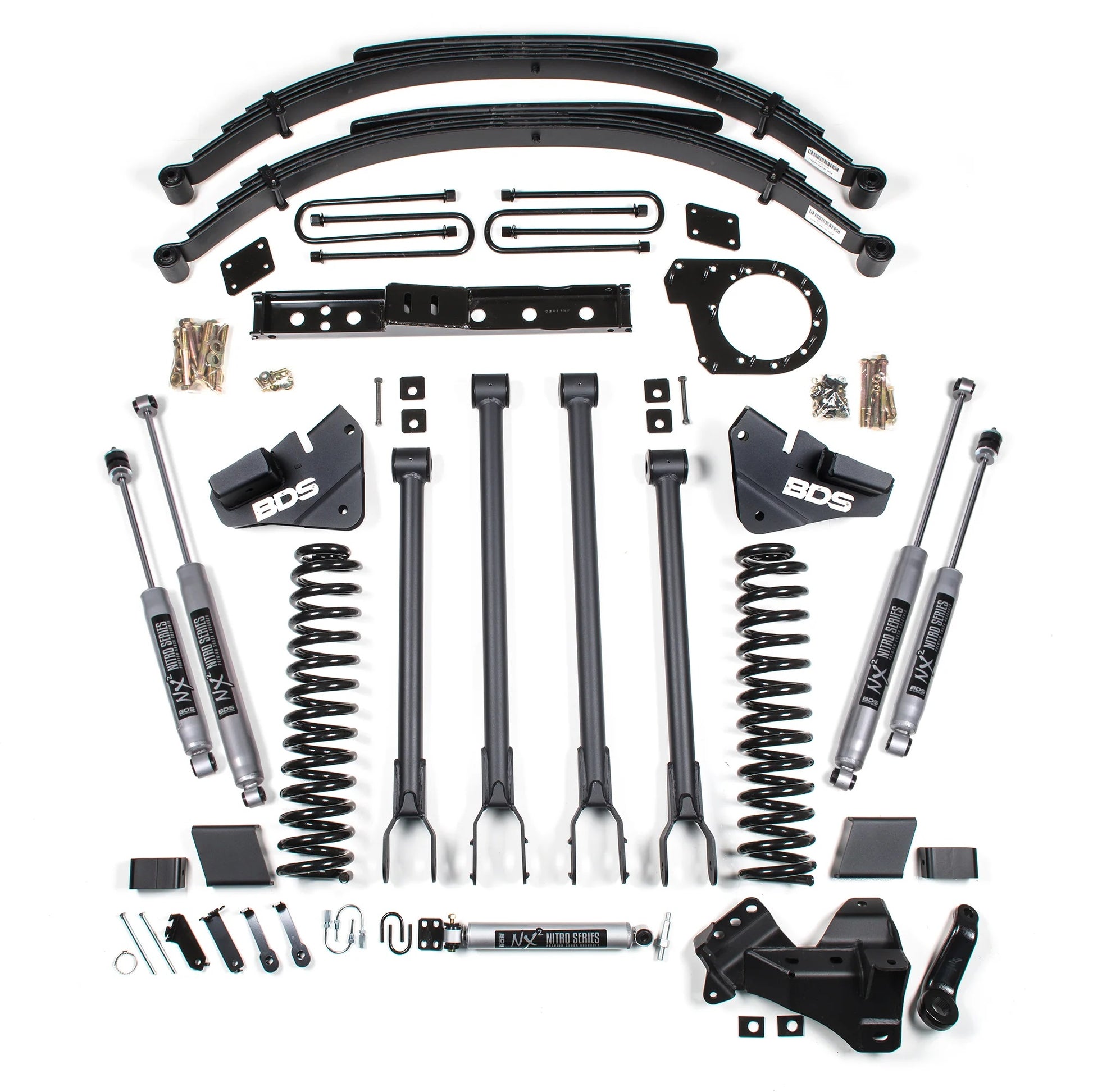

Brand New BDS Suspension 6" Lift Kit with Nitro Shocks, 4-Link, & Leaf Springs (Part #BDS1529H).

Take your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:
  • 2017-2019 F-250 Super Duty 4WD Diesel
  • 2017-2019 F-350 Super Duty 4WD Diesel

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  38 x 13.50 tires may require minor trimming.

• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main.
• Be sure to order the correct option when customizing your kit.

• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

• If your truck is equipped with a factory rear sway bar add: 123005

• The indexing ring has not been designed to work on manual shift transfer case models. Modification of
• the shift cable mount will be required.

• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 38 x 13.5 with 17 x 9 and 5 in. Backspace, 38 x 13.5 with 17 x 10 and 5 in. Backspace, or 38 x 13.5 with 20 x 10 and 5 in. Backspace

You can view and download the assembly instruction booklet here and here.
