BDS 17-19 FORD F-250,F-350,4WD,DIESEL,6" LIFT,FOX 2.5 COIL,BLOCK,FOX 2.0

BDS 17-19 FORD F-250,F-350,4WD,DIESEL,6" LIFT,FOX 2.5 COIL,BLOCK,FOX 2.0

STU BDS1528FPE

$5,368.45
$5,368.45
View full details

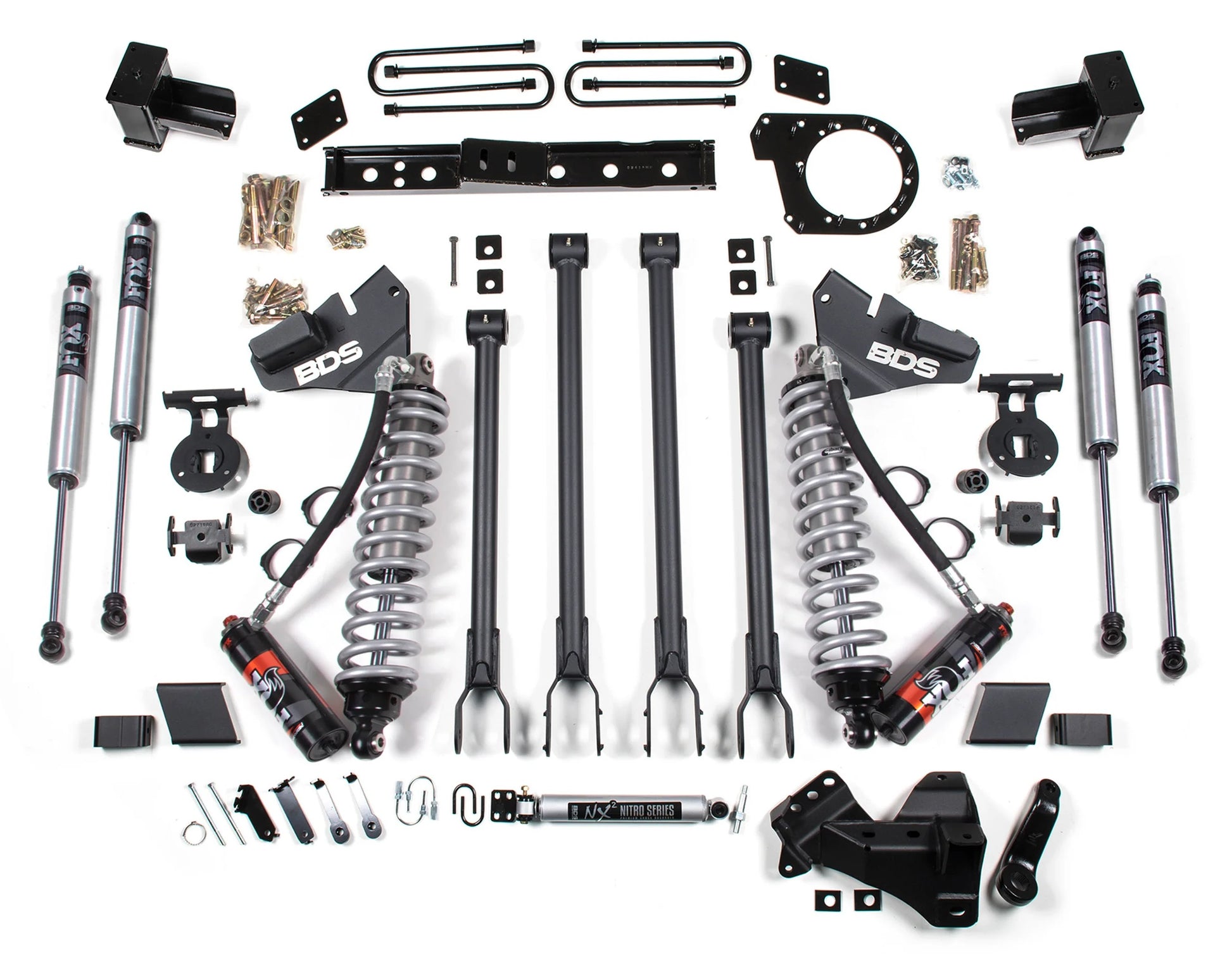

Brand New BDS Suspension 6" Lift Kit with Fox 2.5 Performance Elite Coilovers, 4-Link, Rear Fox 2.0 Performance Shocks, & Block Kit (Part #BDS1528FPE).

Raise the bar on your 2017-2019 Ford F250 and F350 Ford Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear the base kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel
    • 2017-2019 F-350 Super Duty 4WD Diesel

Notes:

  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
    38 x 13.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when ordering your kit.
  • The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  • If your truck is equipped with a factory rear sway bar add: BDS123808
  • The indexing ring has not been designed to work on manual shift transfer case models. Modification of
  • the shift cable mount will be required.
  • Fits SRW models only.
  • Recommended Tires & Wheels (Trimming may be required): 38 x 13.5 with 17 x 9 and 5 in. Backspace, 38 x 13.5 with 17 x 10 and 5 in. Backspace, or 38 x 13.5 with 20 x 10 and 5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here, here, here, and here.
