BDS 17-19 FORD F-250,F-350,4WD,DIESEL,6" LIFT,4-LINK,2-LEAF MAIN,FOX 2.0 SHOCKS

BDS 17-19 FORD F-250,F-350,4WD,DIESEL,6" LIFT,4-LINK,2-LEAF MAIN,FOX 2.0 SHOCKS

STU BDS1527FS

$3,217.45
$3,217.45
View full details

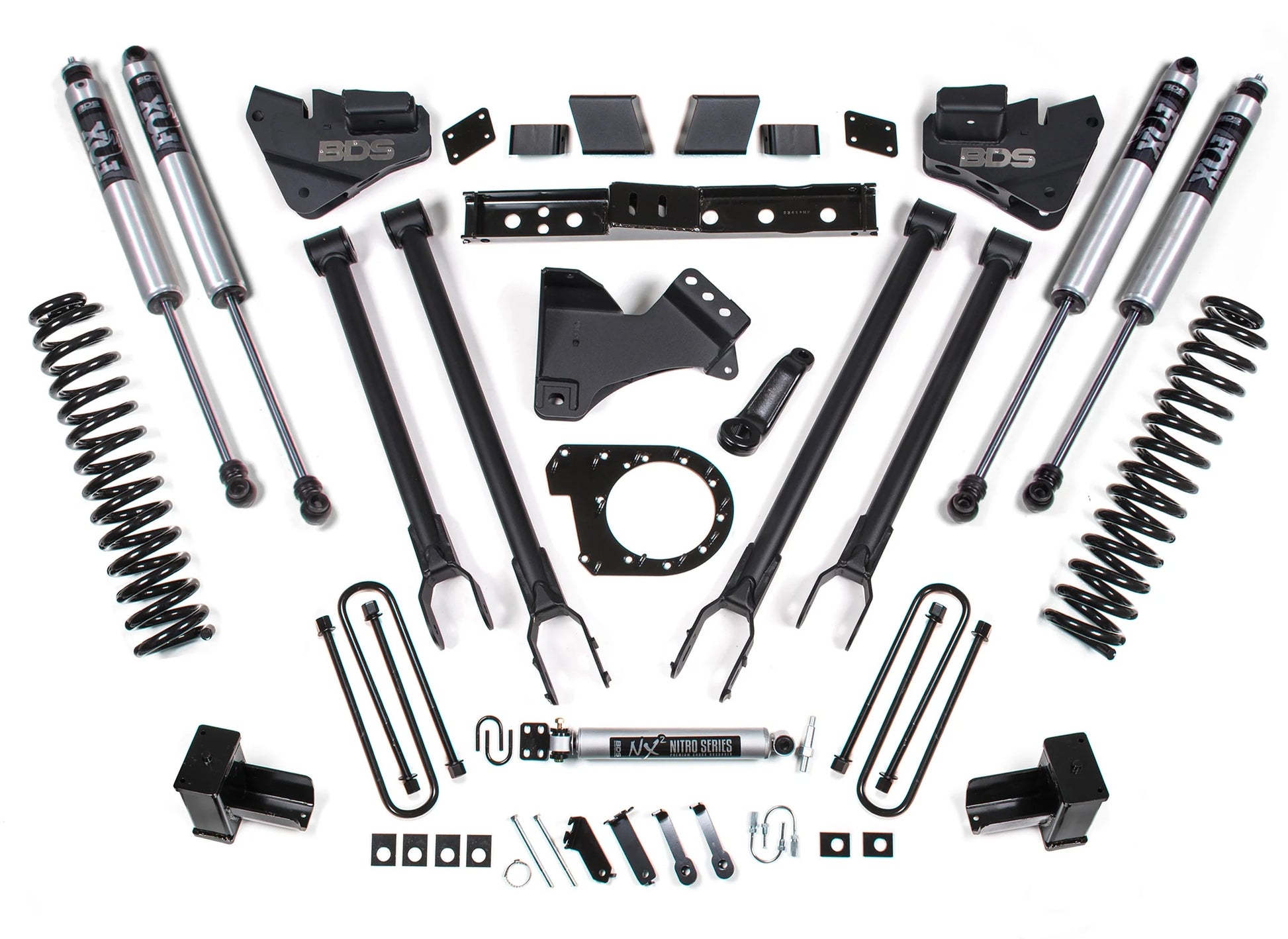

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Performance Shocks, 4-Link, & Block Kit (Part #BDS1527FS).

Take your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel with 2-Leaf Main
    • 2017-2019 F-350 Super Duty 4WD Diesel with 2-Leaf Main

Notes:

  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
    38 x 13.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when ordering your kit.
  • The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  • If your truck is equipped with a factory rear sway bar add: 123005
  • The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
  • Fits SRW models only.
  • Recommended Tires & Wheels (Trimming may be required): 38 x 13.5 with 17 x 9 and 5 in. Backspace, 38 x 13.5 with 17 x 10 and 5 in. Backspace, or 38 x 13.5 with 20 x 10 and 5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
